High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

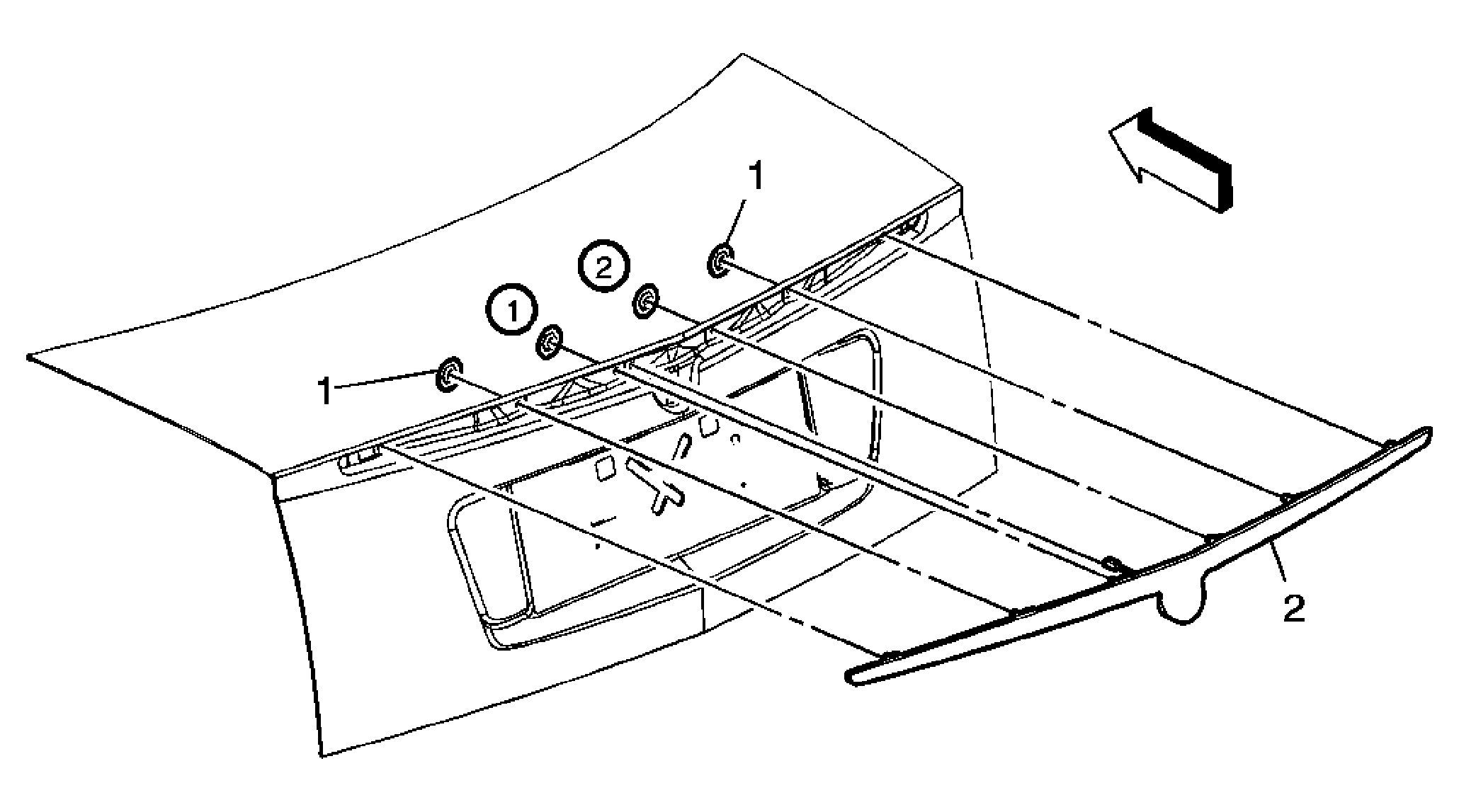

Fig 1: View Of Center High Mounted Stop Lamp & Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	High Mounted Stop Lamp Nut (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Center High Mounted Stop Lamp Tip: Disconnect the electrical connector prior to removing the lamp assembly from the rear compartment lid.
