Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Add refrigerant oil to the evaporator core. Refer to Refrigerant System Capacities .
Install the new evaporator core seals to evaporator.

Fig 1: Removing/Installing Evaporator Sensor And Harness

GM802751

Courtesy of GENERAL MOTORS CORP.

Install the evaporator sensor and harness to the evaporator.

Fig 2: View Of Evaporator Core

GM1378986

Courtesy of GENERAL MOTORS CORP.

Install the evaporator core.

Fig 3: HVAC Module

GM1378984

Courtesy of GENERAL MOTORS CORP.

Connect the HVAC module case halves together.

Fig 4: View Of HVAC Module Wiring Harness & Evaporator Core Temperature Sensor Connector

GM1379003

Courtesy of GENERAL MOTORS CORP.

Reposition and connect the HVAC Module wiring harness (1).

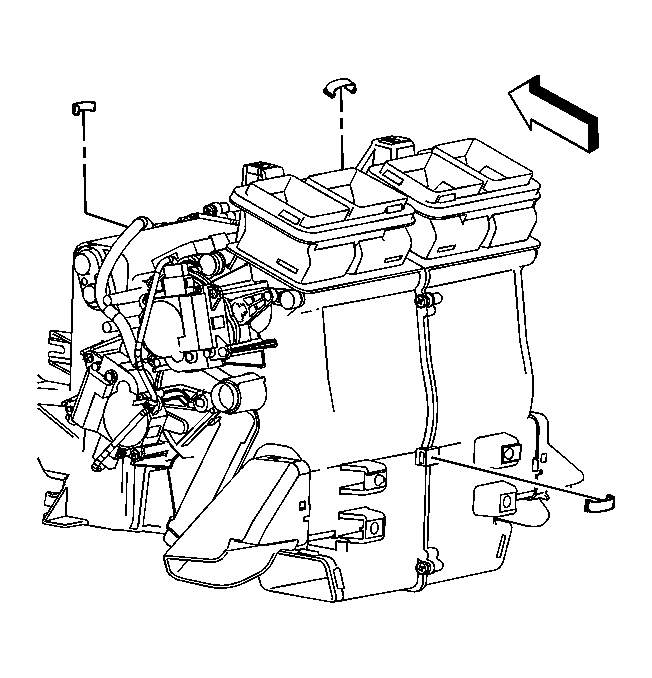

Fig 5: View Of HVAC Module Retainer Clips

GM1379007

Courtesy of GENERAL MOTORS CORP.

Install the HVAC module retainer clips.

Fig 6: View Of HVAC Module Case Screws

GM1379002

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the HVAC module case screws.
Tighten: Tighten the screws to 1 N.m (9 lb in).
Install the right side air temperature actuator and linkage. Refer to Air Temperature Actuator Replacement - Right Side .
Install the heater core. Refer to Heater Core Replacement .
Reconnect all associated wiring connections attached to the HVAC module.
Install the HVAC module. Refer to HVAC Module Assembly Replacement .
