Installation Procedure

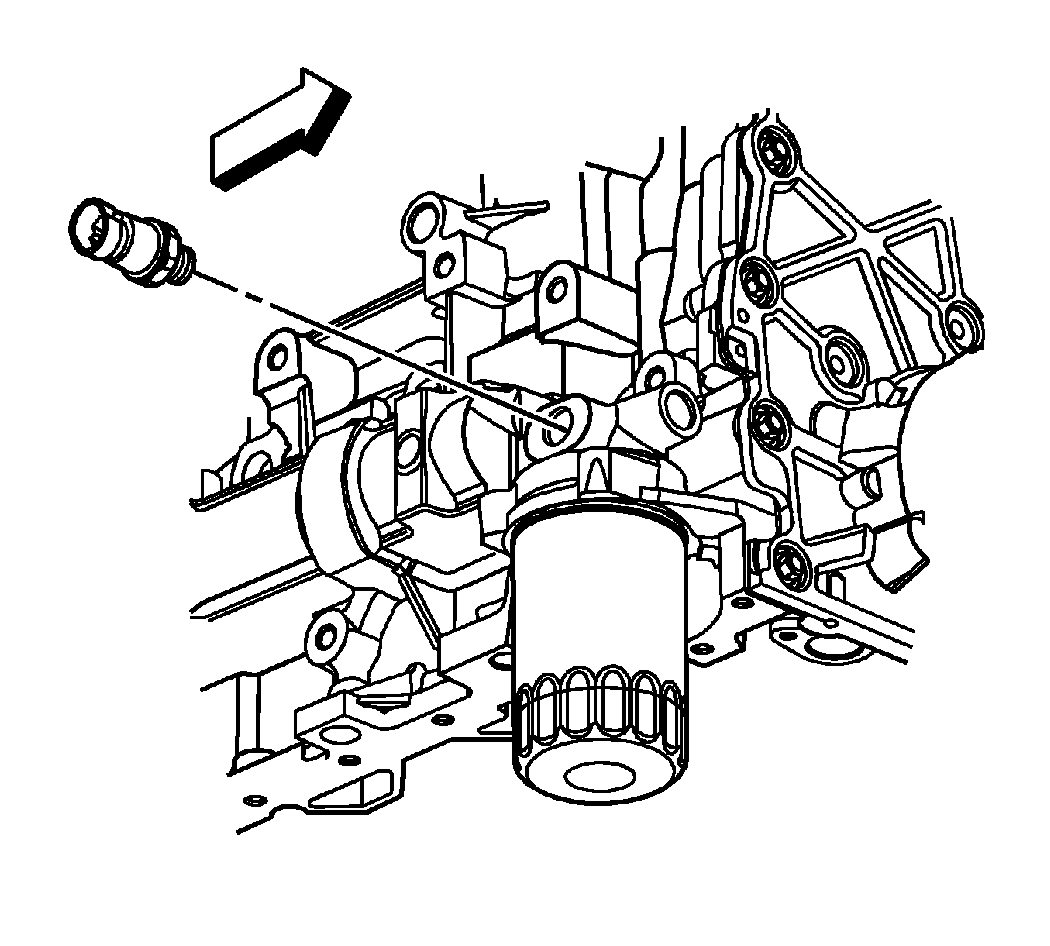

Fig 1: Engine Oil Pressure Switch

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Component Fastener Tightening Notice .

Install the engine oil pressure switch.
Tighten: Tighten the switch to 20 N.m (15 lb ft).

Fig 2: Oil Pressure Switch Engine Wiring Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the oil pressure switch electrical connector (1).
Install the engine shield. Refer to Engine Shield Replacement .
