Power Seat Switch Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

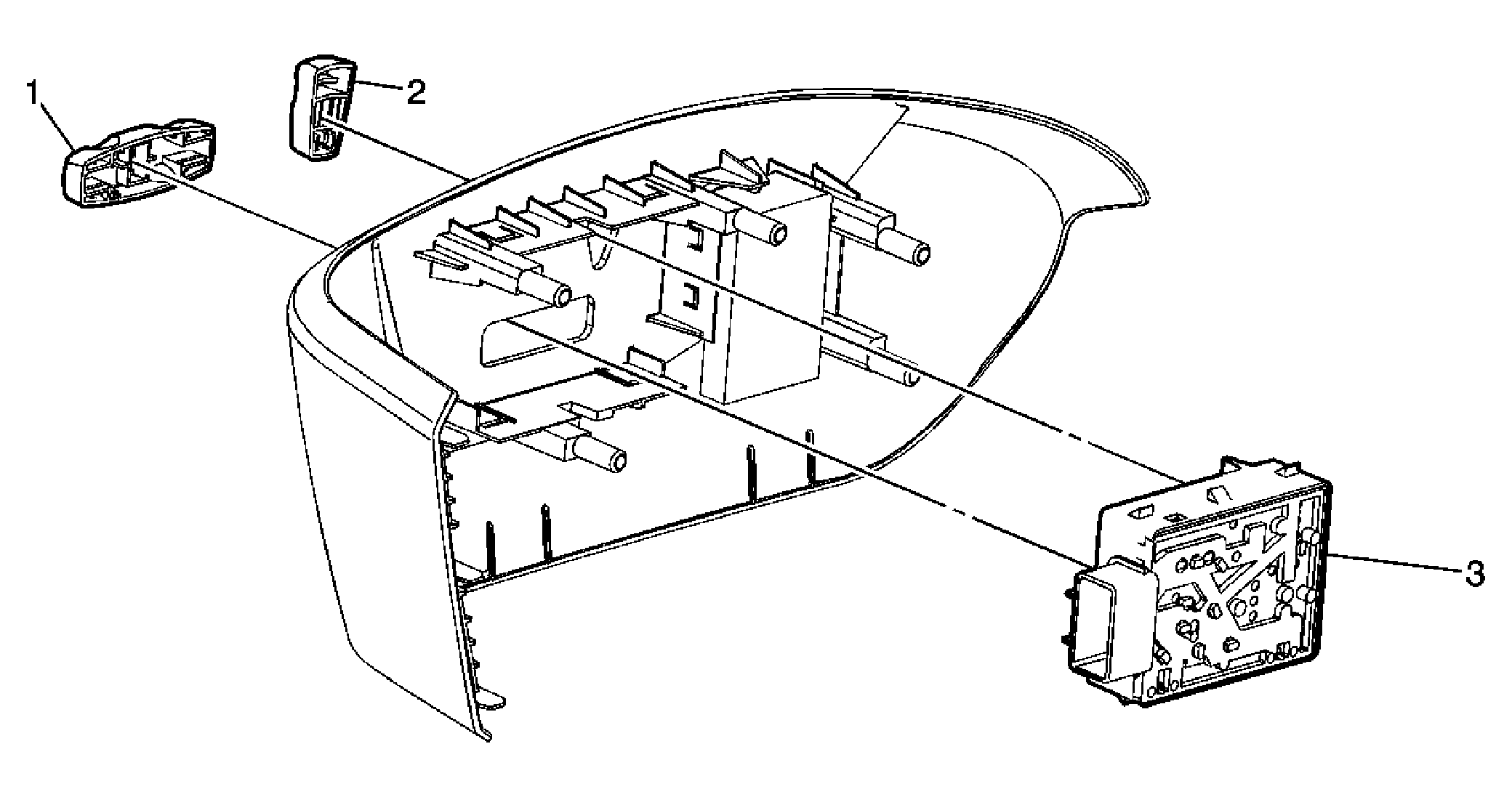

Fig 1: View of Power Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the seat adjuster switch bezel. Refer to Driver or Passenger Seat Adjuster Switch Bezel Replacement .
1	Front Seat Adjuster Switch Knob Tip: Pull the knob away from the seat switch bezel to remove.
2	Front Seat Power Lumbar Switch Knob Tip: Pull the knob away from the seat switch bezel to remove.
3	Front Seat Adjuster Switch Tip: Use a small flat bladed tool to release the adjuster switch from the seat switch bezel.
