Control Valve Body Assembly Assemble

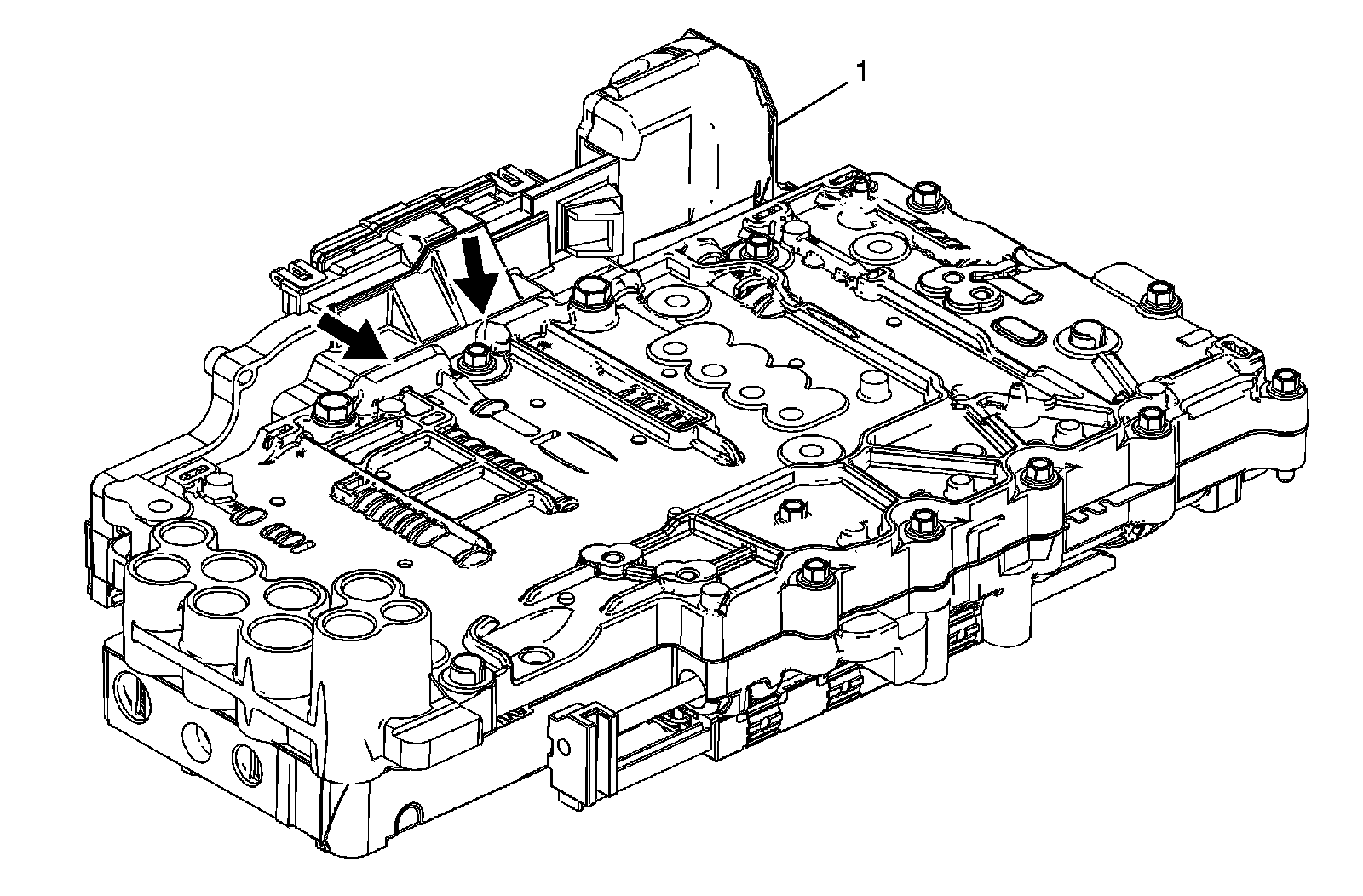

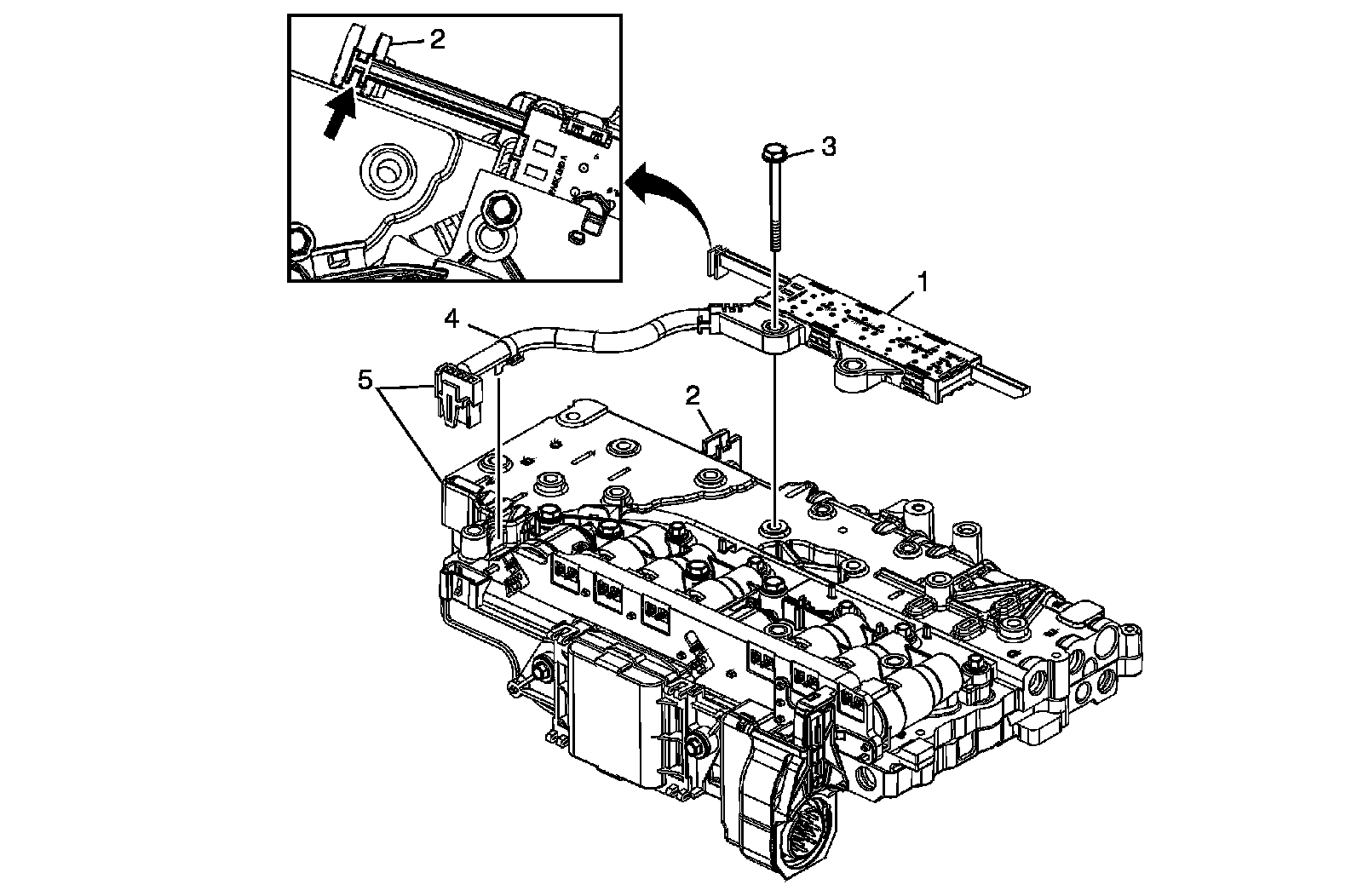

Control Valve Body Assembly Assemble

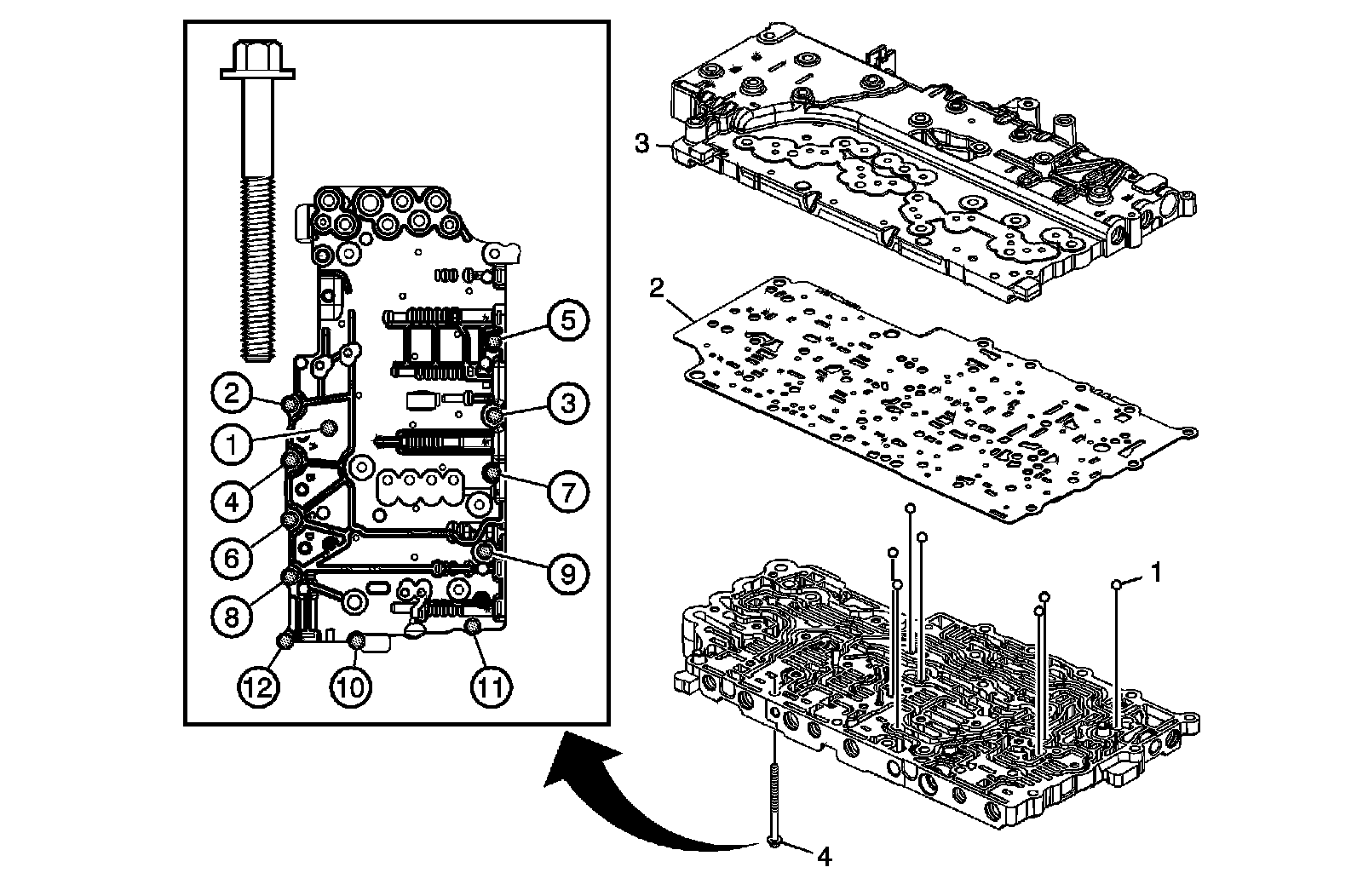

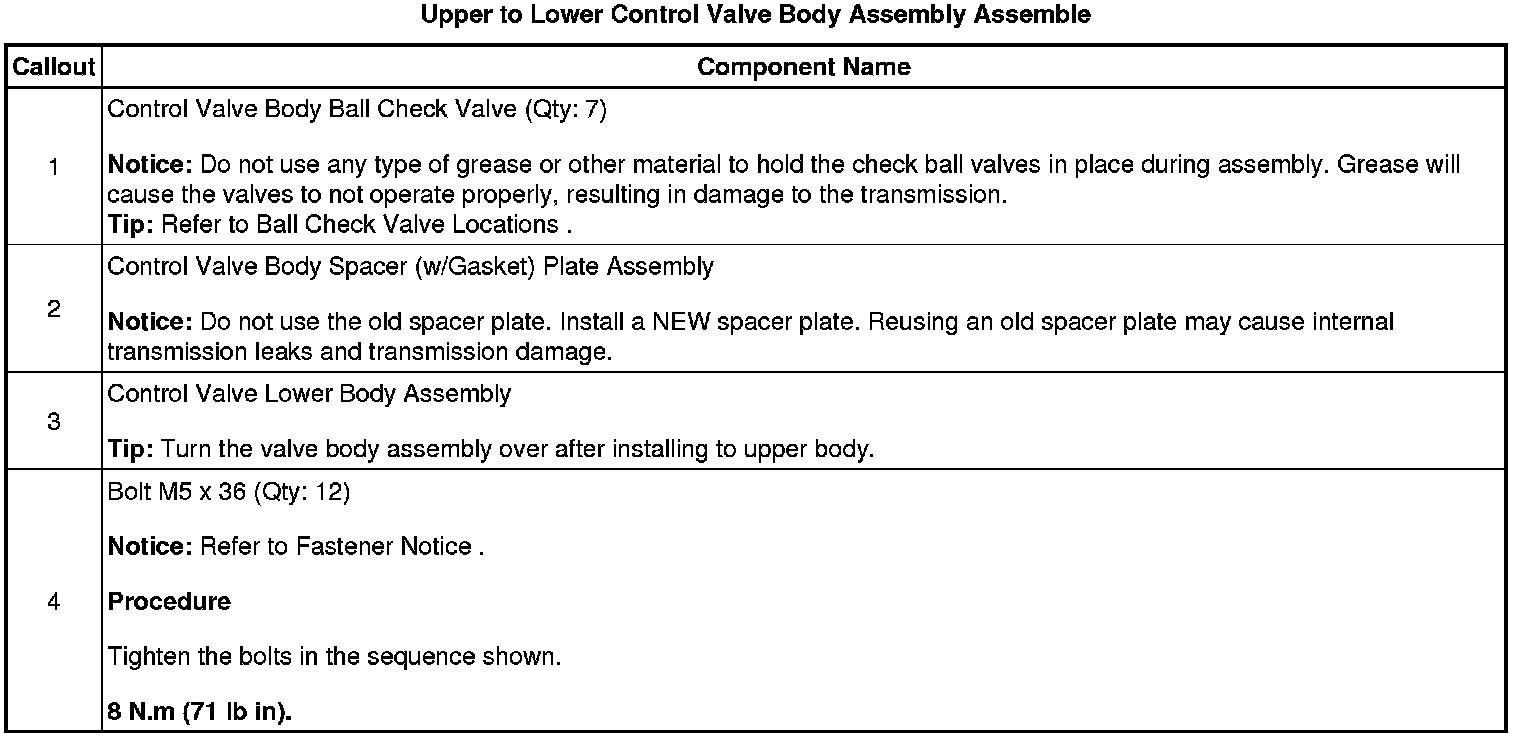

Upper to Lower Control Valve Body Assembly Assemble

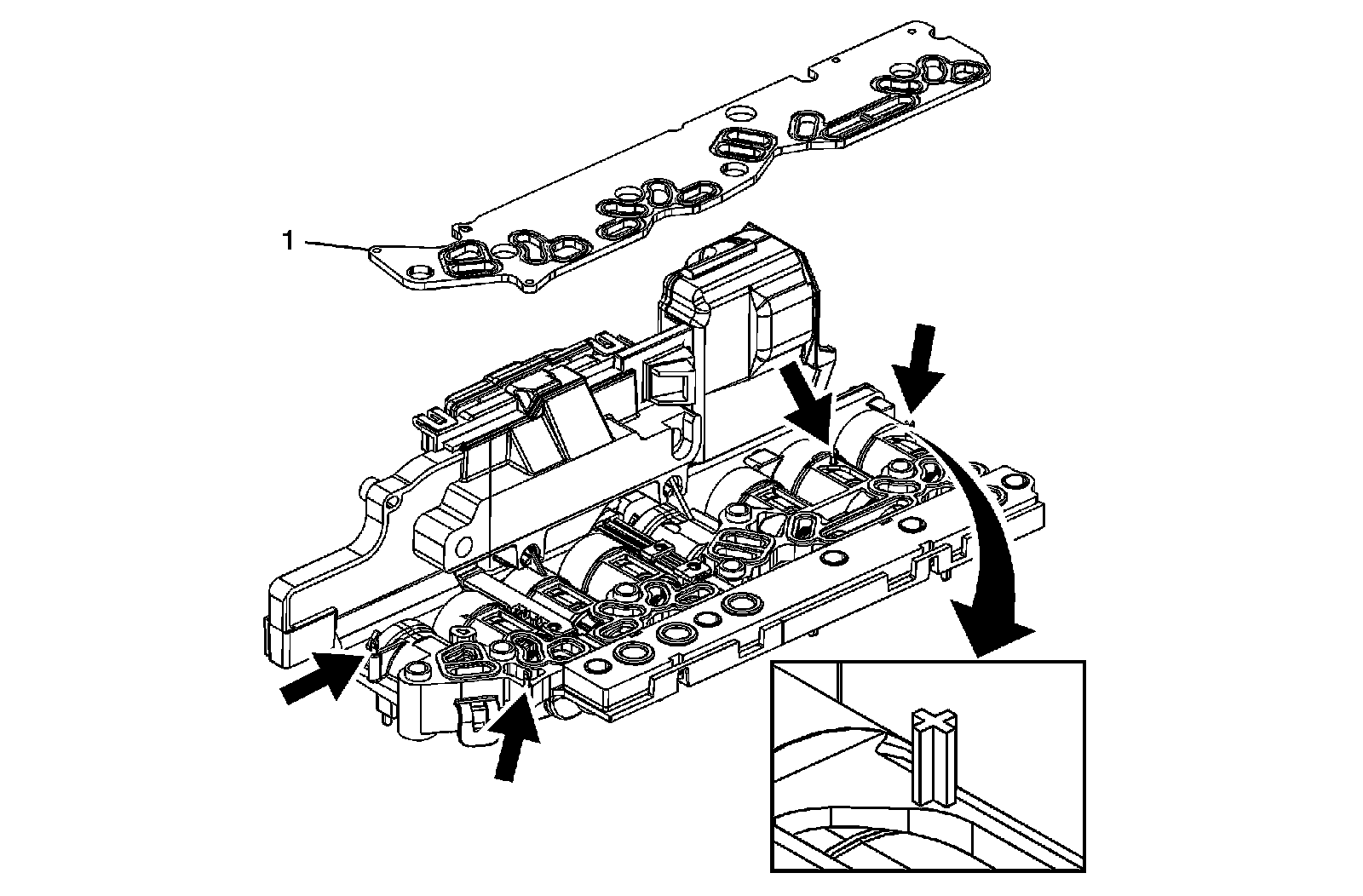

Filter Plate Installation

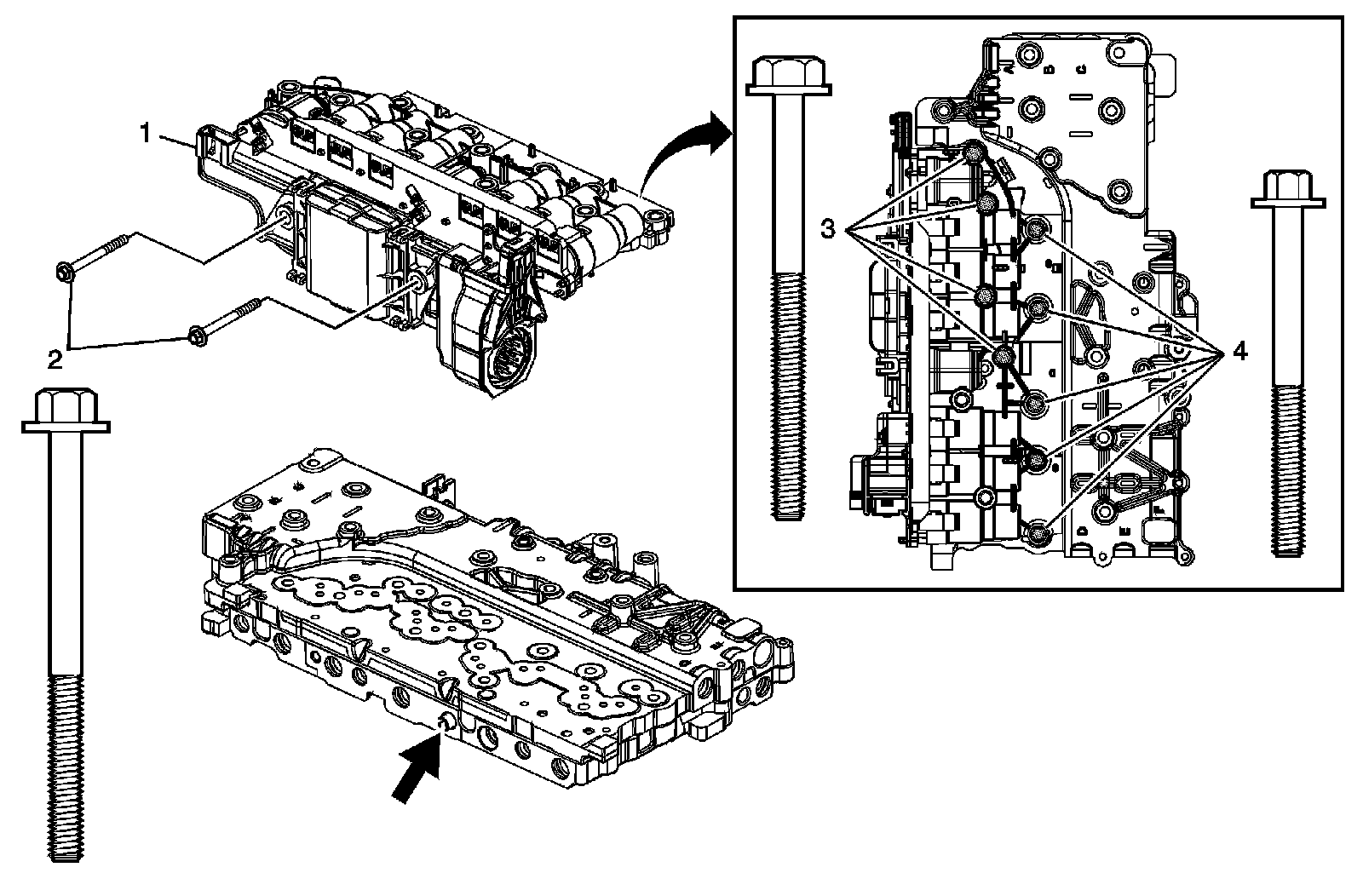

Control Solenoid Valve Assembly Installation










Manual Shift Shaft Position Switch Installation

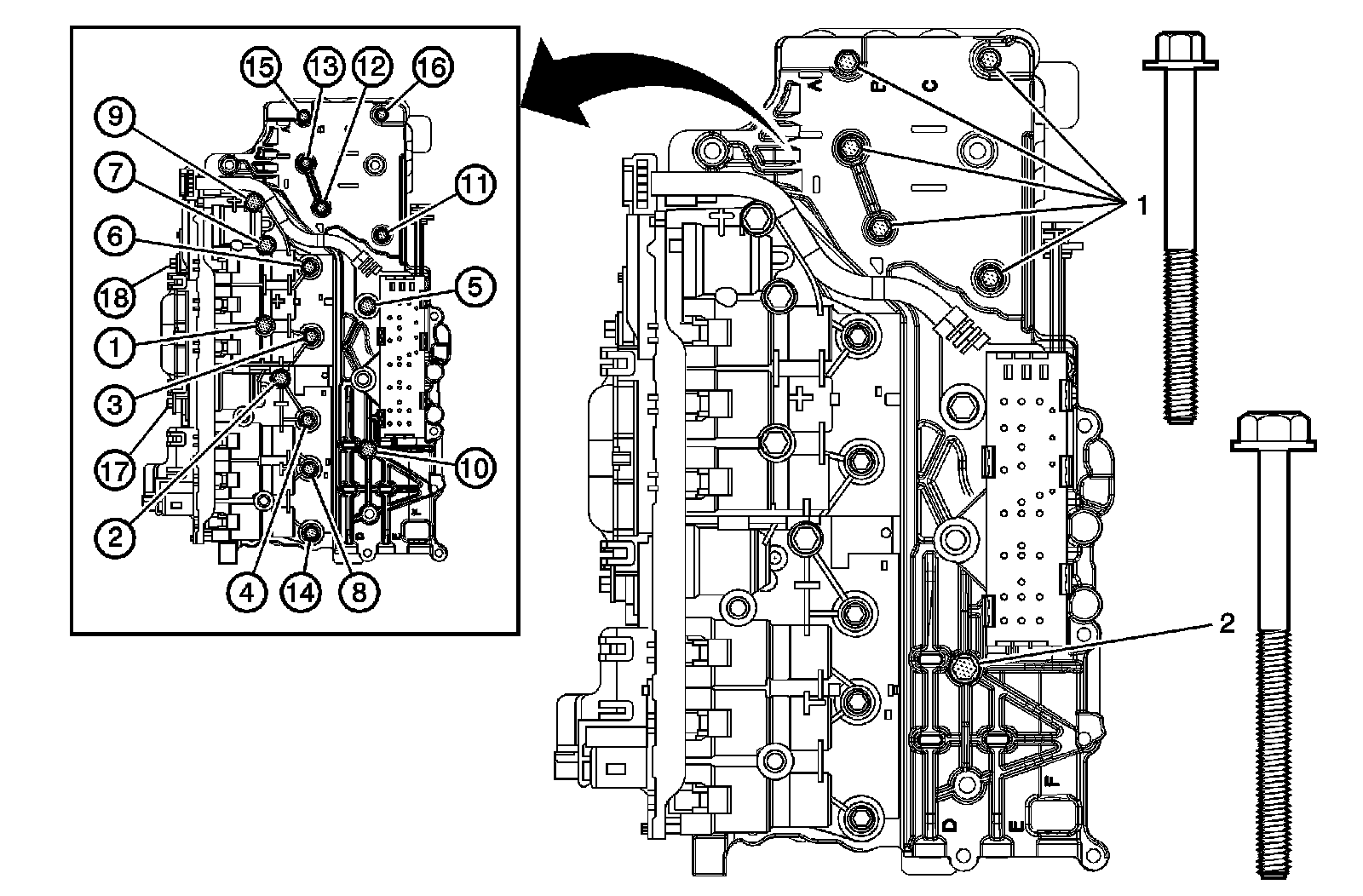

Valve Body, Control Solenoid Torque Sequence










Control Solenoid Valve Assembly Contact Gap Inspection

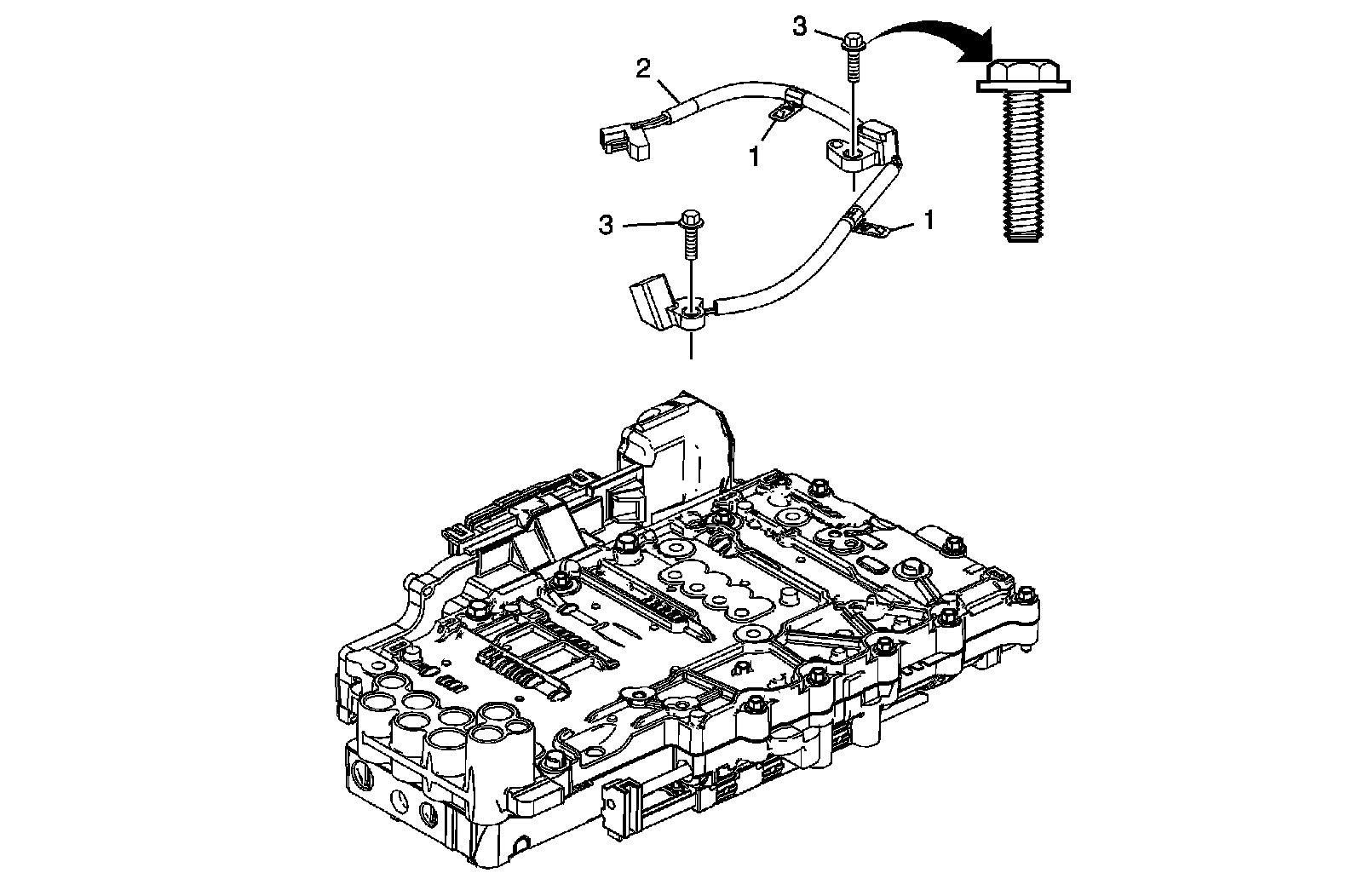

Input and Output Speed Sensor Assembly Installation
