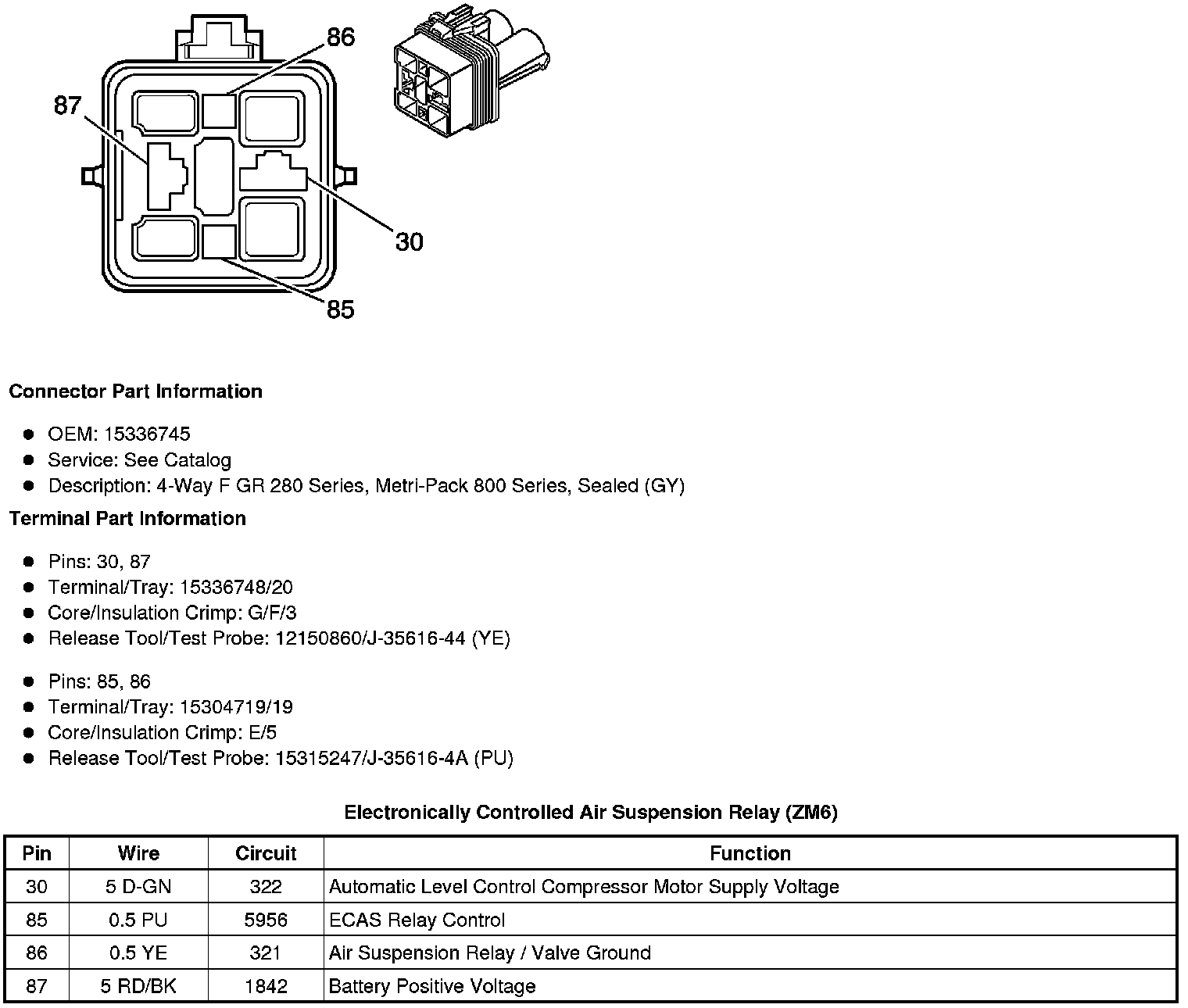

Suspension Main Relay
Component Connector End Views
Electronically Controlled Air Suspension Relay (ZM6)
