Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ride Height Sensor, Suspension Control
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

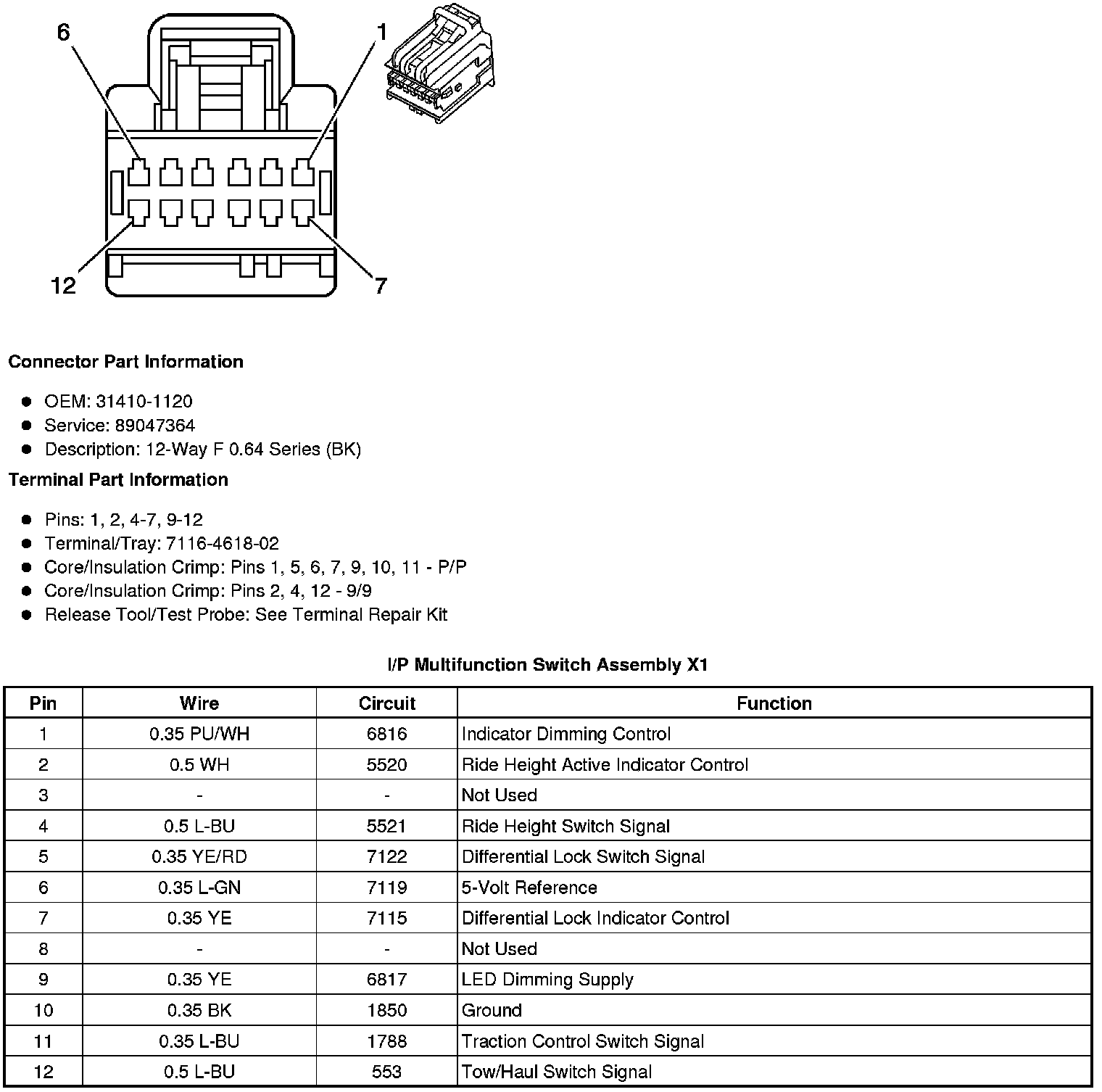

Ride Height Sensor, Suspension Control



Component Connector End Views

I/P Multifunction Switch Assembly X1
