Wipers and Washers



Component Connector End Views

Rear Window Wiper/Washer Module (SUV)





Rear Wiper/Washer Switch (SUV)

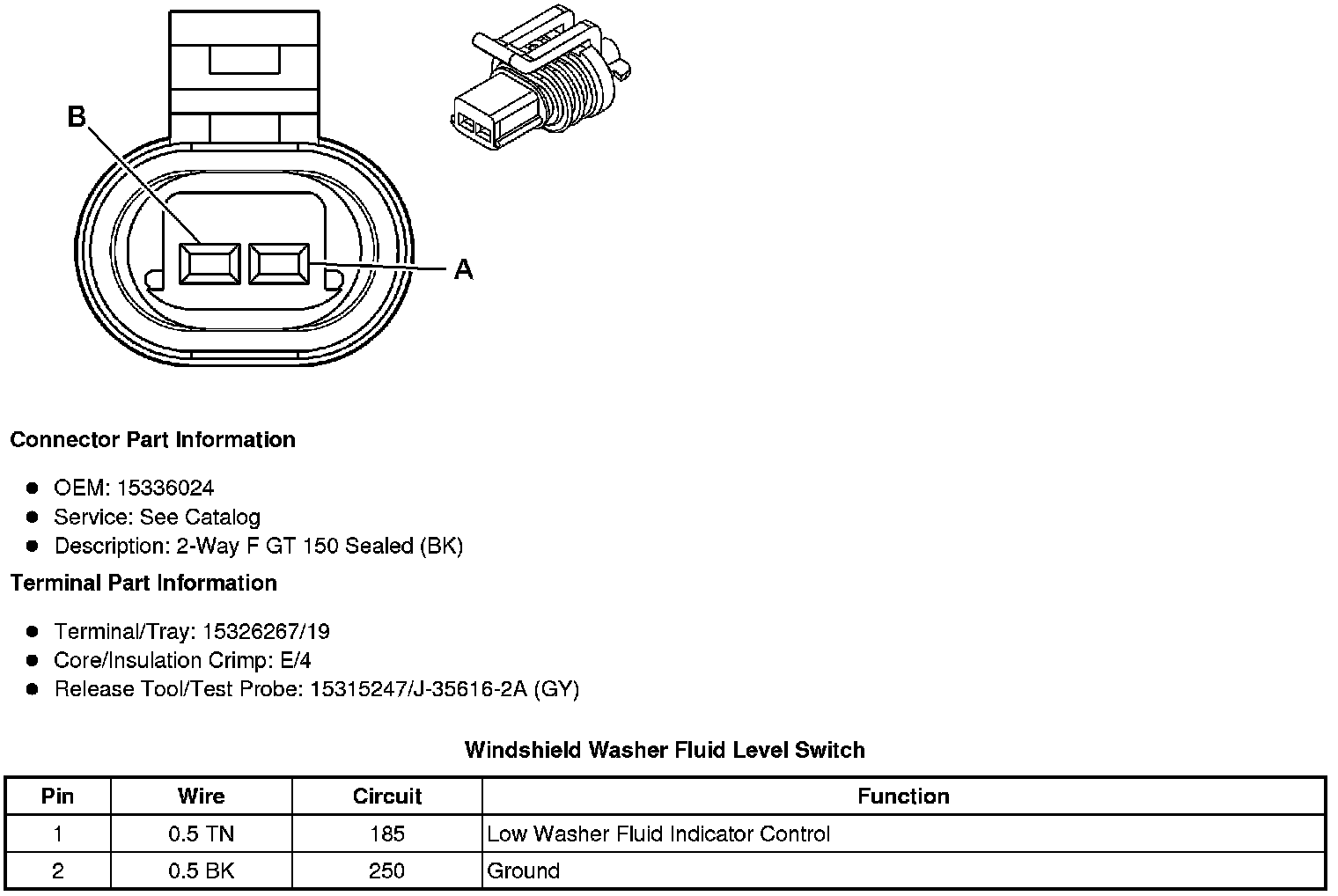

Windshield Washer Fluid Level Switch





Windshield Washer Fluid Pump





Windshield Washer Solvent Heater X1

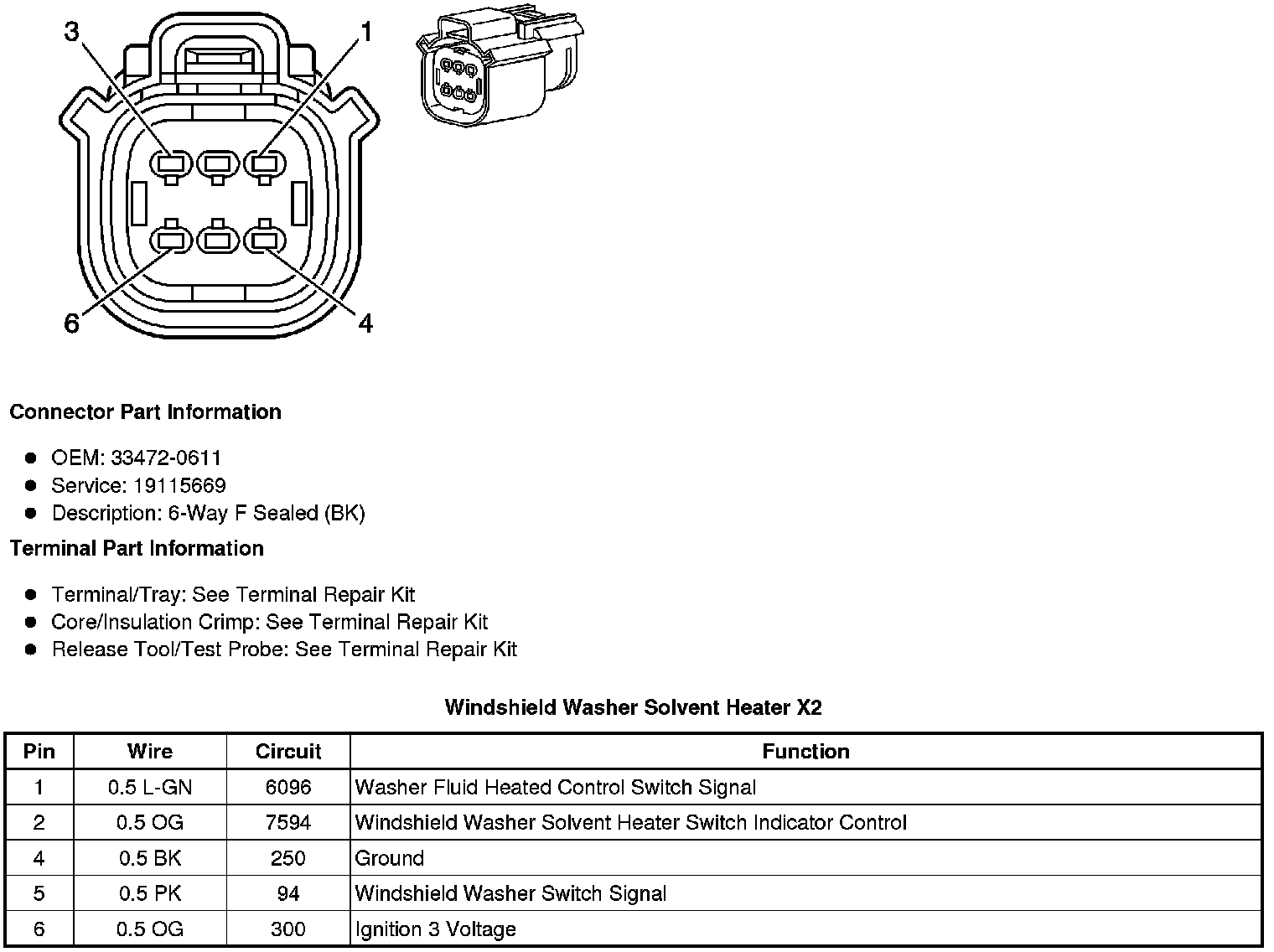

Windshield Washer Solvent Heater X2





Windshield Wiper Motor
