Removal Procedure

  1. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive) or Driver Knee Bolster Replacement (Right Hand Drive) .

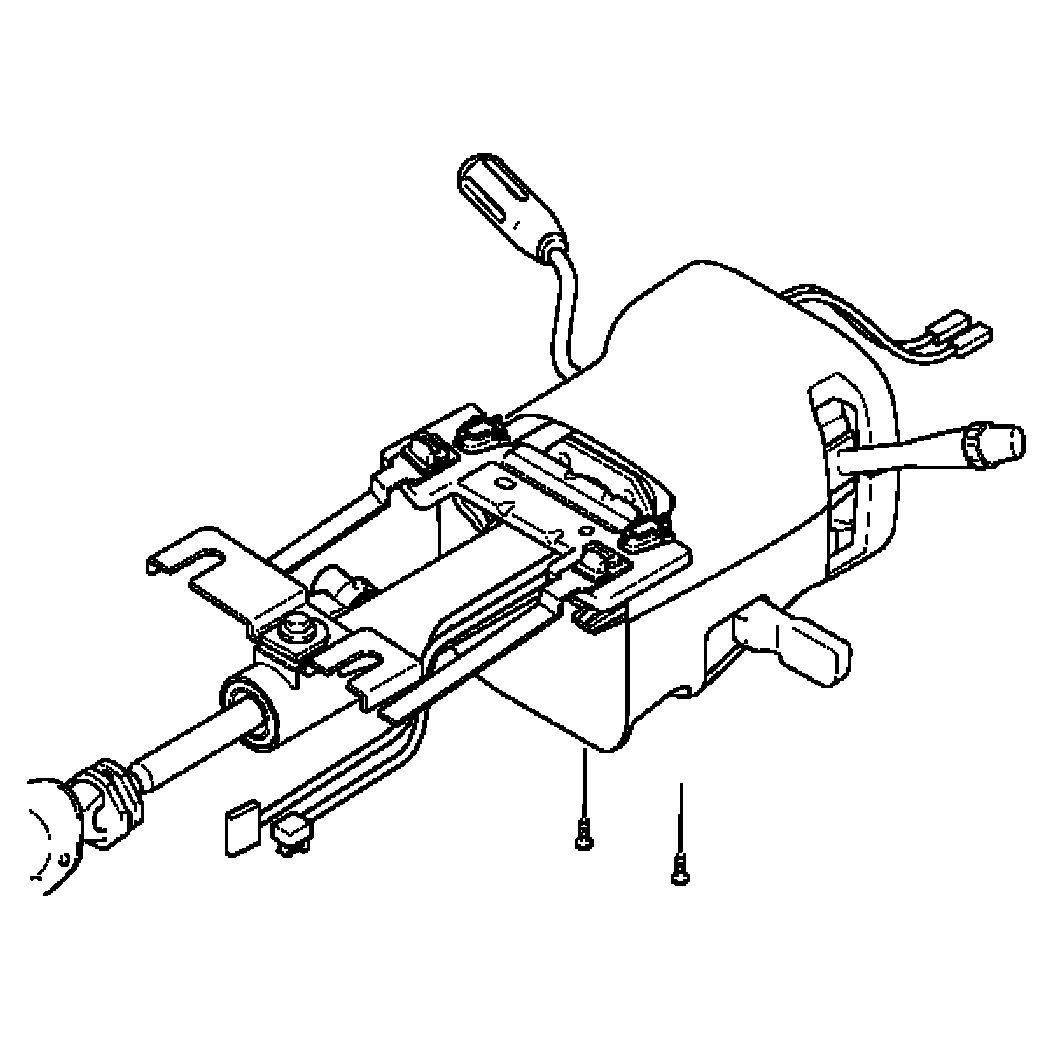

    2. Fig 1: View Of Shoulder Tapping Screws
    GM1492299Courtesy of GENERAL MOTORS CORP.
  2. Remove the lower steering column trim cover bolts.
    3. Fig 2: View Of Lower Trim Cover At Upper Trim Cover
    GM723623Courtesy of GENERAL MOTORS CORP.
  3. Gently unsnap the upper the upper and lower steering column trim covers and remove them.
