Engine Electrical Component Views

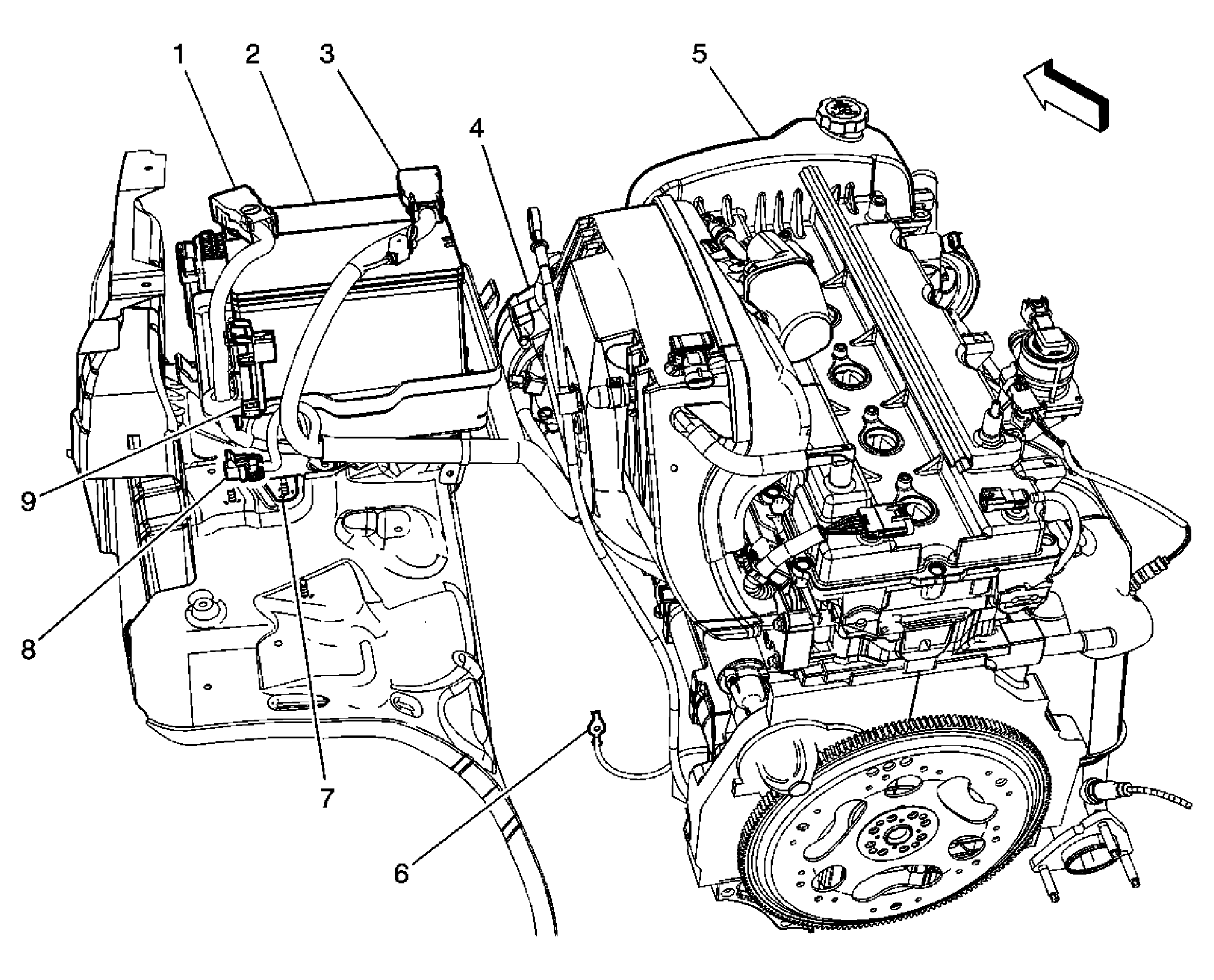

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Negative Battery Cable |
| 2 |
Battery |
| 3 |
Positive Battery Cable |
| 4 |
Generator |
| 5 |
Engine-LRR |
| 6 |
G120 |
| 7 |
G100 |
| 8 |
C130 (UE1) |
| 9 |
Generator Control Module |

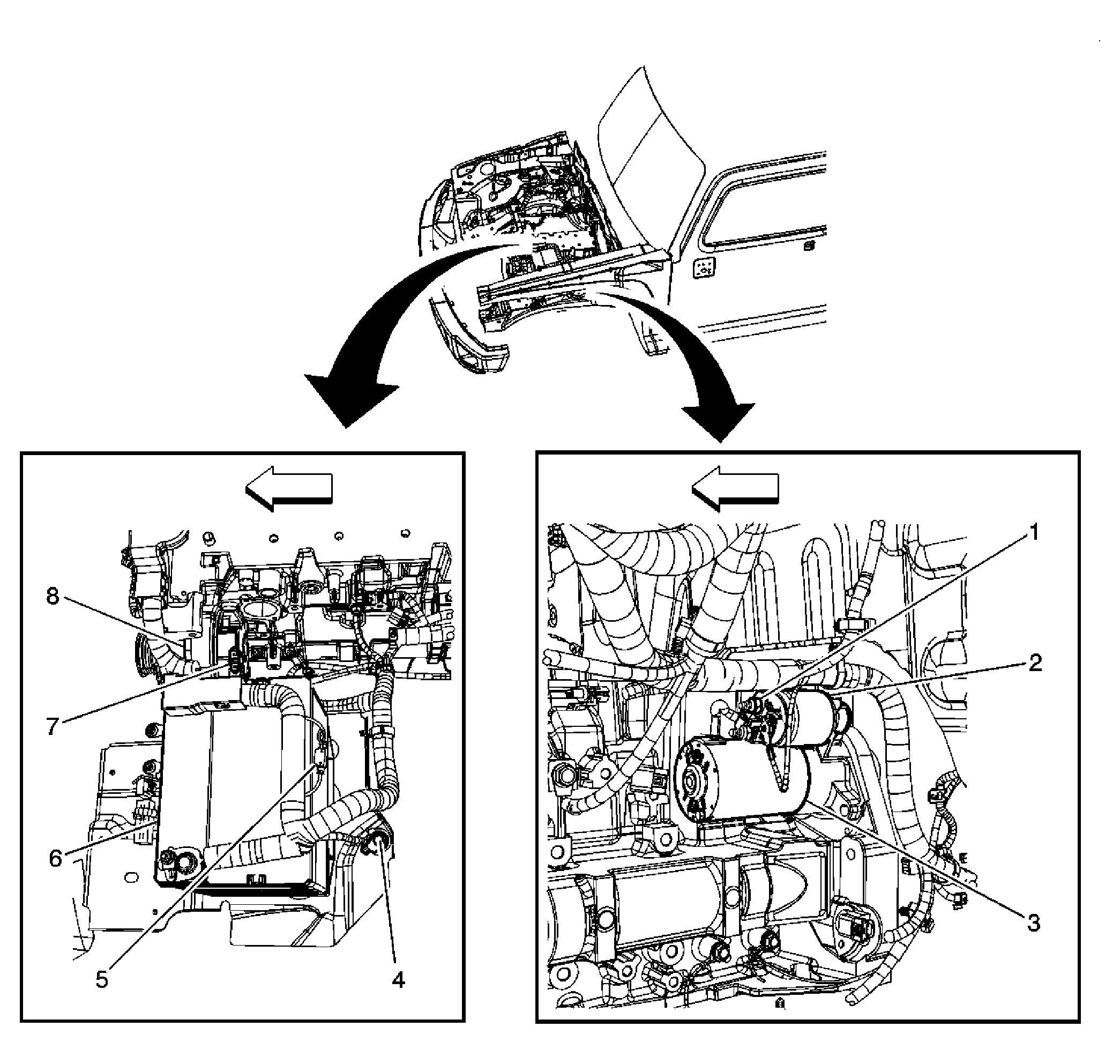

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Battery Positive Cable |
| 2 |
Starter Solenoid |
| 3 |
Starter Motor |
| 4 |
G100 |
| 5 |
OnStar Fuse |
| 6 |
Battery |
| 7 |
Generator Connector |
| 8 |
Generator |

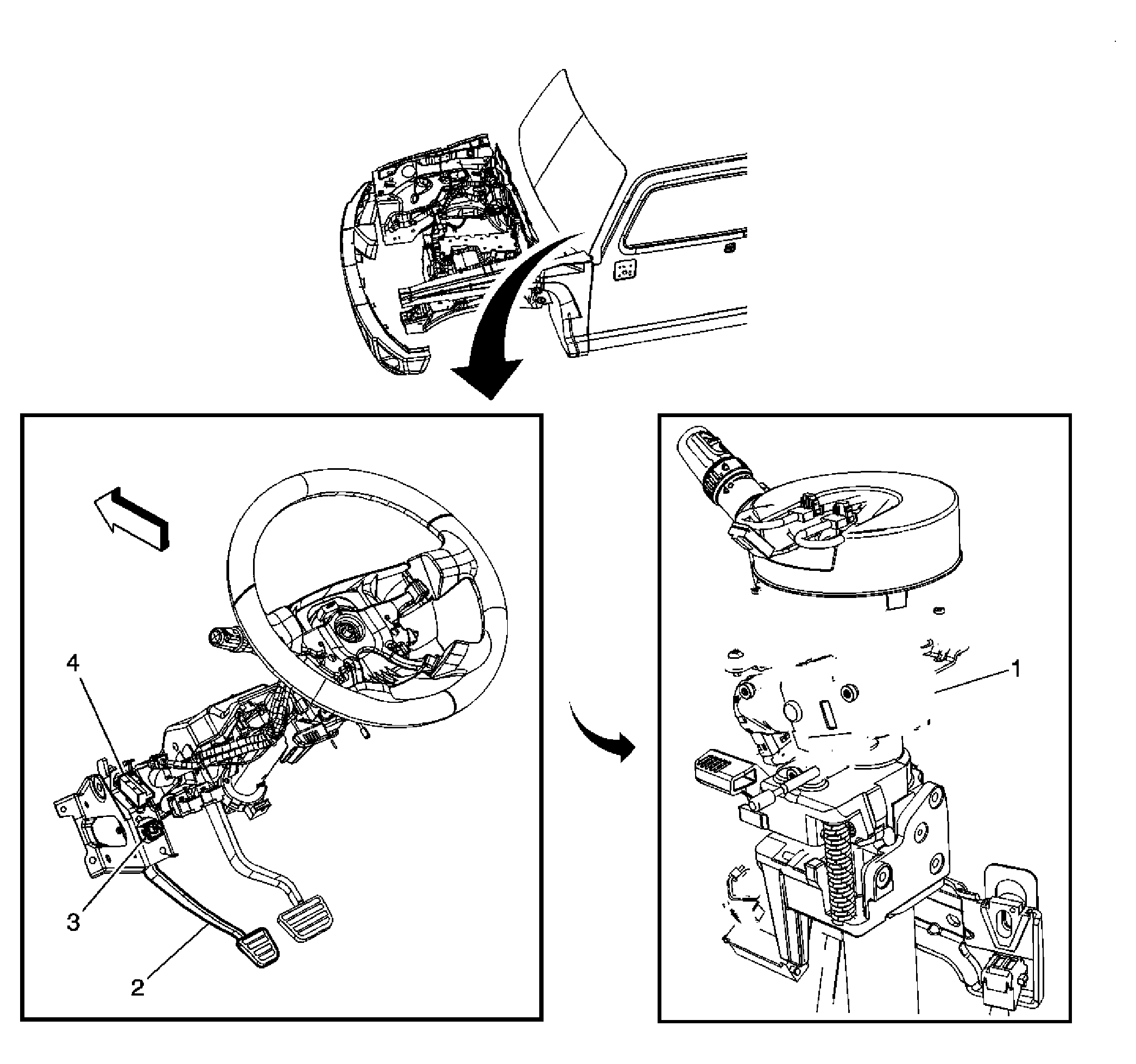

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ignition Switch |
| 2 |
Clutch Pedal (MA5) |
| 3 |
Clutch Release Switch (MA5) |
| 4 |
Clutch Start Switch (MA5) |
