Remote Function Schematics

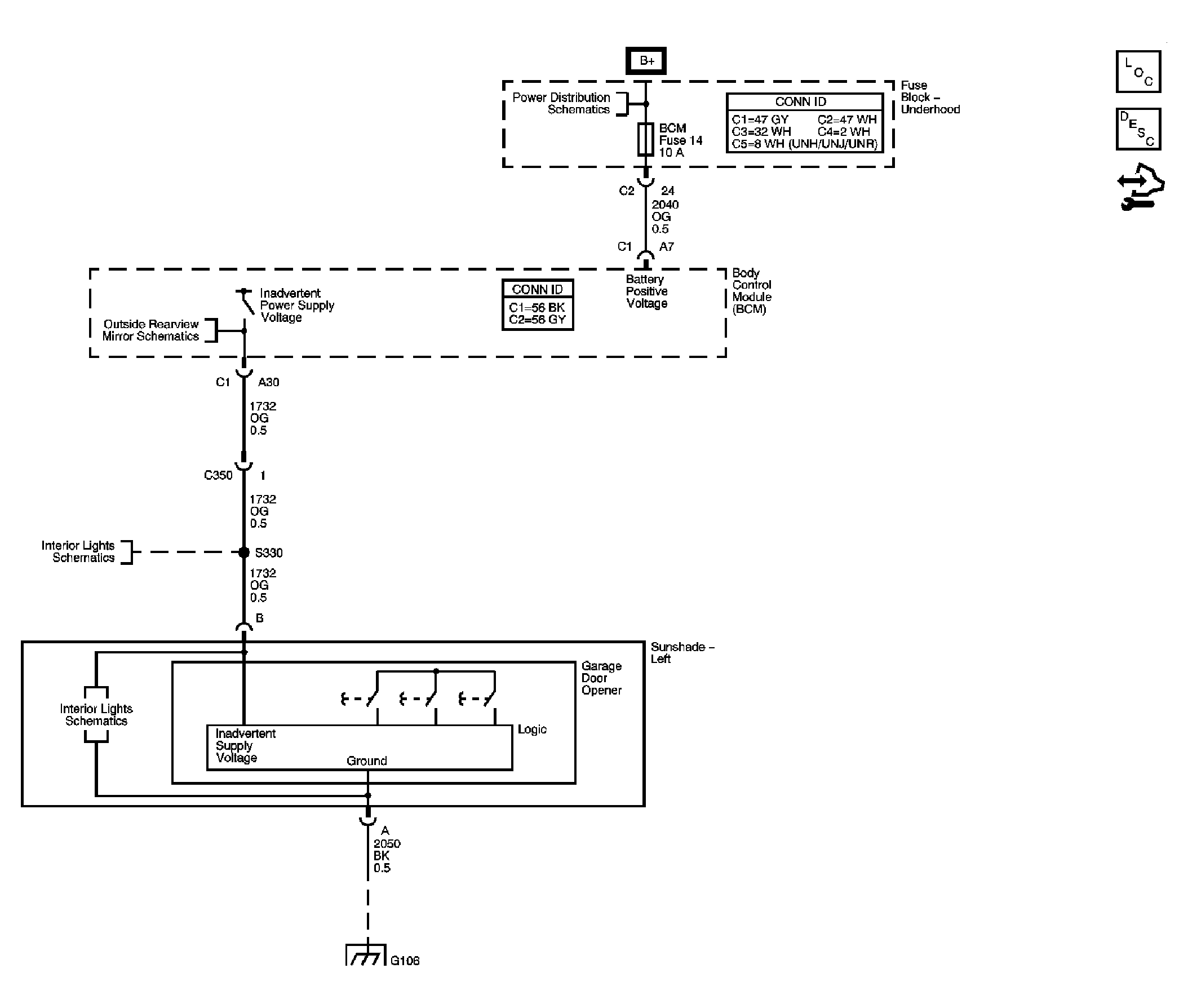

Fig 1: Garage Door Opener Schematic
GM1778128Courtesy of GENERAL MOTORS CORP.
Fig 2: Keyless Entry Schematic
GM1778453Courtesy of GENERAL MOTORS CORP.
