Fluid Pan: Specifications





Fluid Pan

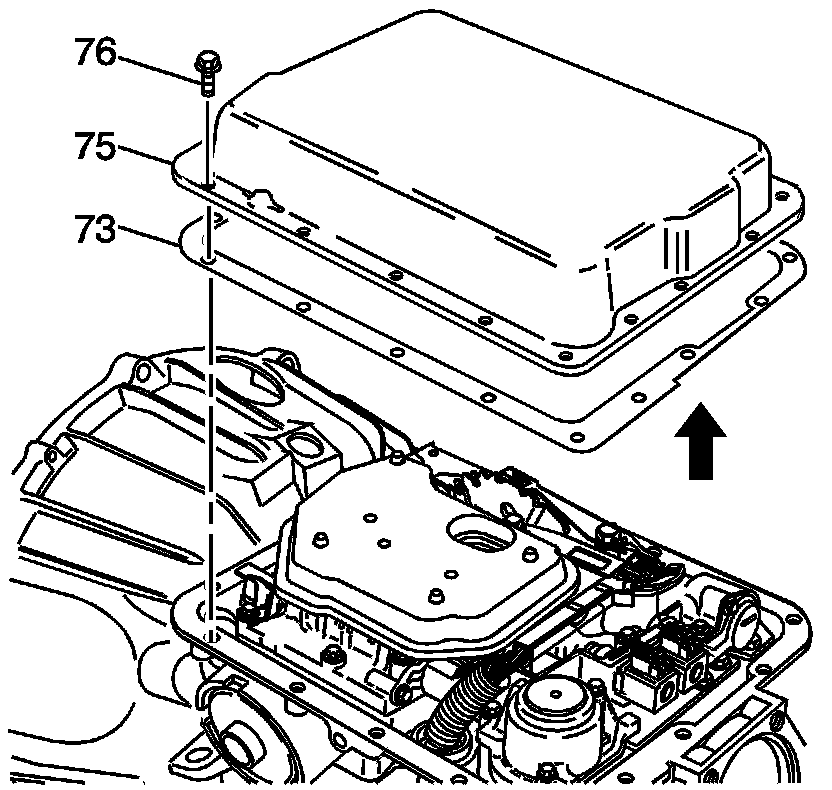

Install all of the transmission oil pan screws (76).
Tighten the screws to 16 N.m (11.8 lb ft).
