G100



Power and Grounding Component Views

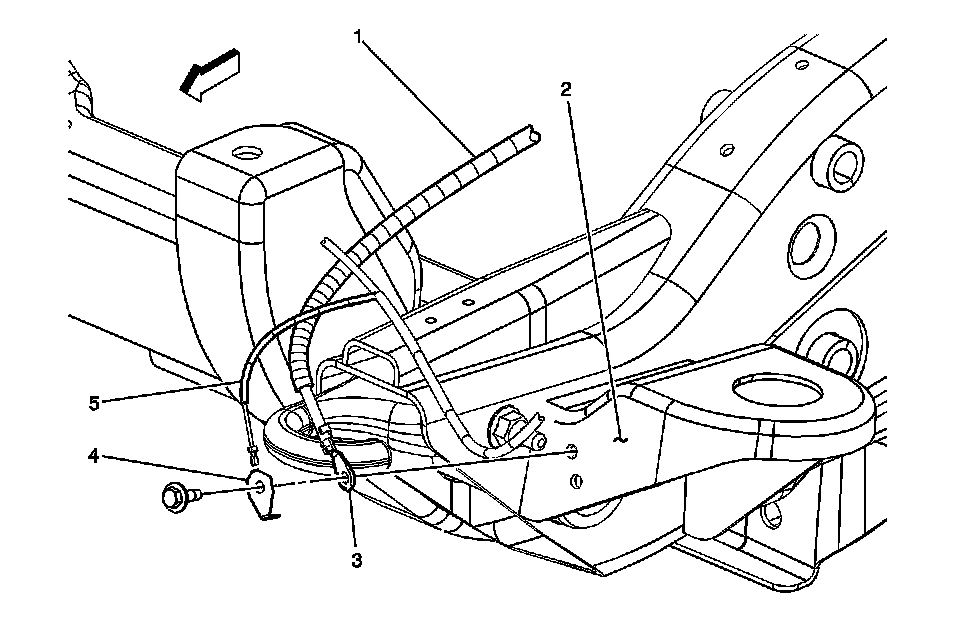

G100




1 - Negative Battery Cable
2 - Left Front Frame Rail
3 - G100-Negative Battery cable
4 - G100-Forward Lamp Harness
5 - Forward Lamp Harness
