Wheel Speed Sensor Replacement - Front

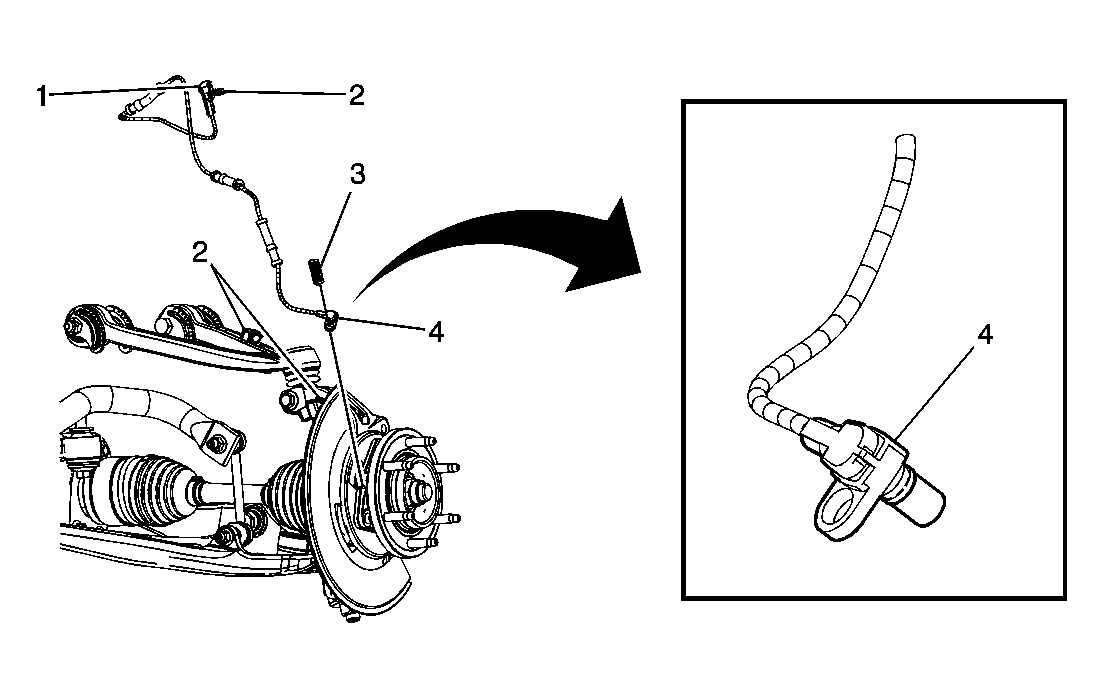

Fig 1: Wheel Speed Sensor Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the left front brake caliper assembly. Refer to Brake Caliper Replacement - Front . Remove the brake rotor. Refer to Brake Rotor Replacement - Front .
1	Connector, Front Wheel Speed Sensor Electrical
2	Clips, Front Wheel Speed Sensor Wiring Harness Retaining
3	Bolt, Retaining Front Wheel Speed Sensor
4	Sensor, Front Wheel Speed Tip: Note the routing of the speed sensor wiring harness. Tighten: 18 N.m (13 lb ft)
