Power Seat Motor

Lumbar Pump Motor - Driver(With RPO Code AG1):



Lumbar Pump Motor - Passenger(With RPO Code AG2):

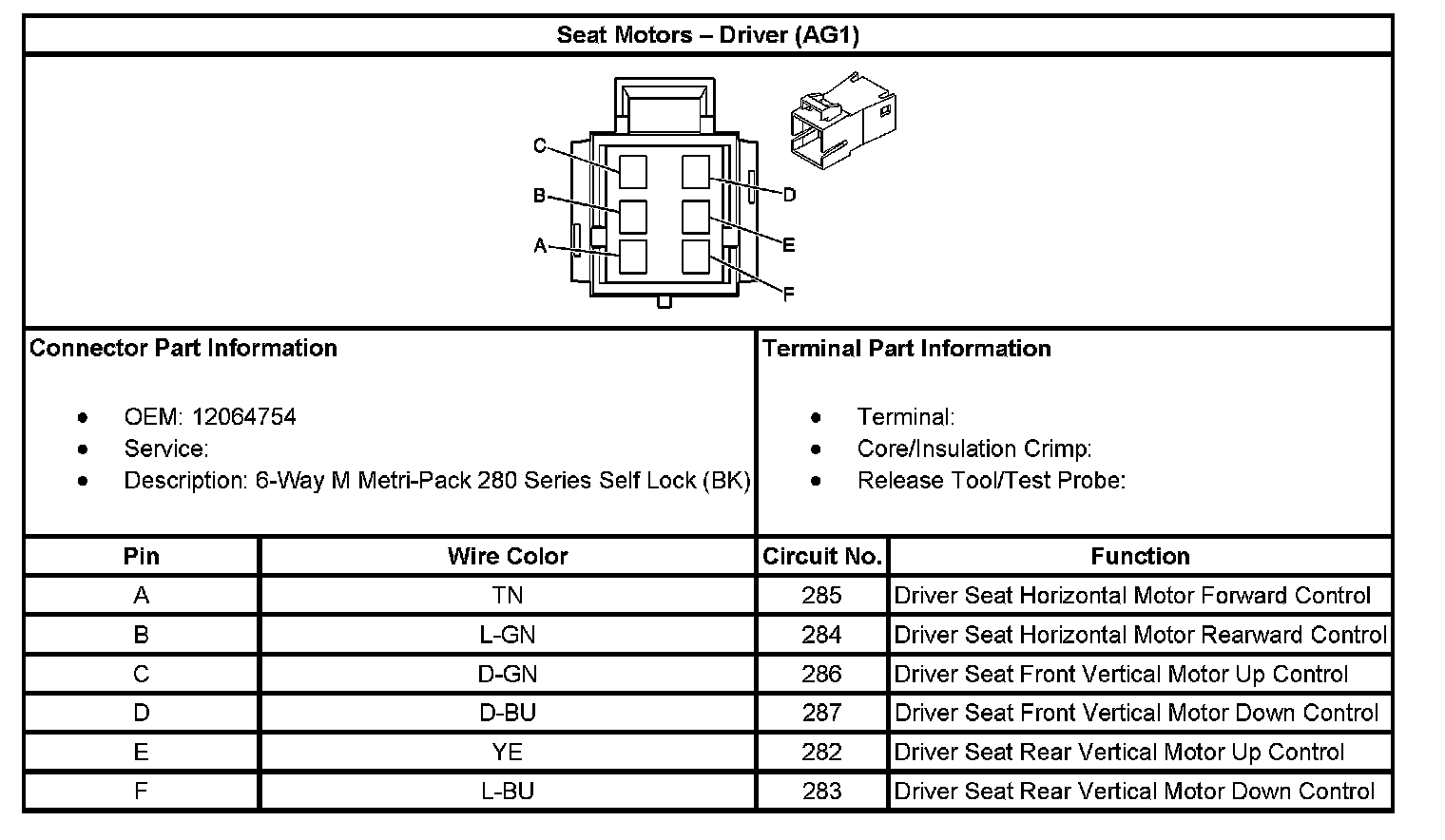

Seat Motors - Driver (With RPO Code AG1):

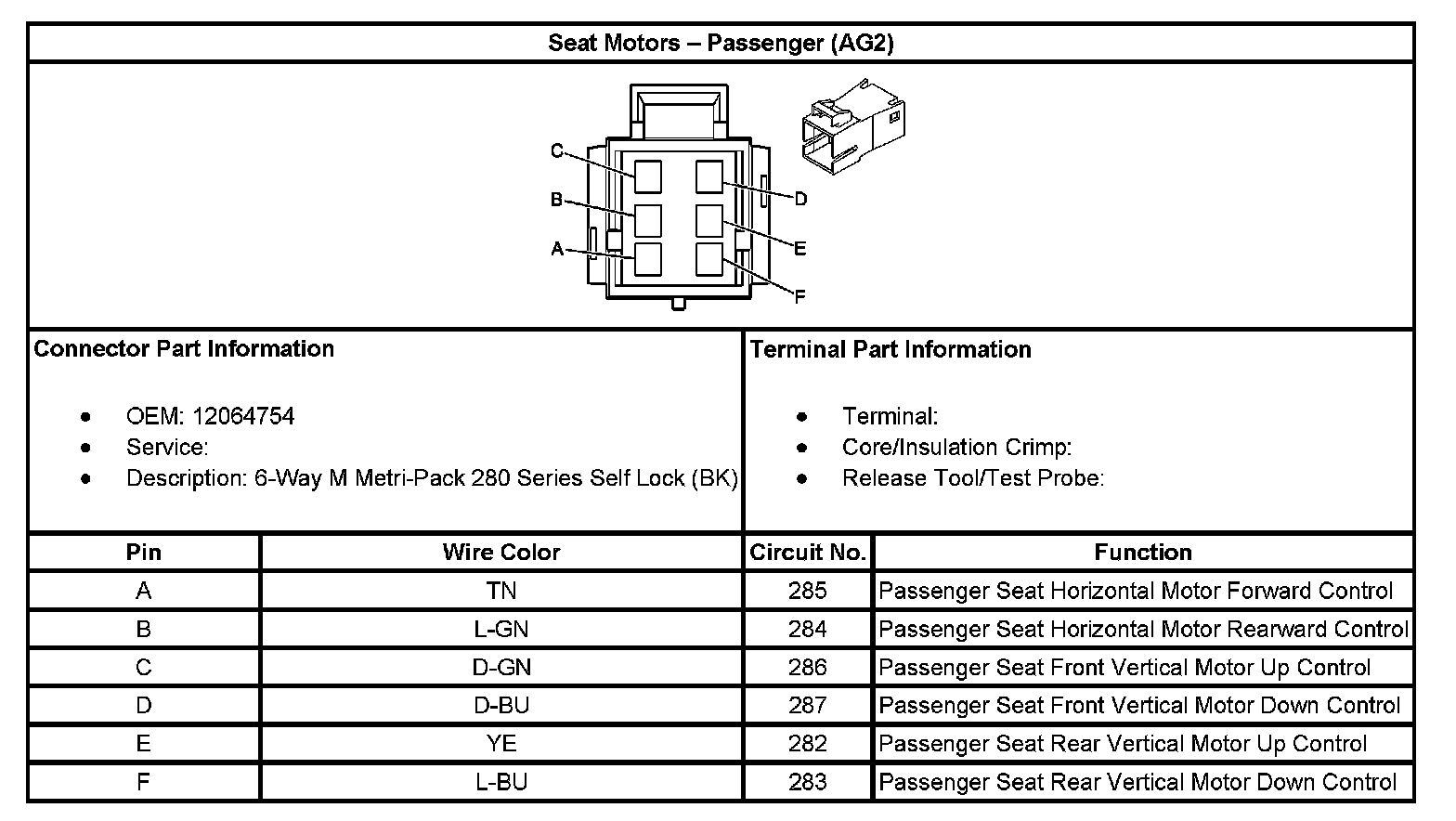

Seat Motors - Passenger (With RPO Code AG2):
