Power Door Lock Actuator

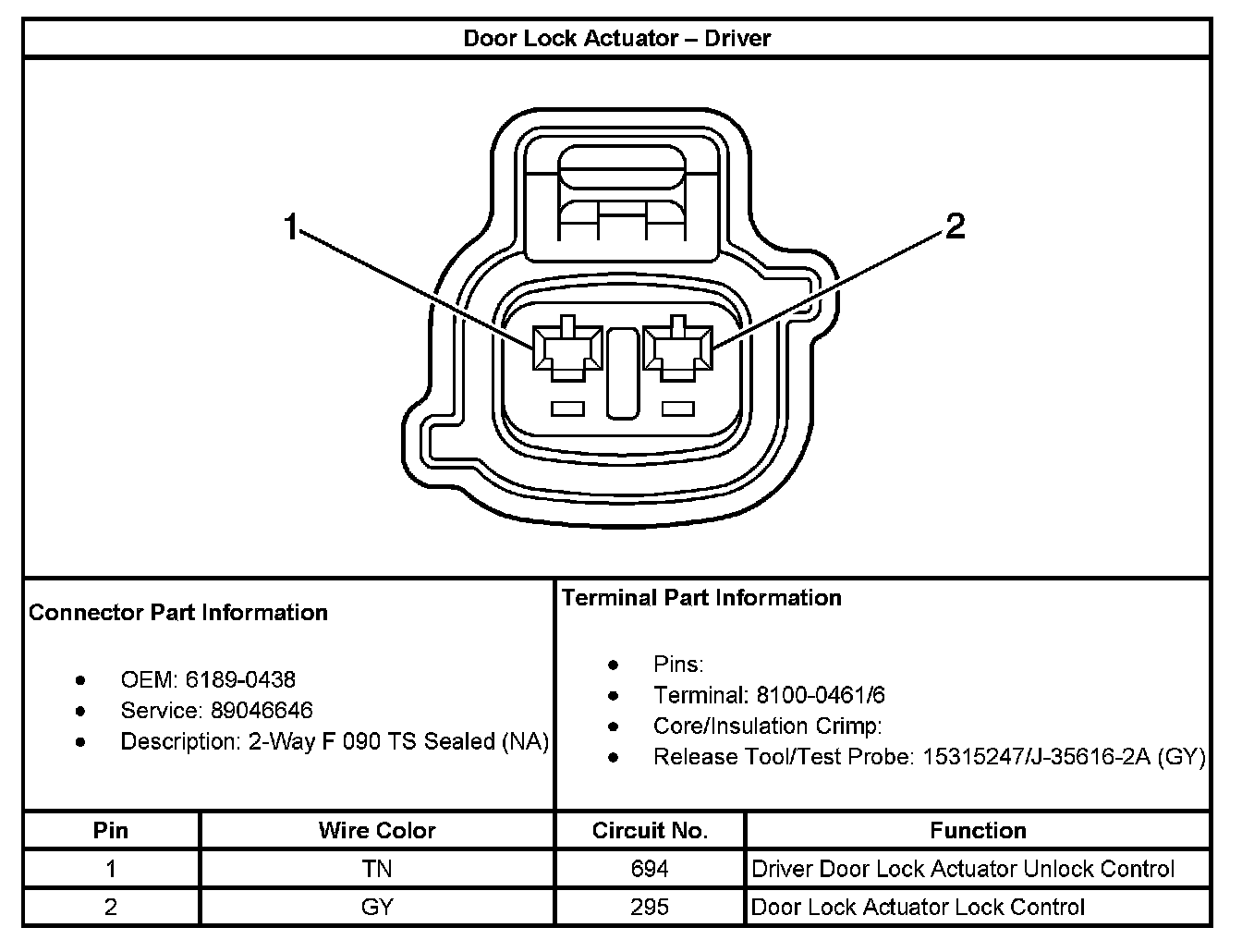

Door Lock Actuator - Driver:

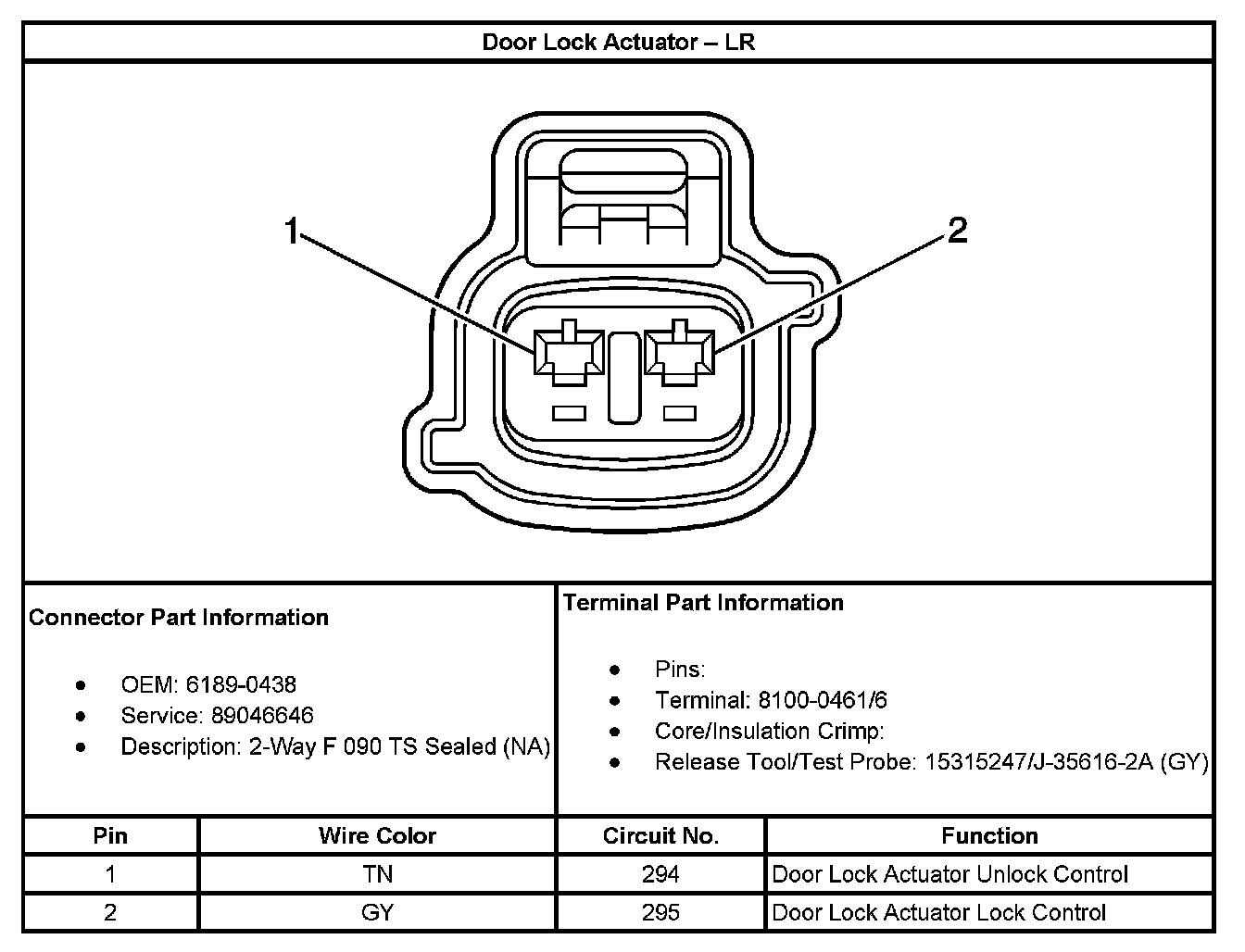

Door Lock Actuator - LR:

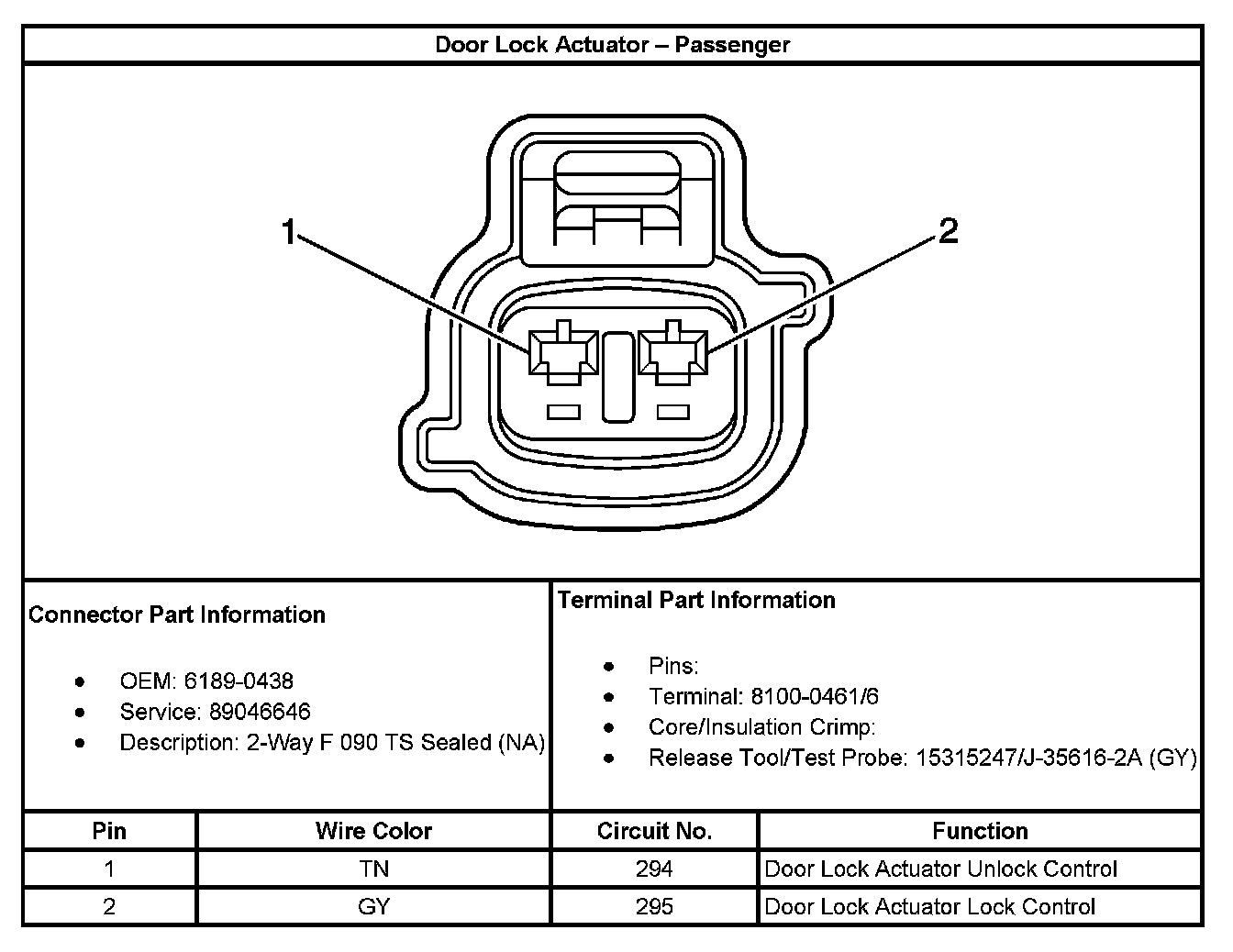

Door Lock Actuator - Passenger:

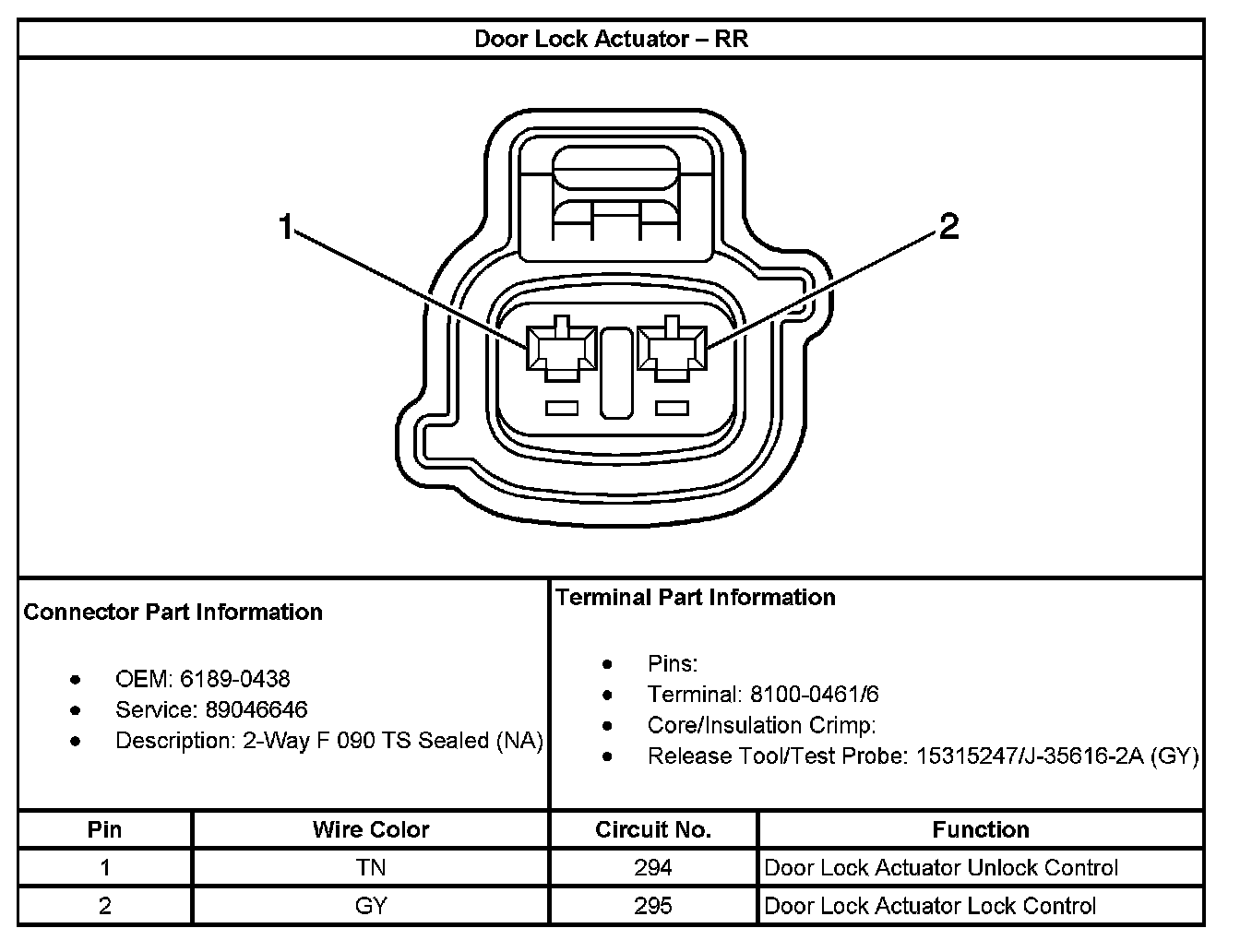

Door Lock Actuator - RR:

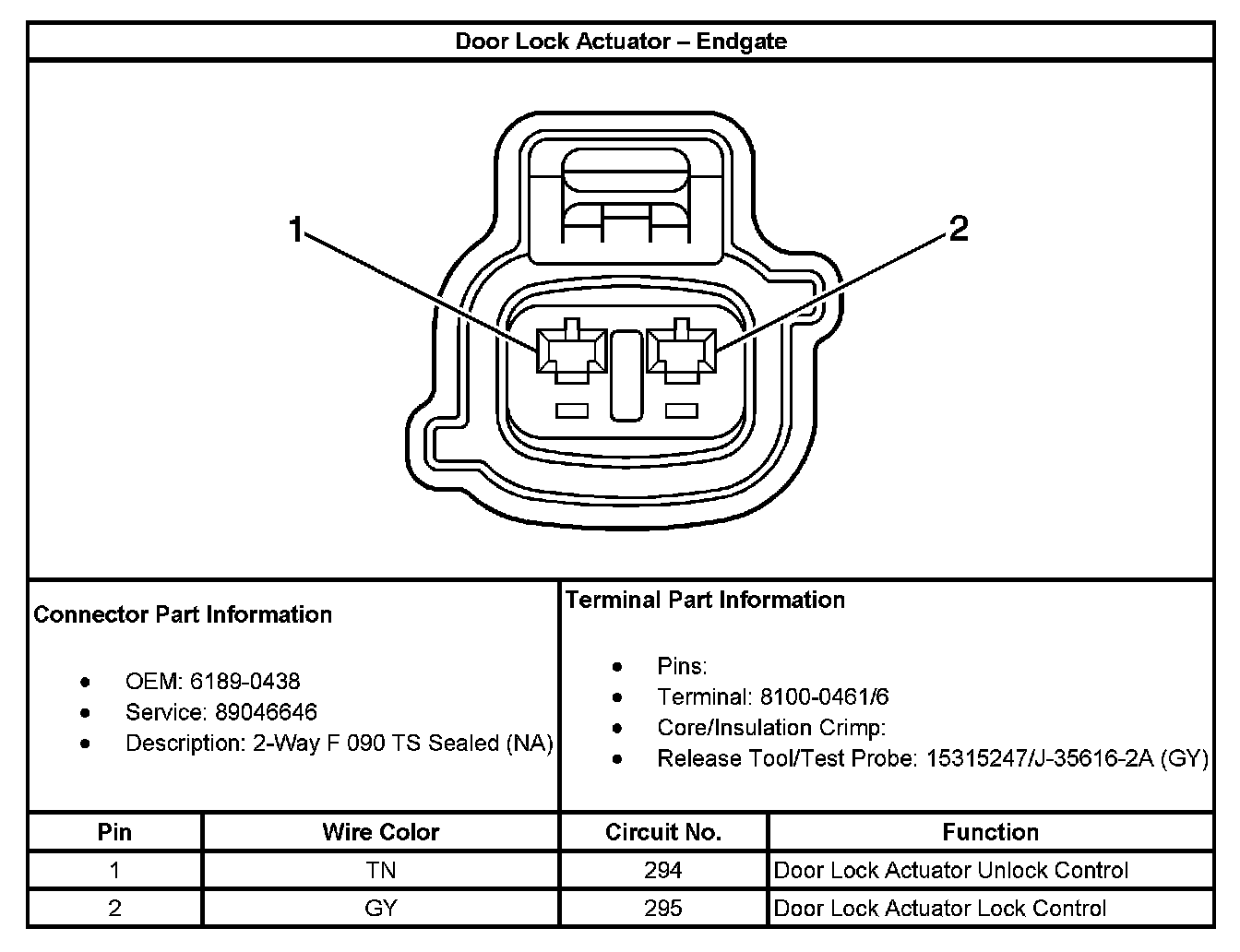

Door Lock Actuator - Endgate:
