2-4 Servo Pin Length Check

2-4 Servo Pin Length Check

^ Tools Required
- J 33037 2-4 Intermediate Band Apply Pin Gage

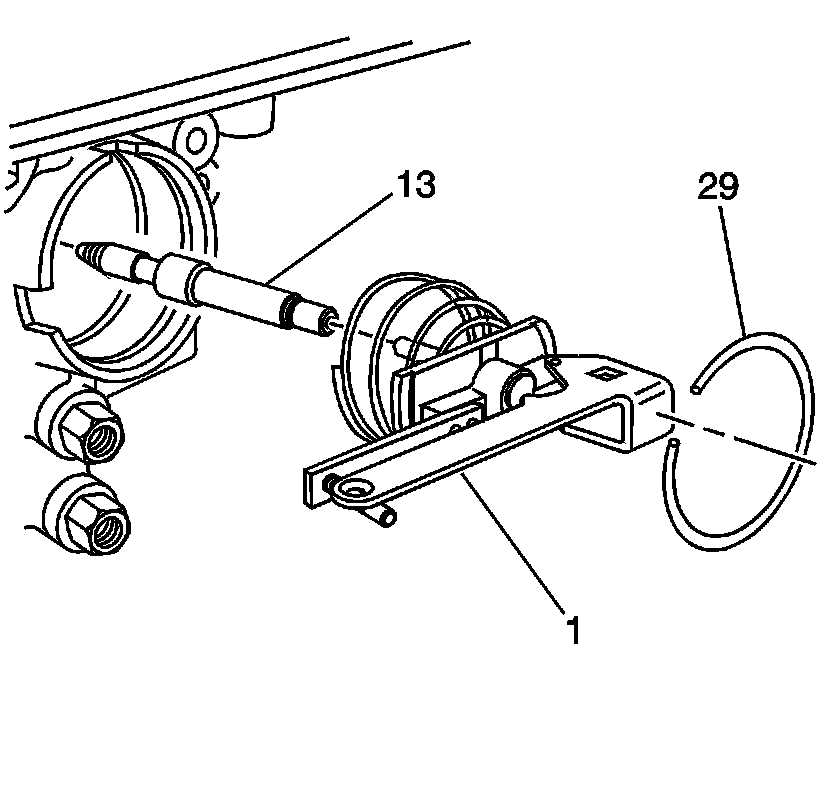

1. Install the band apply pin and the J 33037.
2. Install the servo cover retaining ring to secure the tool.

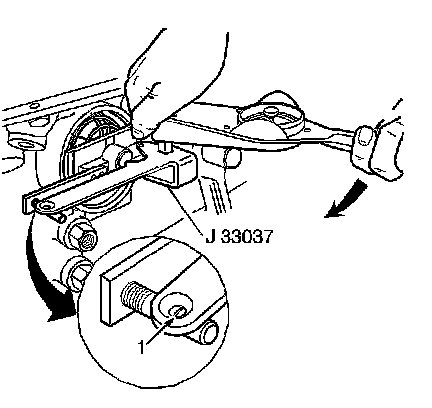

3. Apply 11 Nm (98 inch lbs.) torque. If the white line appears in the gage slot (1), the pin length is correct.
4. If a new pin is needed, refer to 2-4 Servo Pin Selection in order to determine the correct pin length.
