Engine Mechanical Specifications

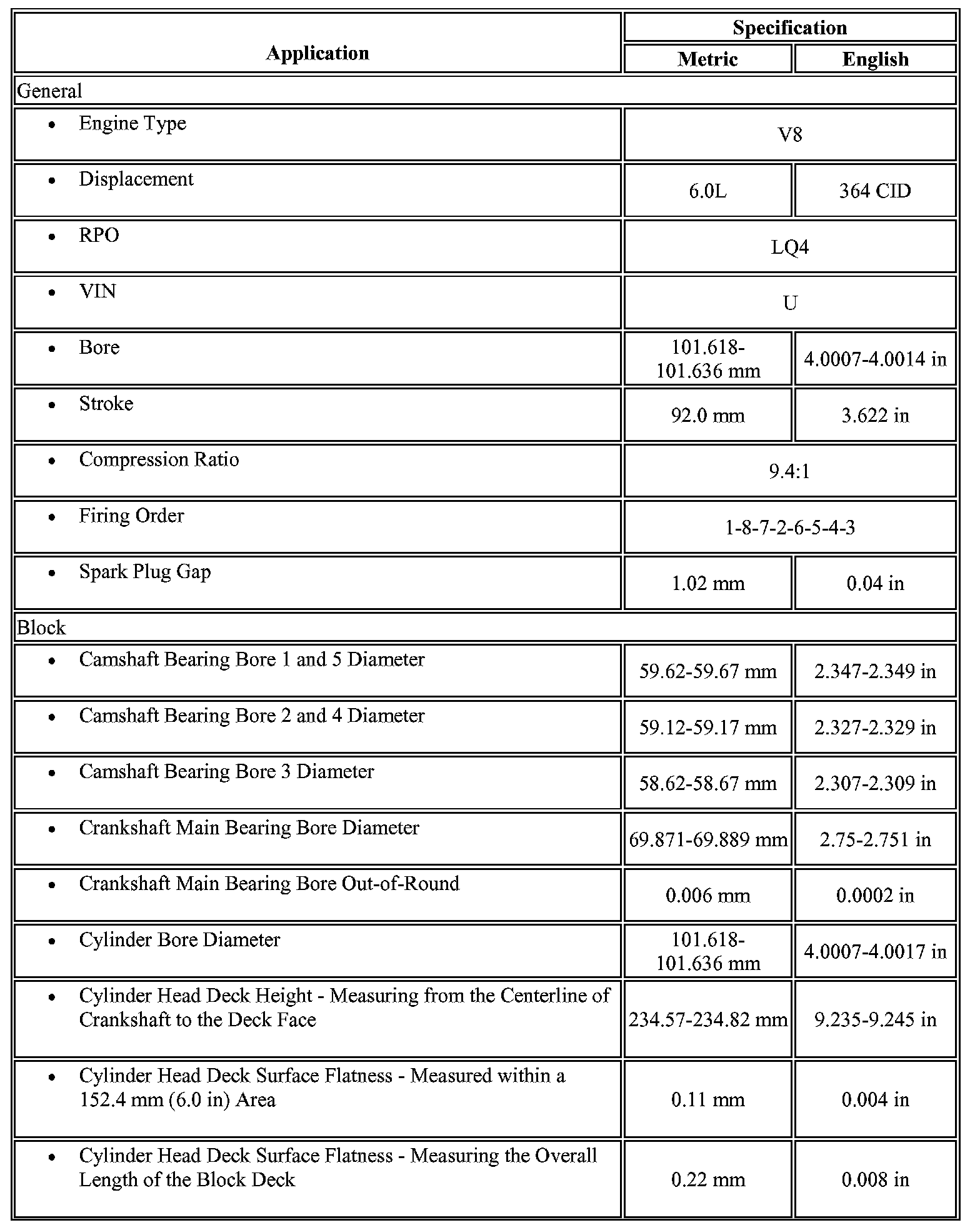

Engine Specifications (Part 1):

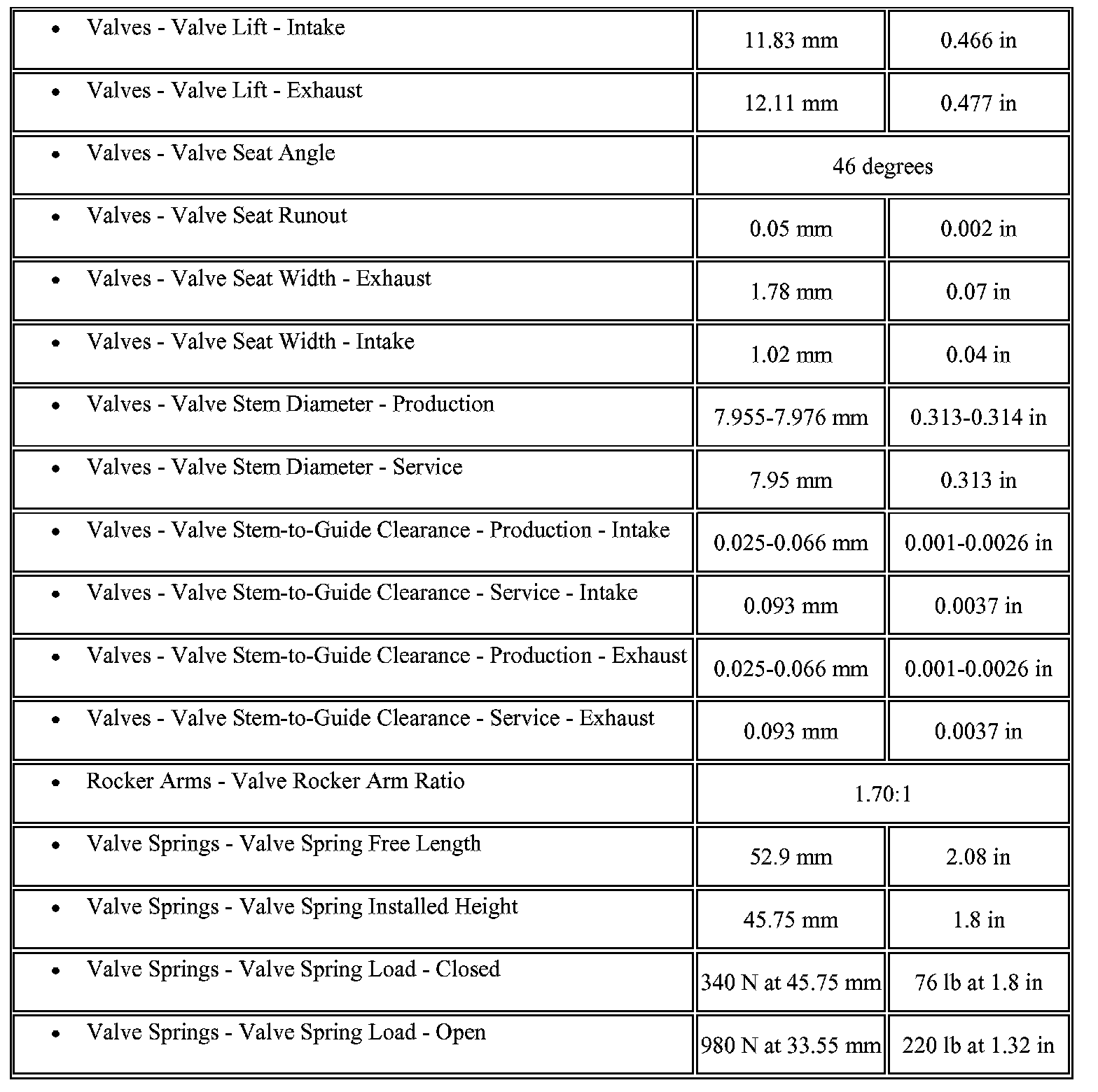

Engine Specifications (Part 2):

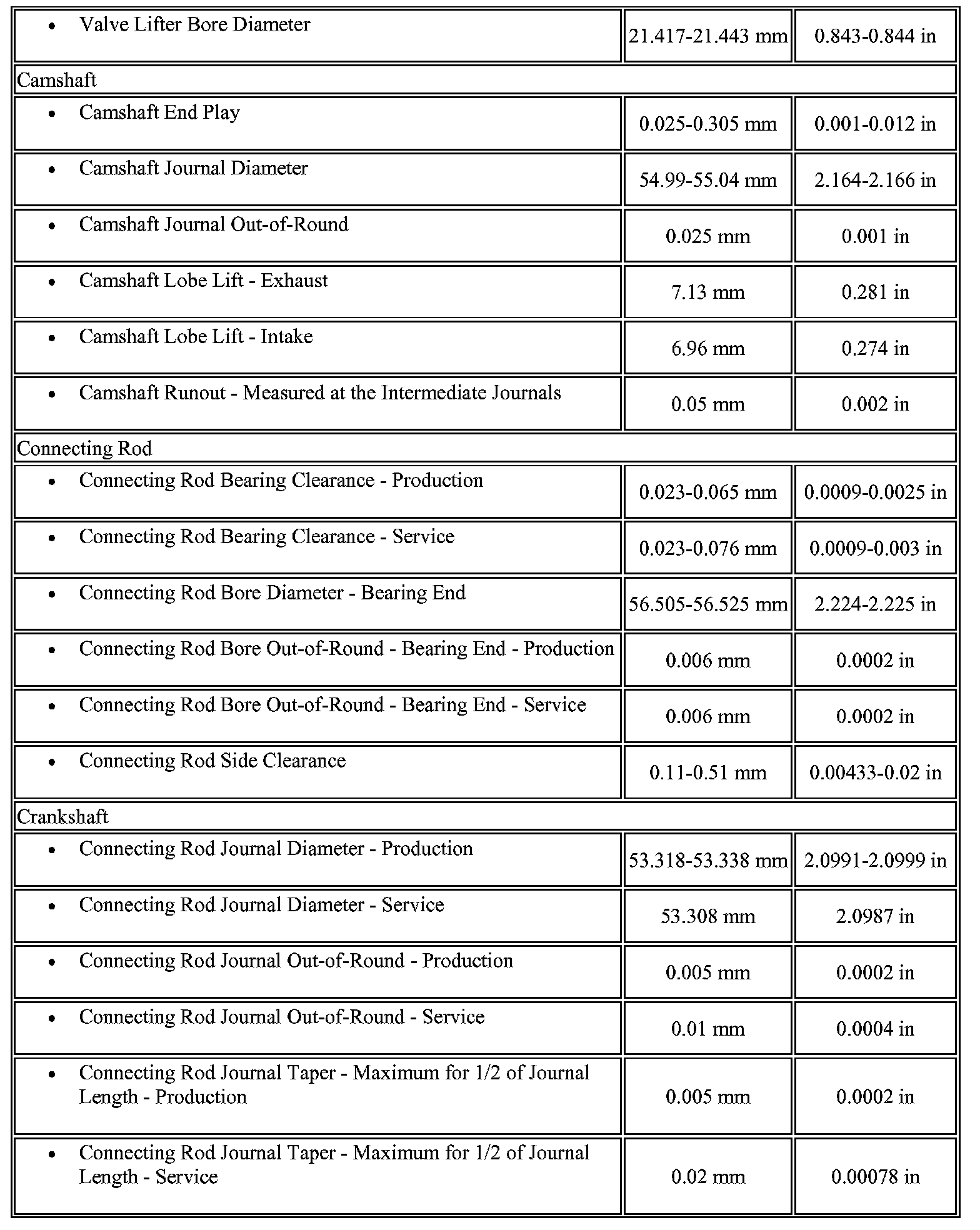

Engine Specifications (Part 3):

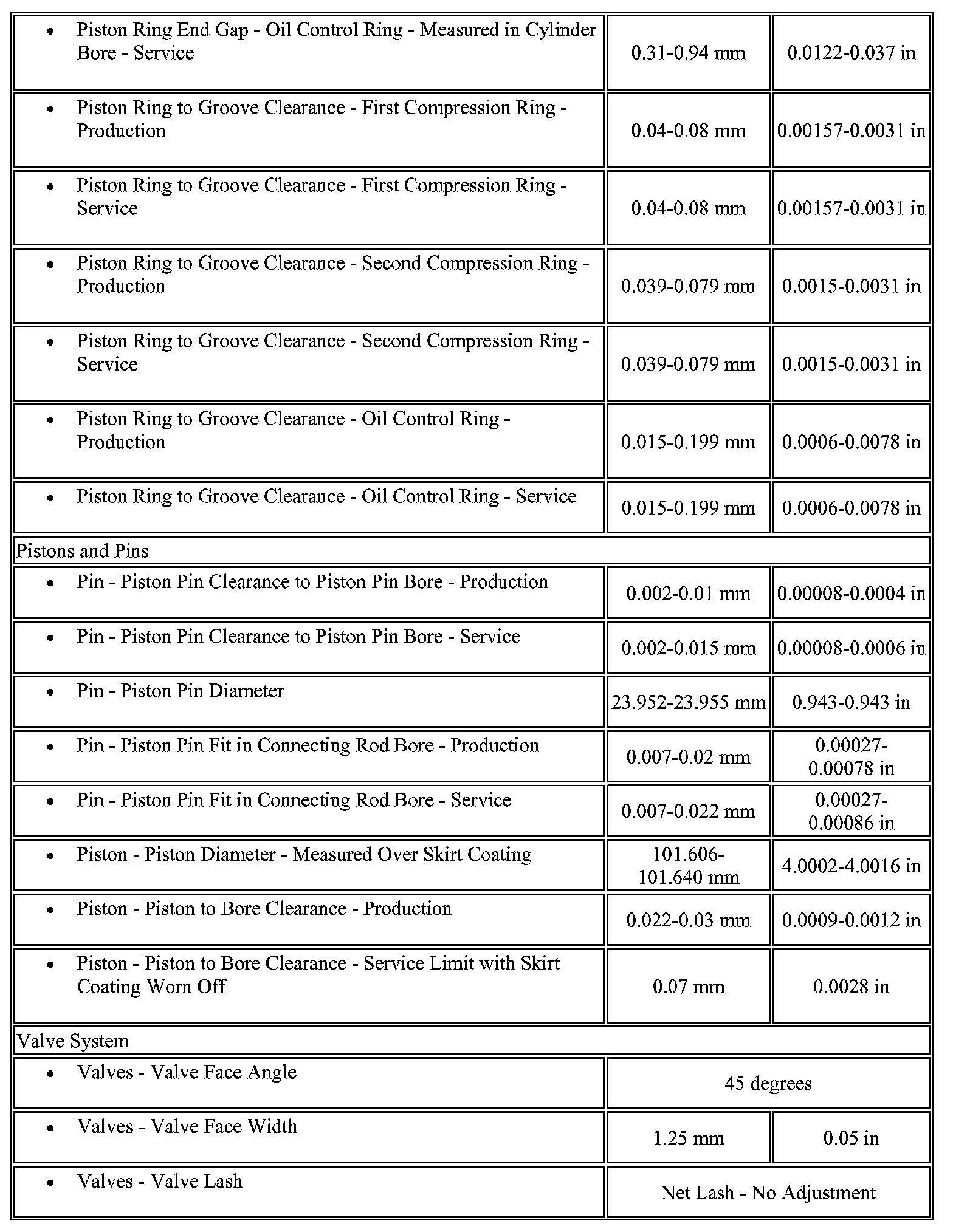

Engine Specifications (Part 4):

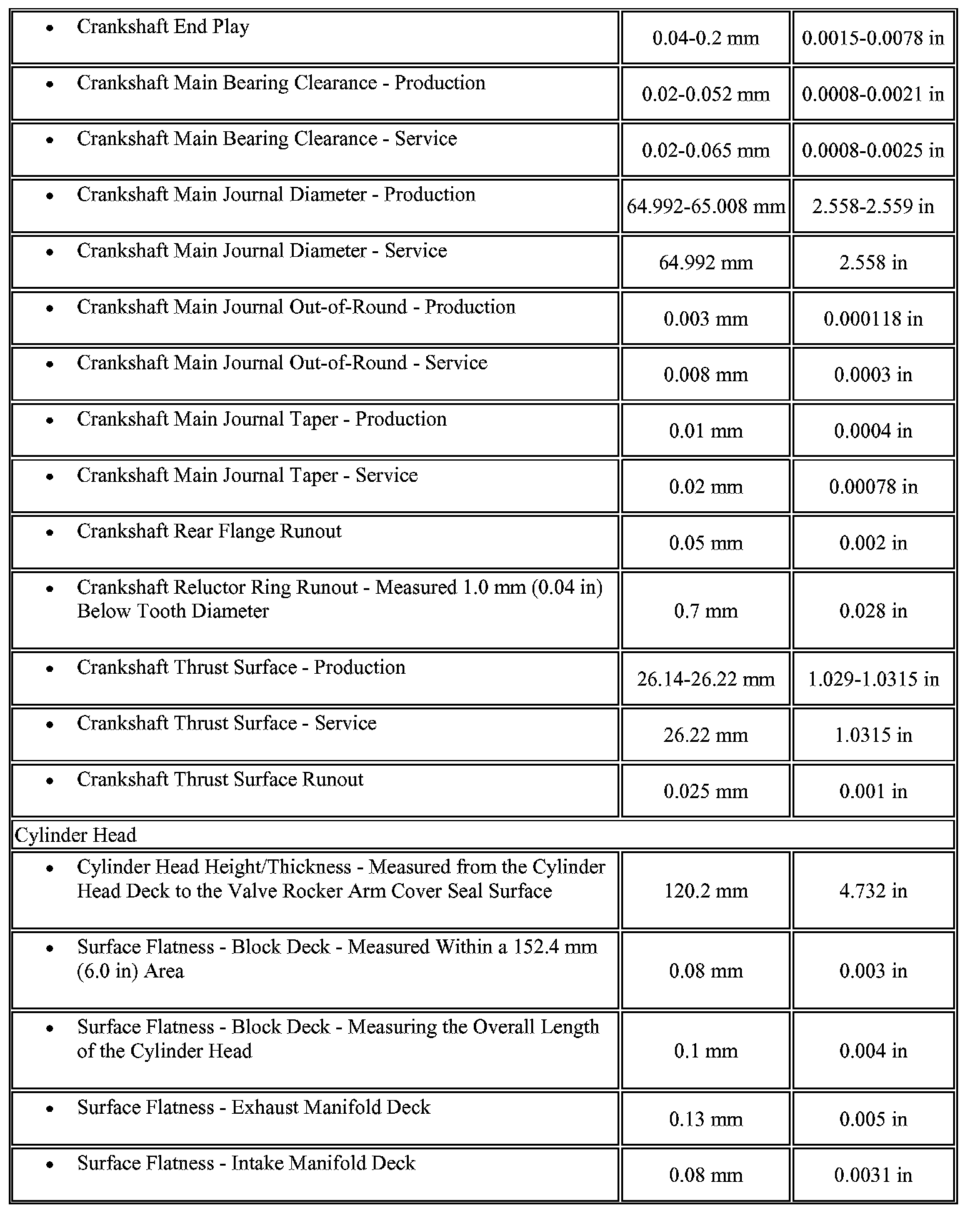

Engine Specifications (Part 5):

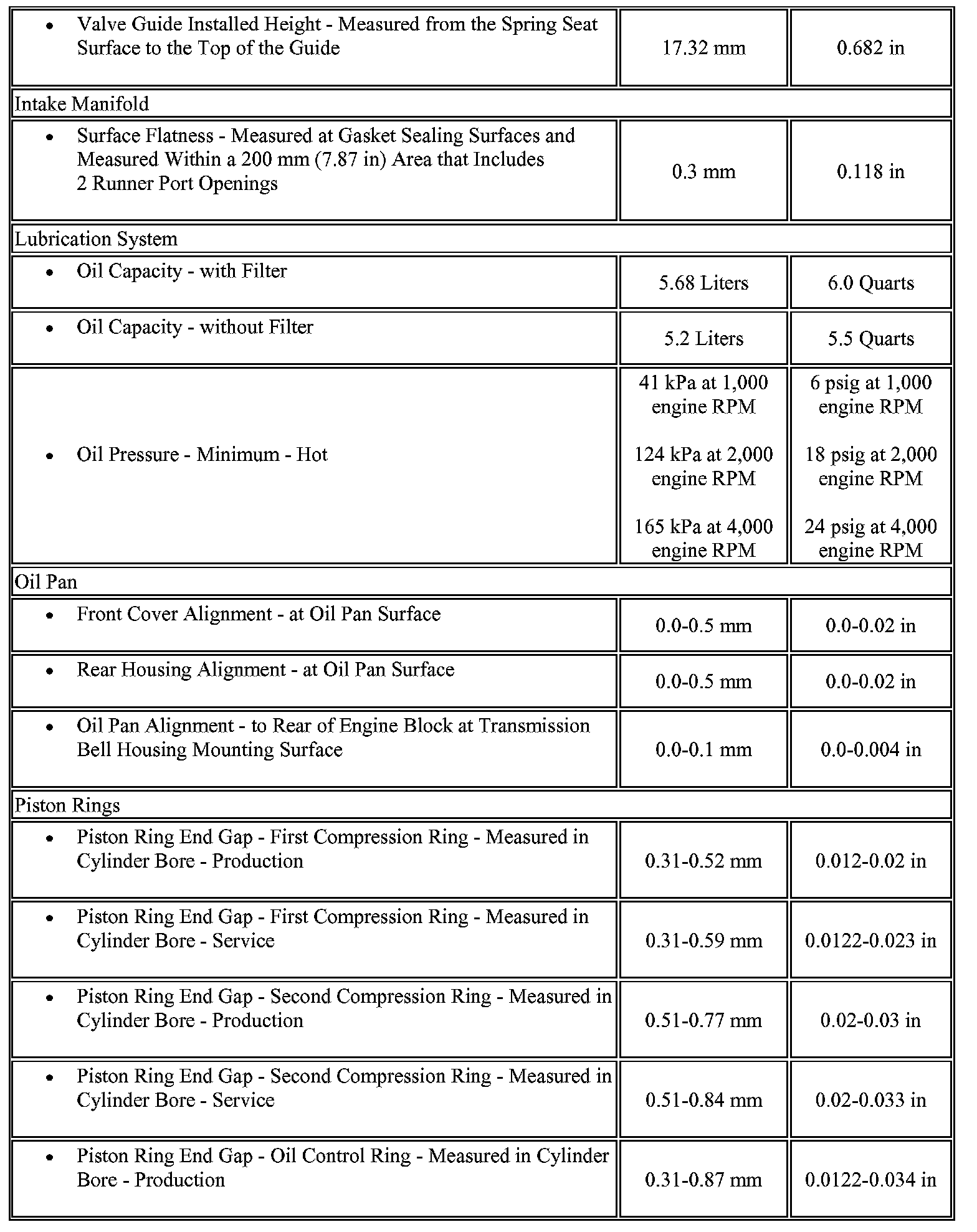

Engine Specifications (Part 6):
