Power Seat Control Module: Locations

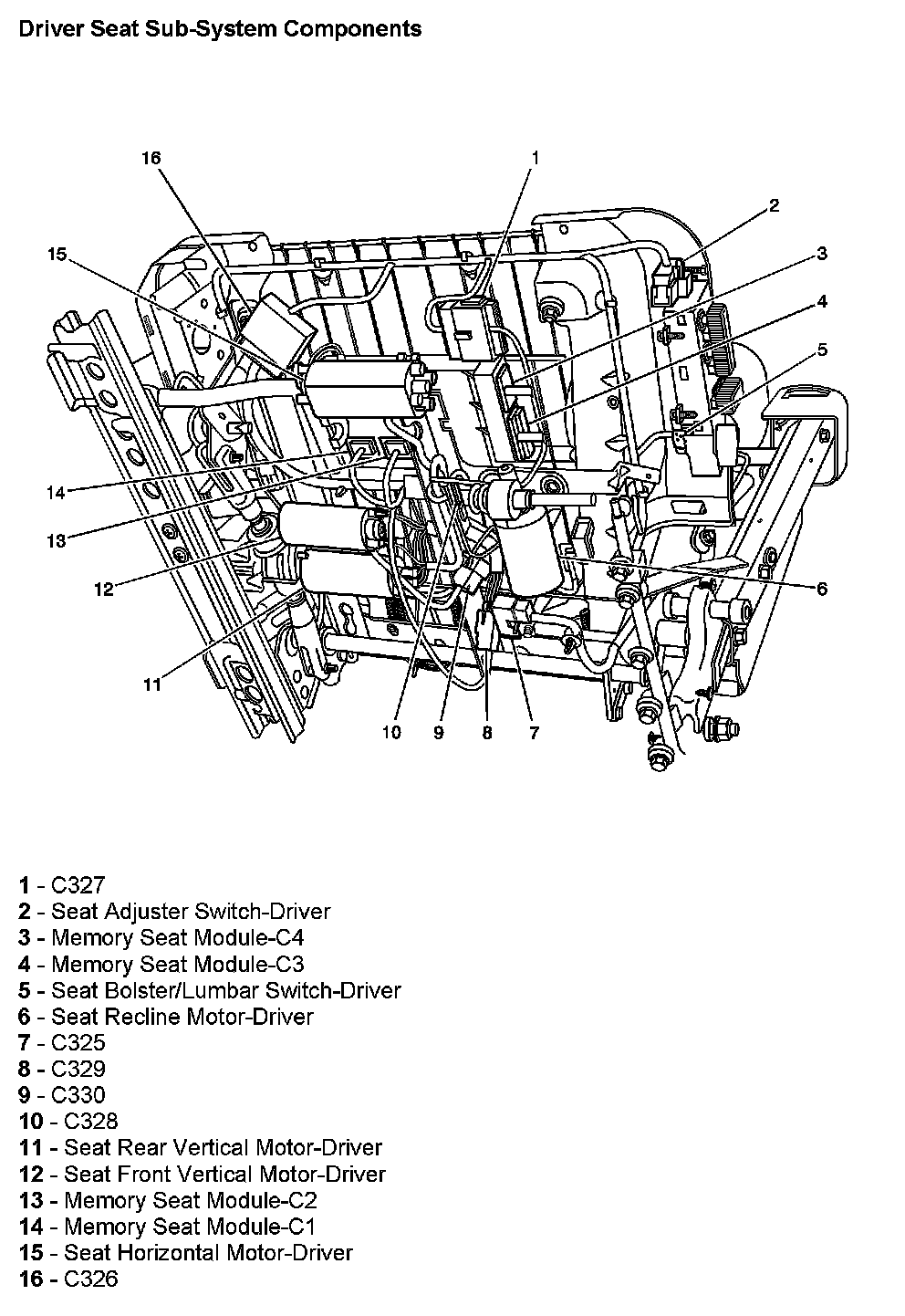

Driver Seat Sub-System Components:

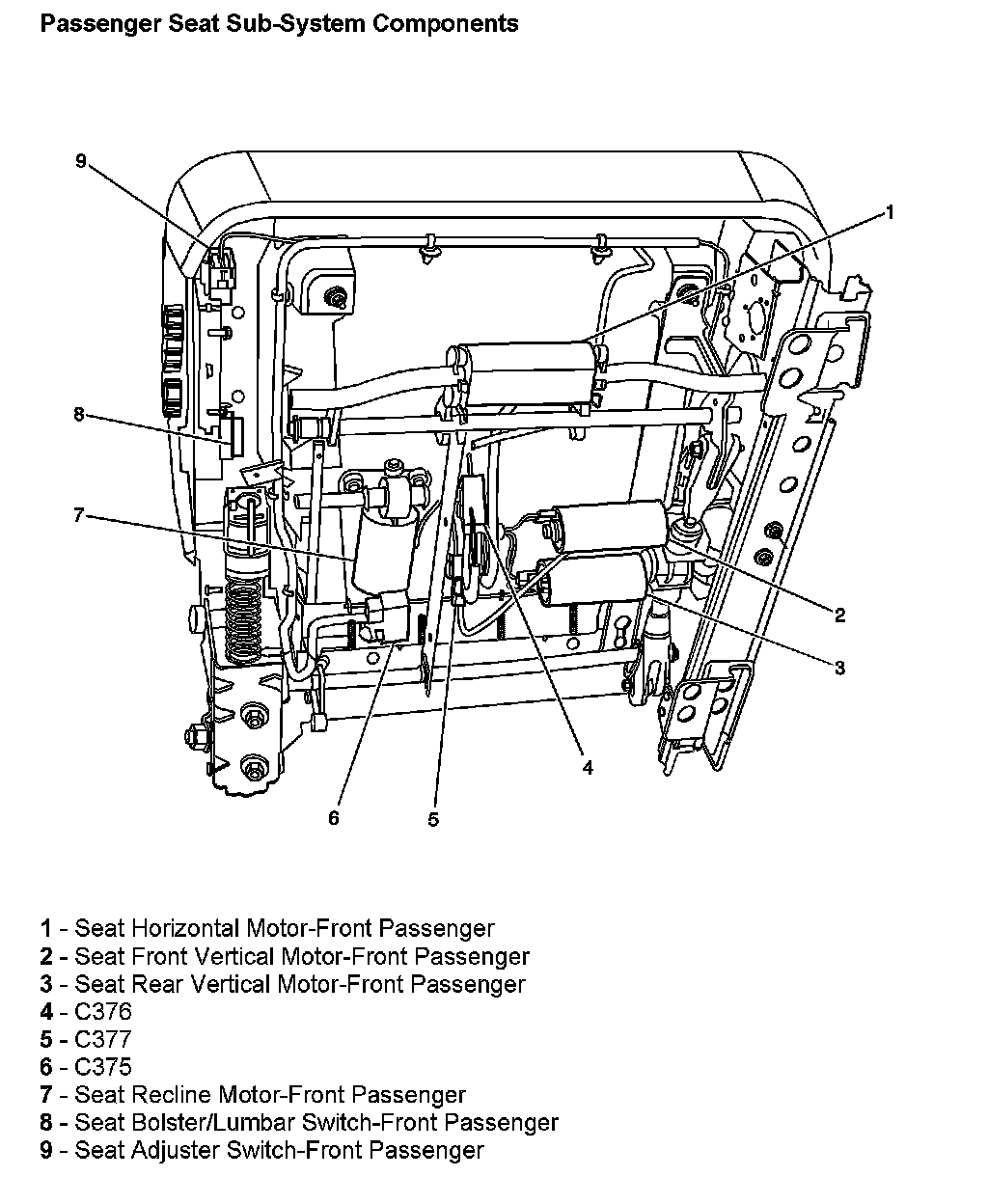

Passenger Seat Sub-System Components:
