Power Seat Control Module: Diagrams

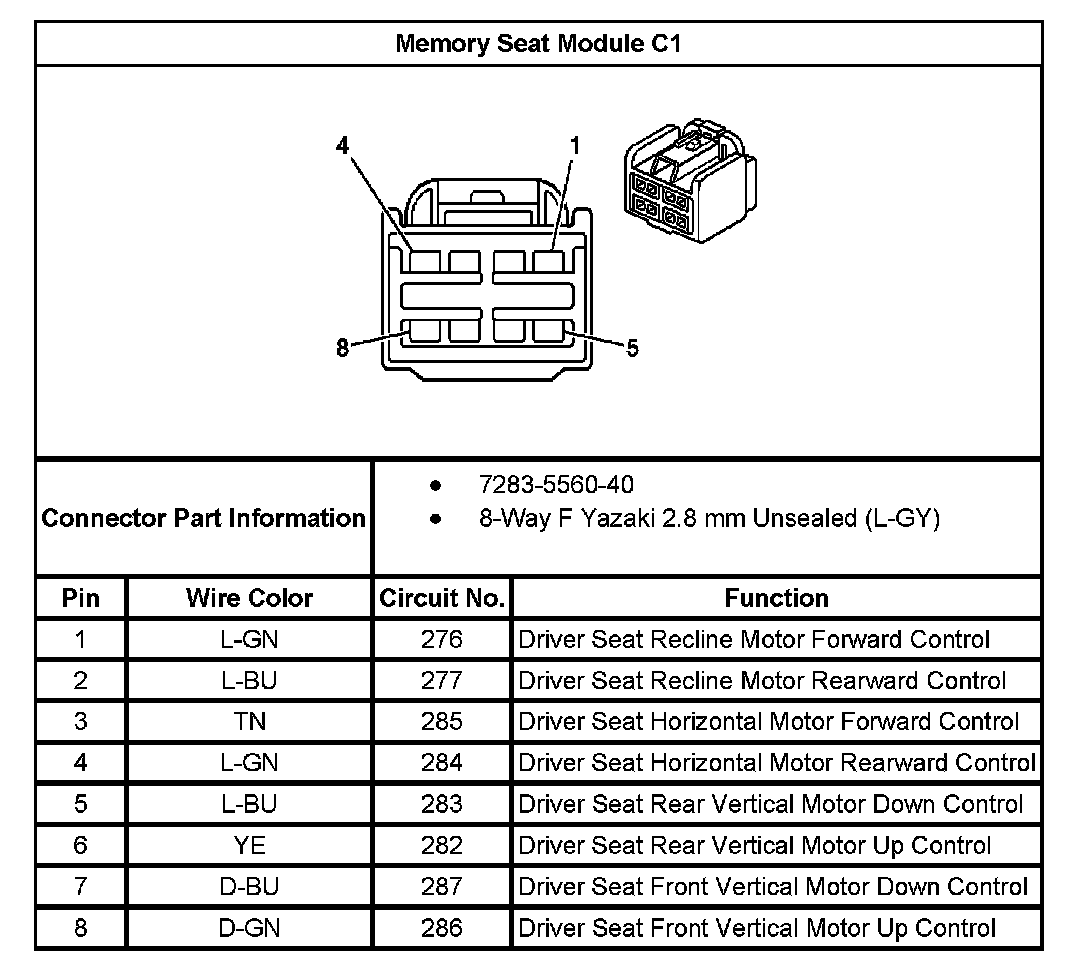

Memory Seat Module C1:



Memory Seat Module C2:

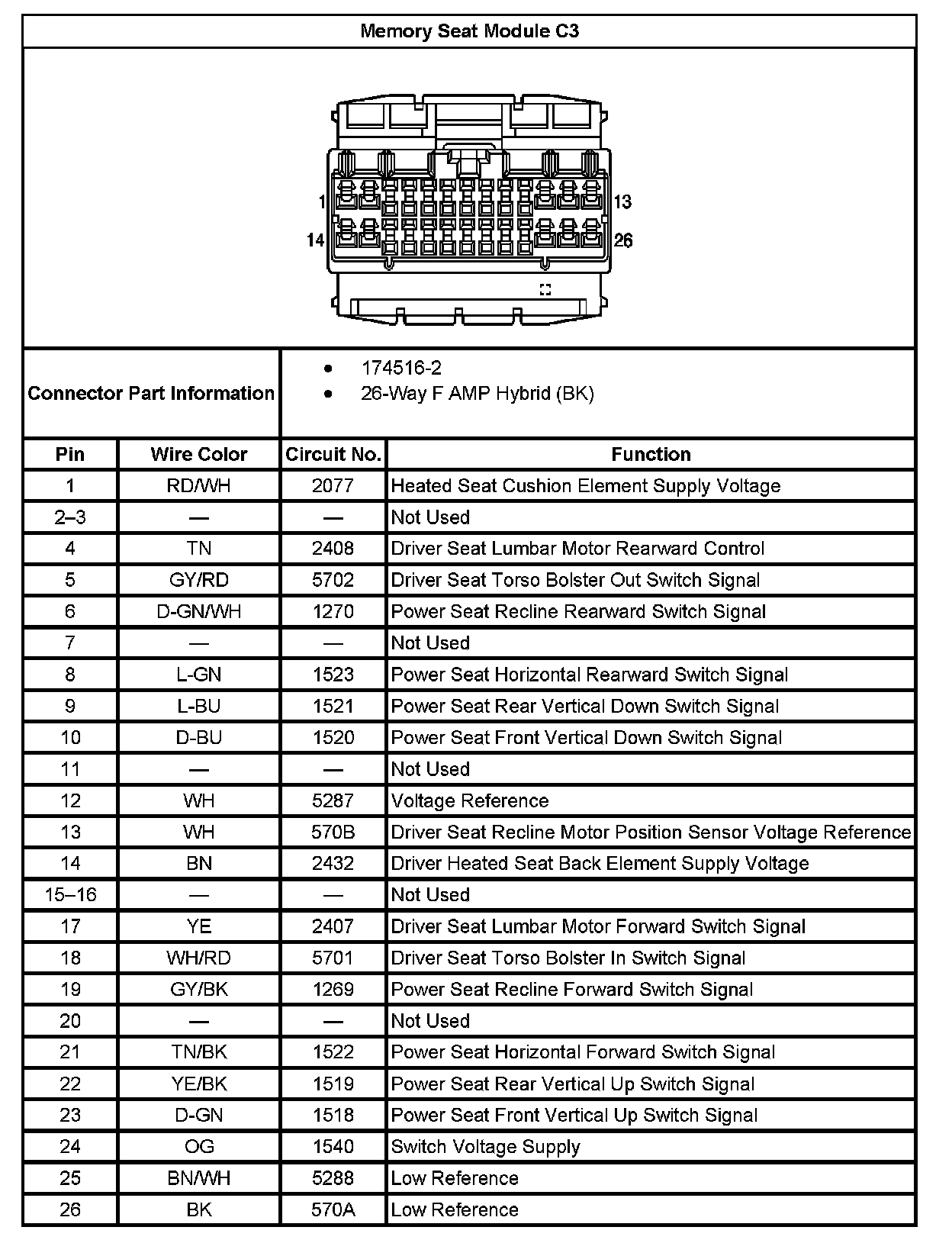

Memory Seat Module C3:

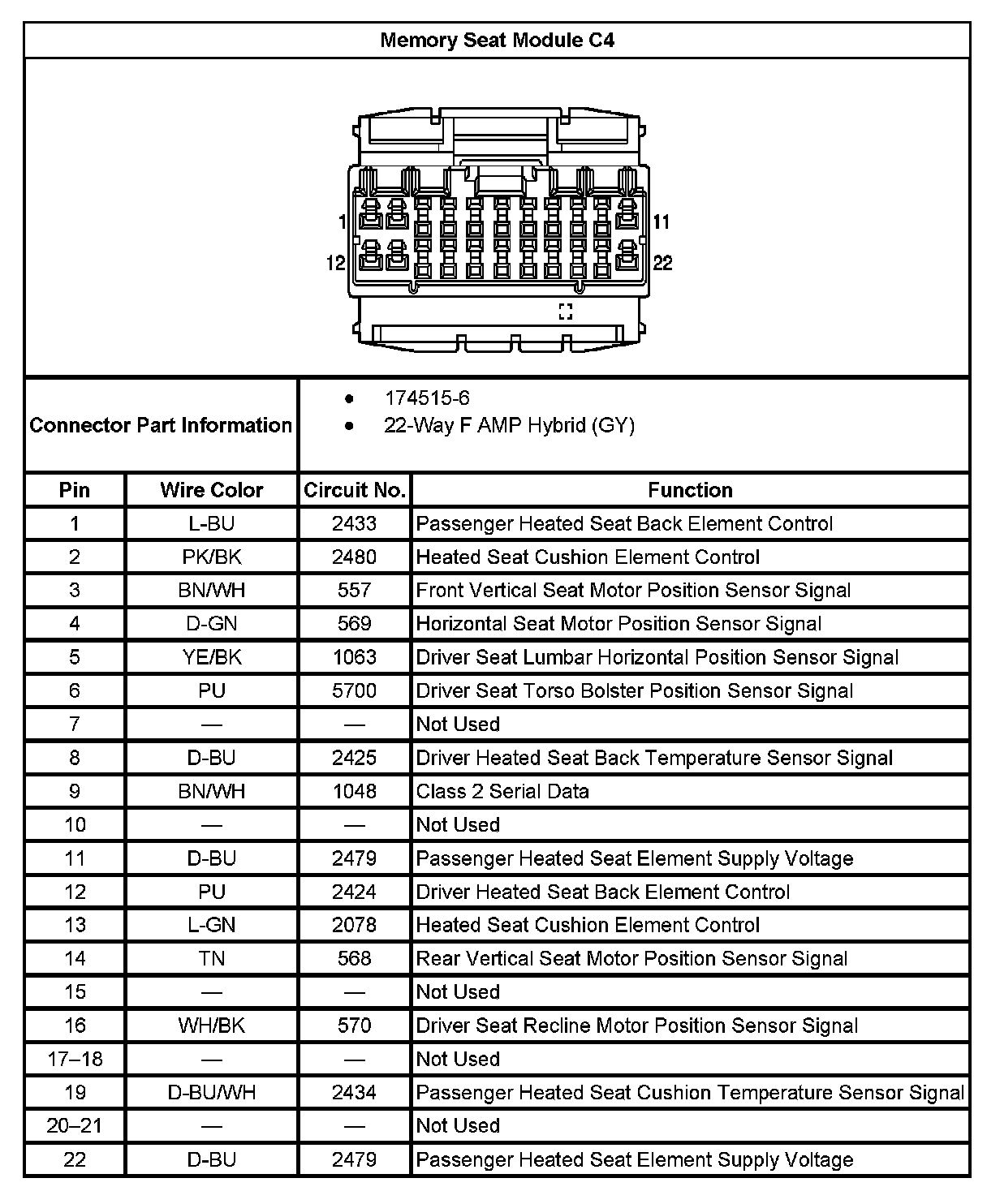

Memory Seat Module C4:
