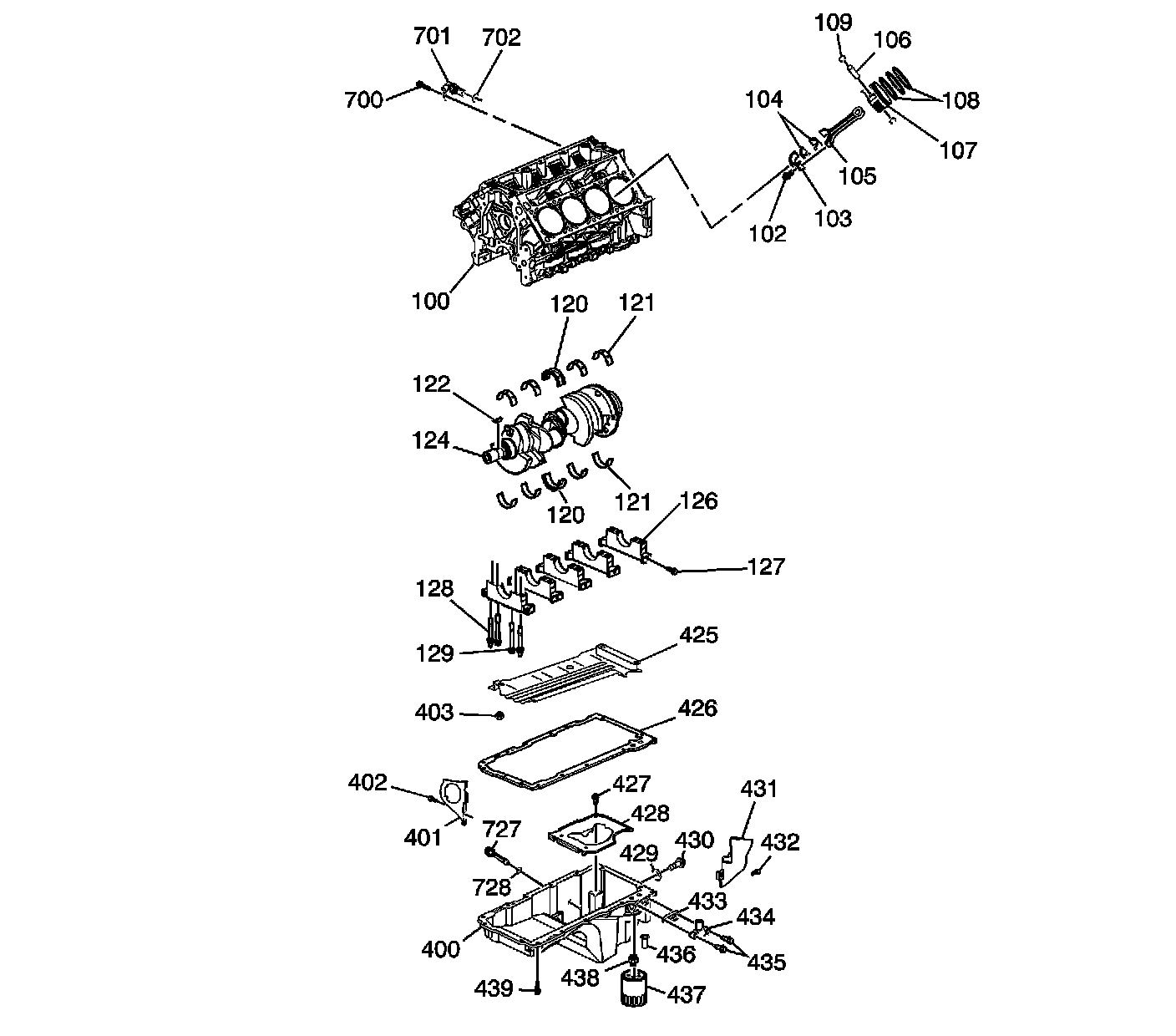

Lower Engine Assembly

Lower Engine Assembly





100 - Engine Block
102 - Connecting Rod Bolt
103 - Connecting Rod Cap
104 - Connecting Rod Bearings
105 - Connecting Rod
106 - Piston Pin
107 - Piston
108 - Piston Rings
109 - Piston Pin Clips
120 - Crankshaft Thrust Bearing
120 - Crankshaft Thrust Bearing
121 - Crankshaft Main Bearing
121 - Crankshaft Main Bearing
122 - Crankshaft Sprocket Key
124 - Crankshaft
126 - Bearing Cap
127 - Bearing Cap Side Bolt
128 - Bearing Cap Bolt/Stud
129 - Bearing Cap Bolt
400 - Oil Pan
401 - Closeout Cover - Right
402 - Closeout Cover Bolt - Right
403 - Crankshaft Oil Deflector Nut
425 - Crankshaft Oil Deflector
426 - Oil Pan Gasket
427 - Oil Pan Baffle Bolt
428 - Oil Pan Baffle
429 - Oil Pan Drain Plug O-Ring
430 - Oil Pan Drain Plug
431 - Closeout Cover - Left
432 - Closeout Cover Bolt - Left
433 - Oil Pan Cover Gasket
434 - Oil Pan Cover
435 - Oil Pan Cover Bolts
436 - Oil Filter Bypass Valve
437 - Oil Filter
438 - Oil Filter Adapter
439 - Oil Pan Bolt
700 - Crankshaft Position Sensor Bolt
701 - Crankshaft Position Sensor
702 - Crankshaft Position Sensor O-Ring
727 - Oil Level Sensor
728 - O-Ring
