Power Trunk / Liftgate Lock Switch

Midgate Latch Release Switch - Left (SUT):



Midgate Latch Release Switch - Right (SUT):

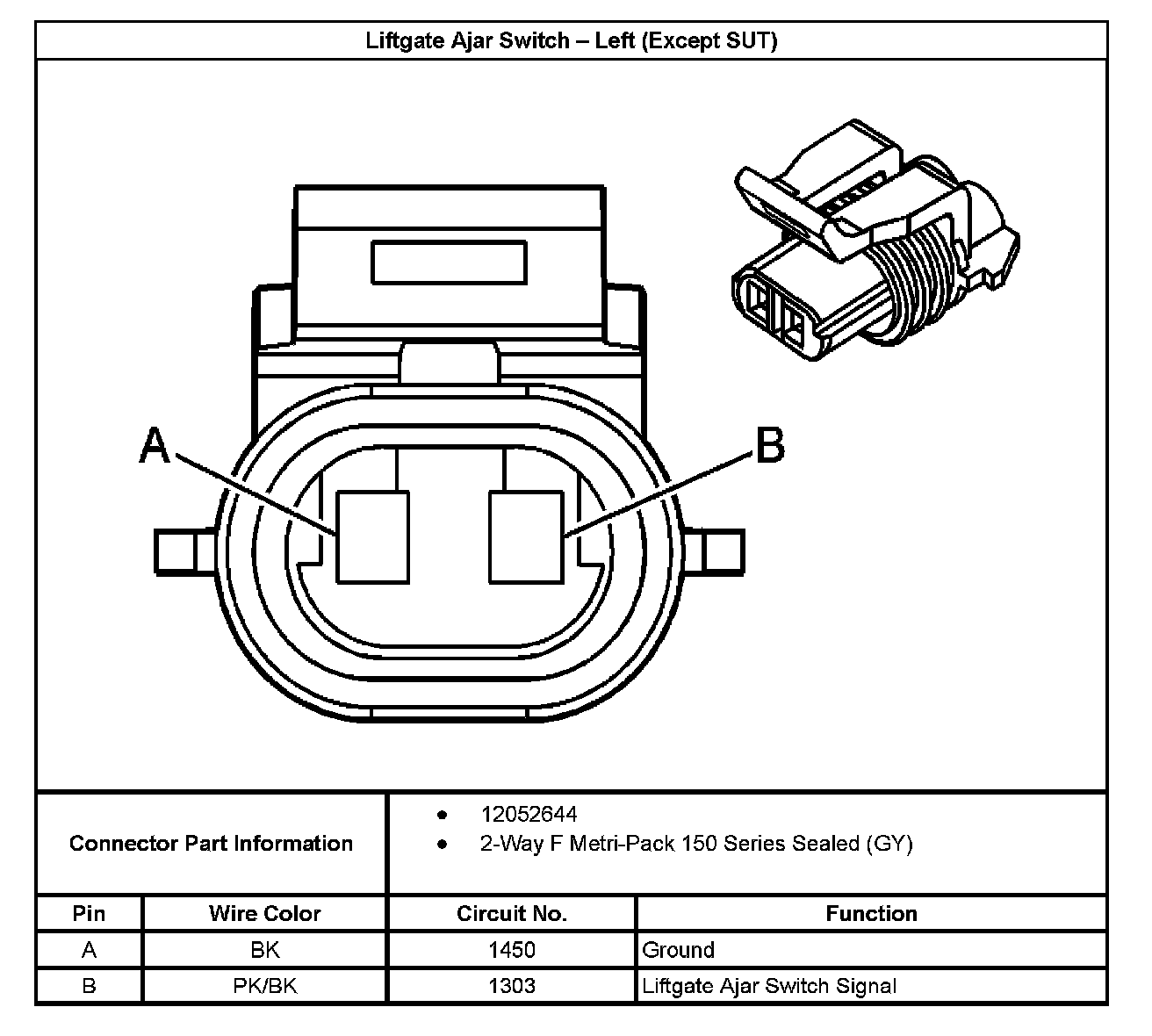

Liftgate Ajar Switch - Left (Except SUT):



Liftgate Ajar Switch - Right (Except SUT):
