Passenger Door Module (PDM)

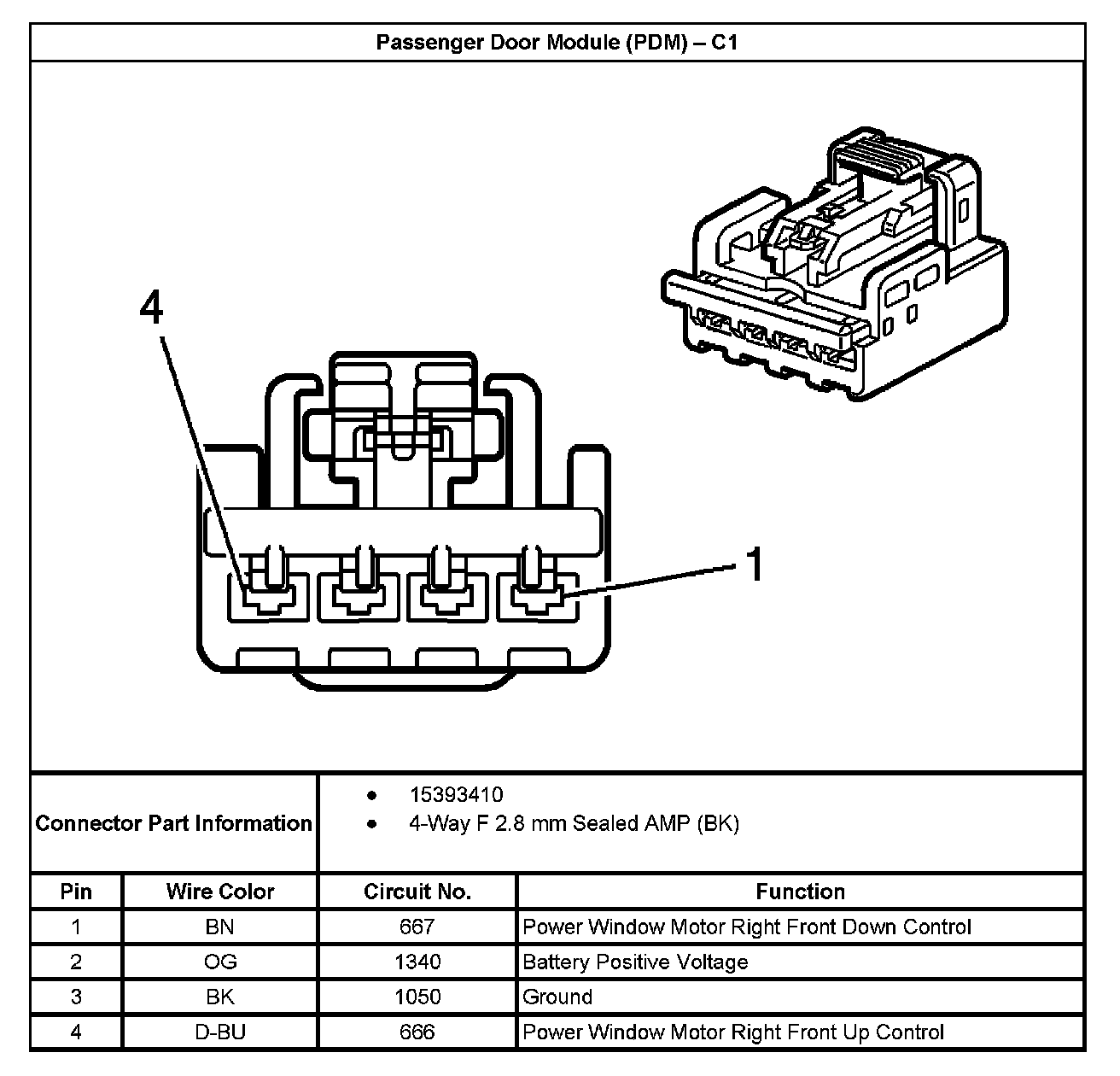

Passenger Door Module (PDM) - C1:

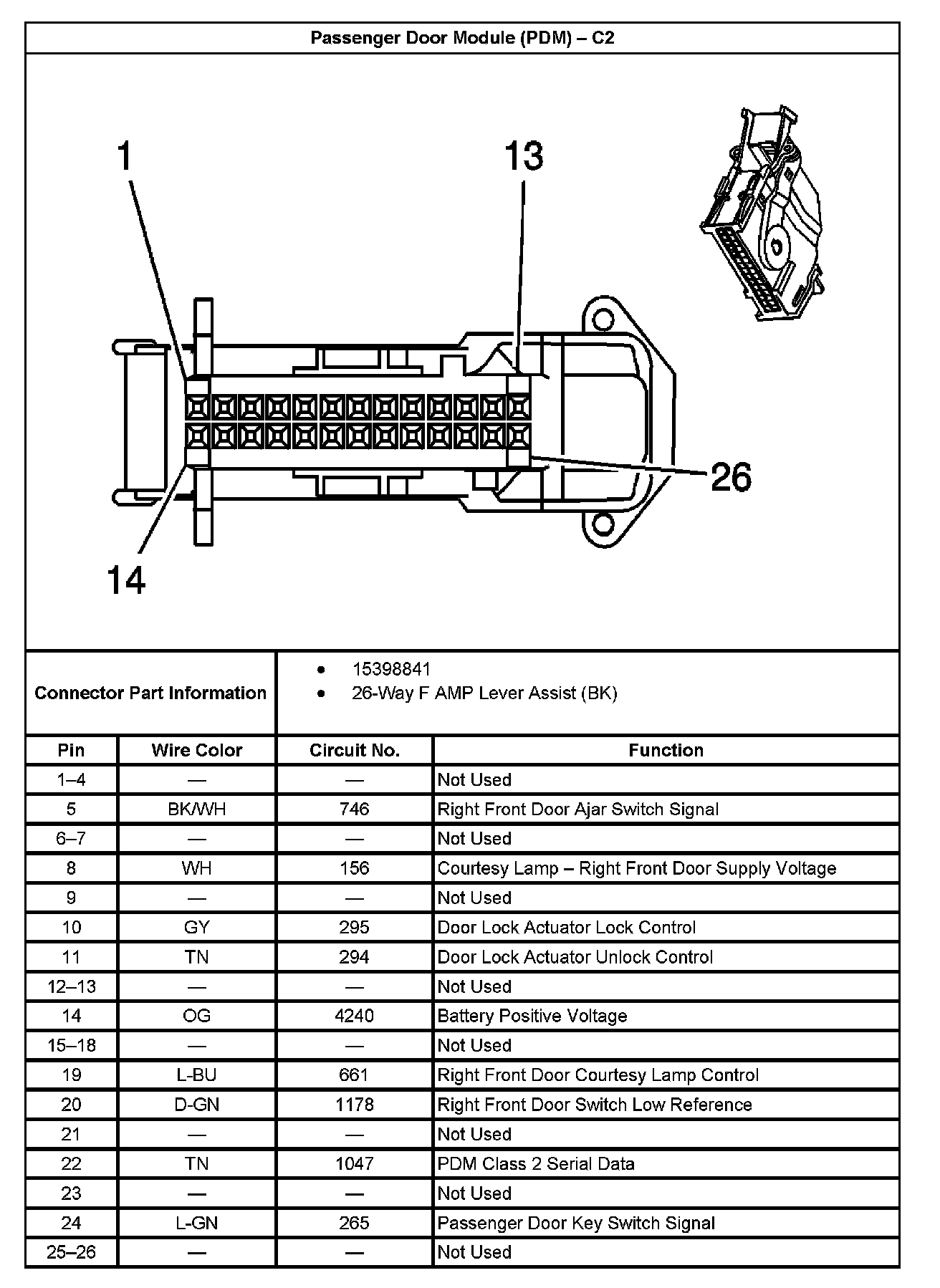

Passenger Door Module (PDM) - C2:

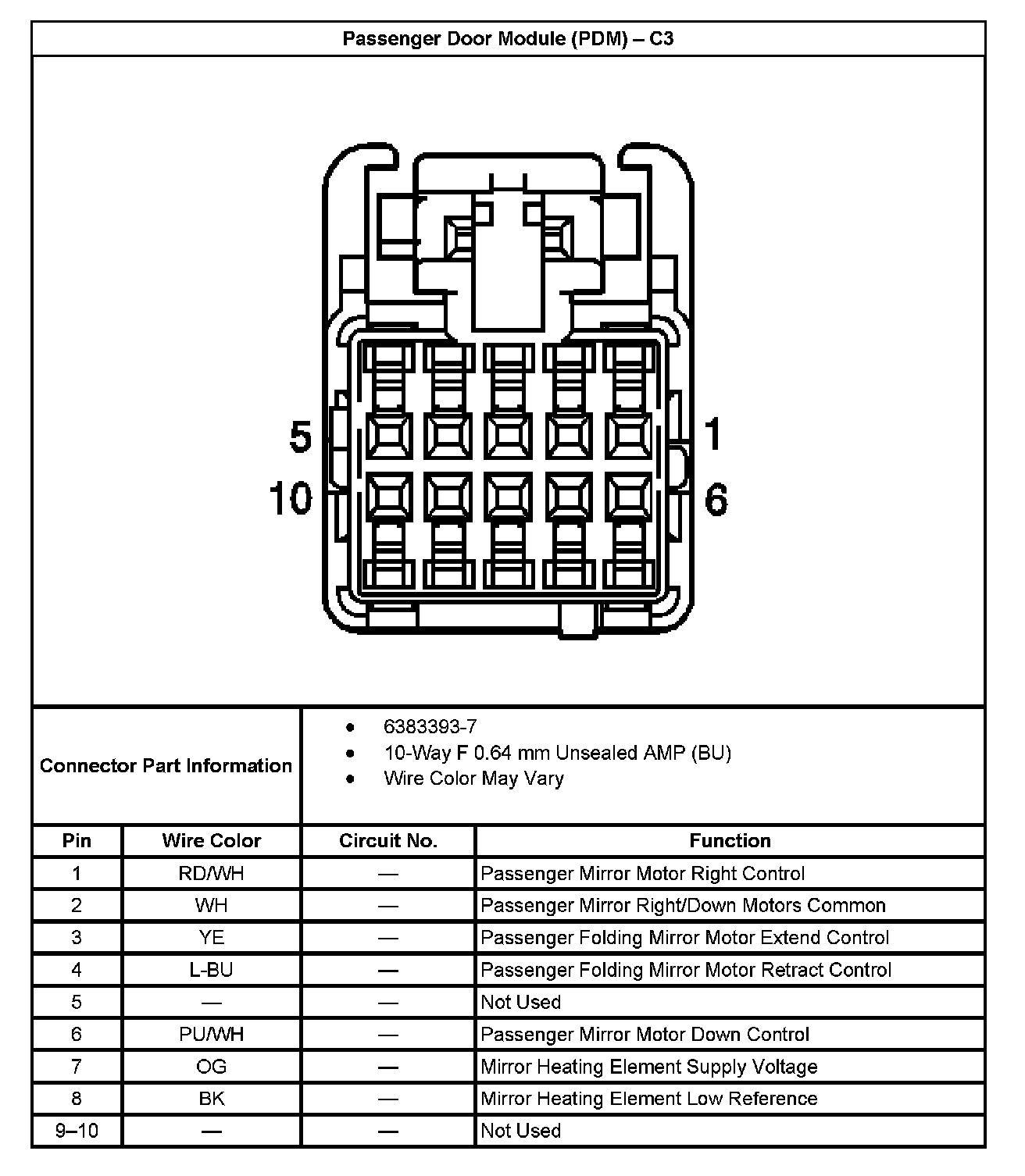

Passenger Door Module (PDM) - C3:



Passenger Door Module (PDM) - C4:

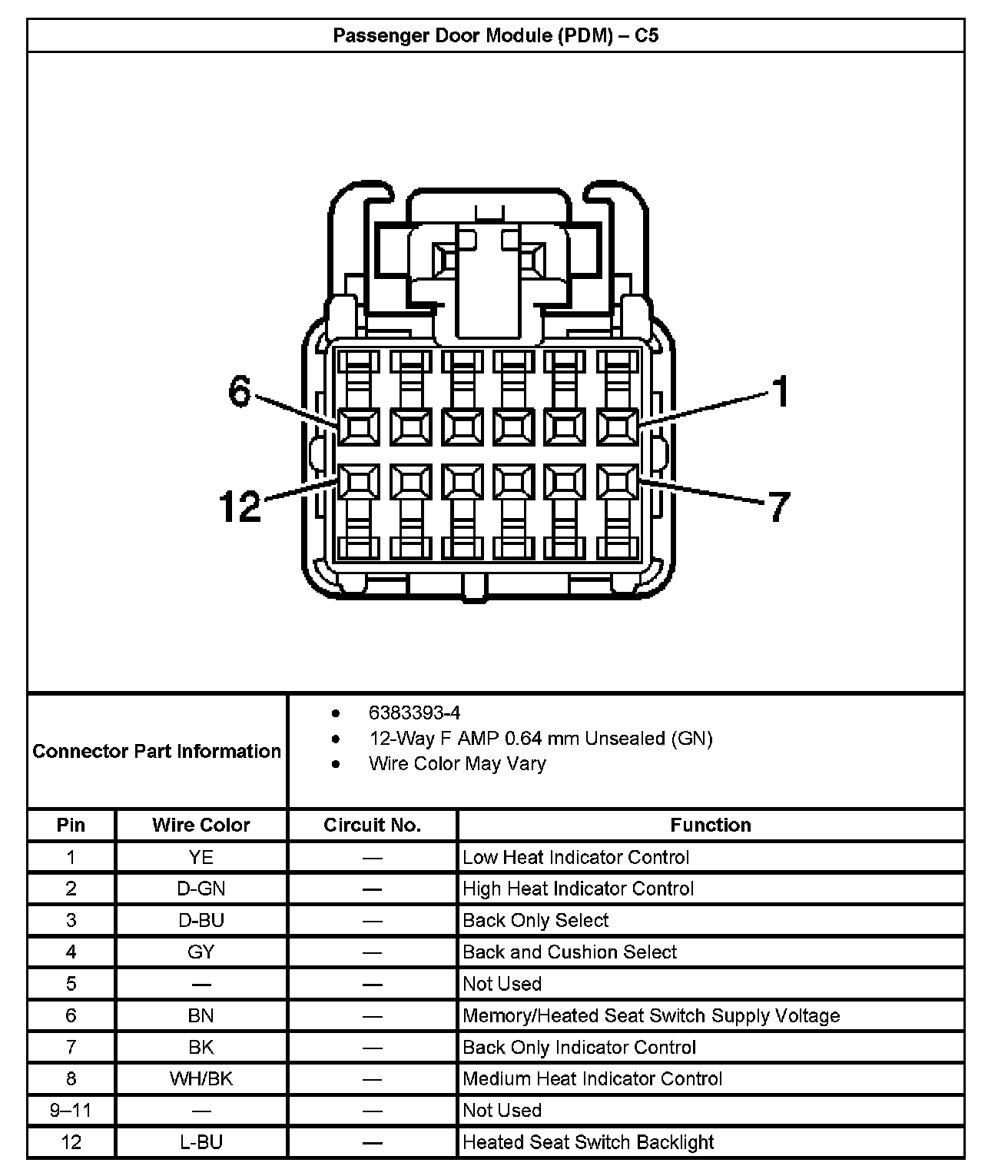

Passenger Door Module (PDM) - C5:
