Brake Lamp

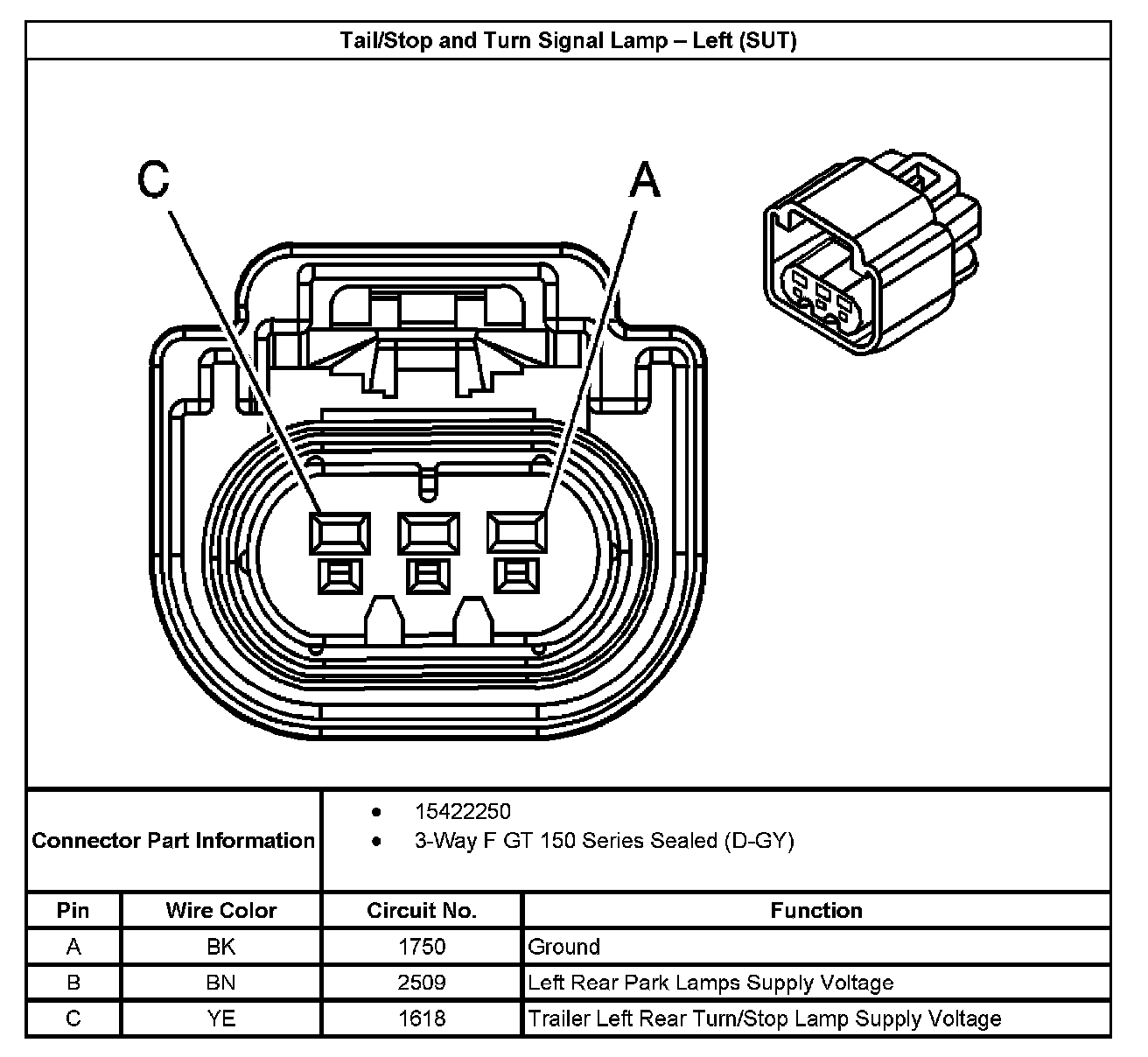

Tail/Stop And Turn Signal Lamp - Left (SUT):

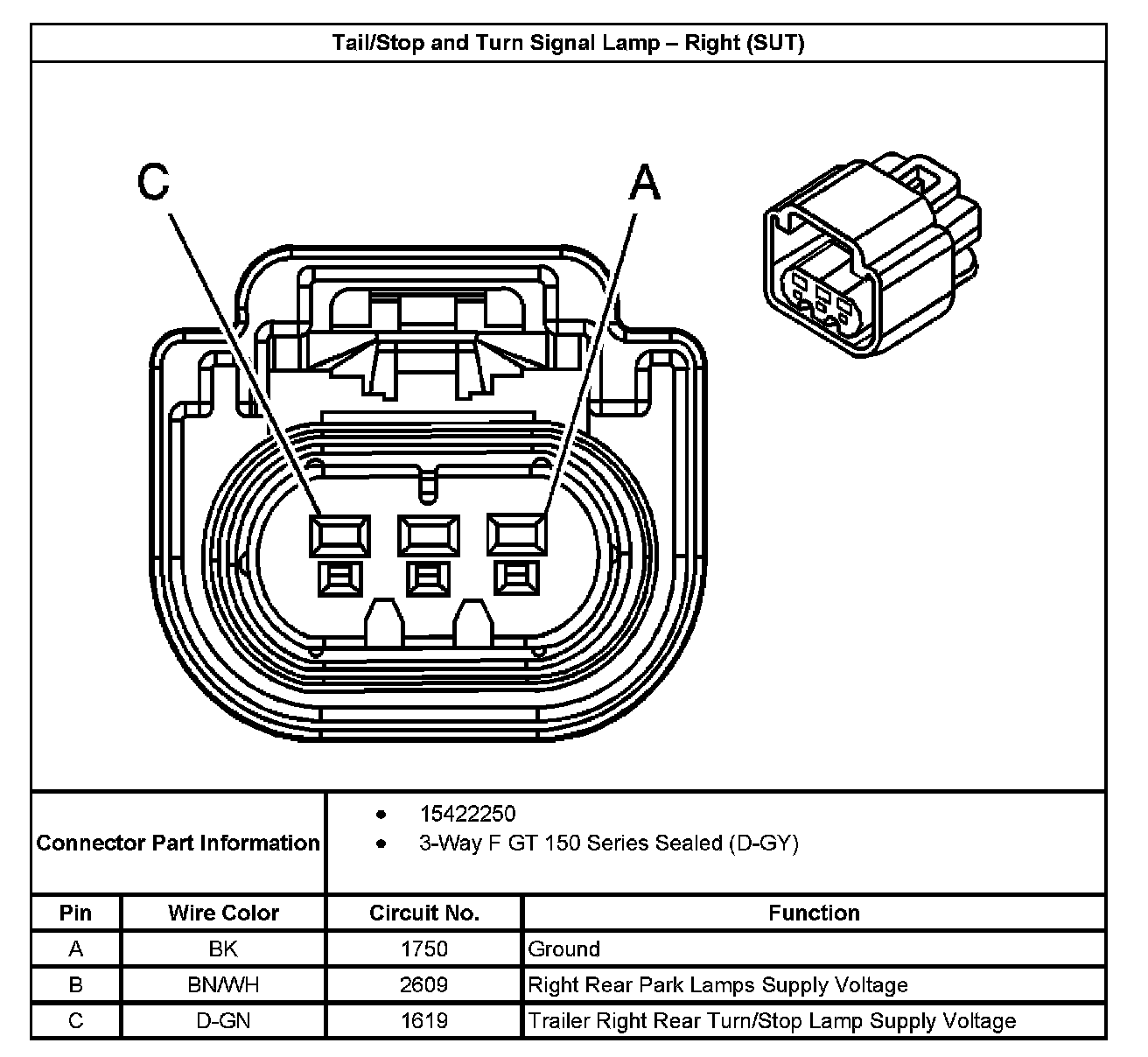

Tail/Stop And Turn Signal Lamp - Right (SUT):
