ABS Schematics

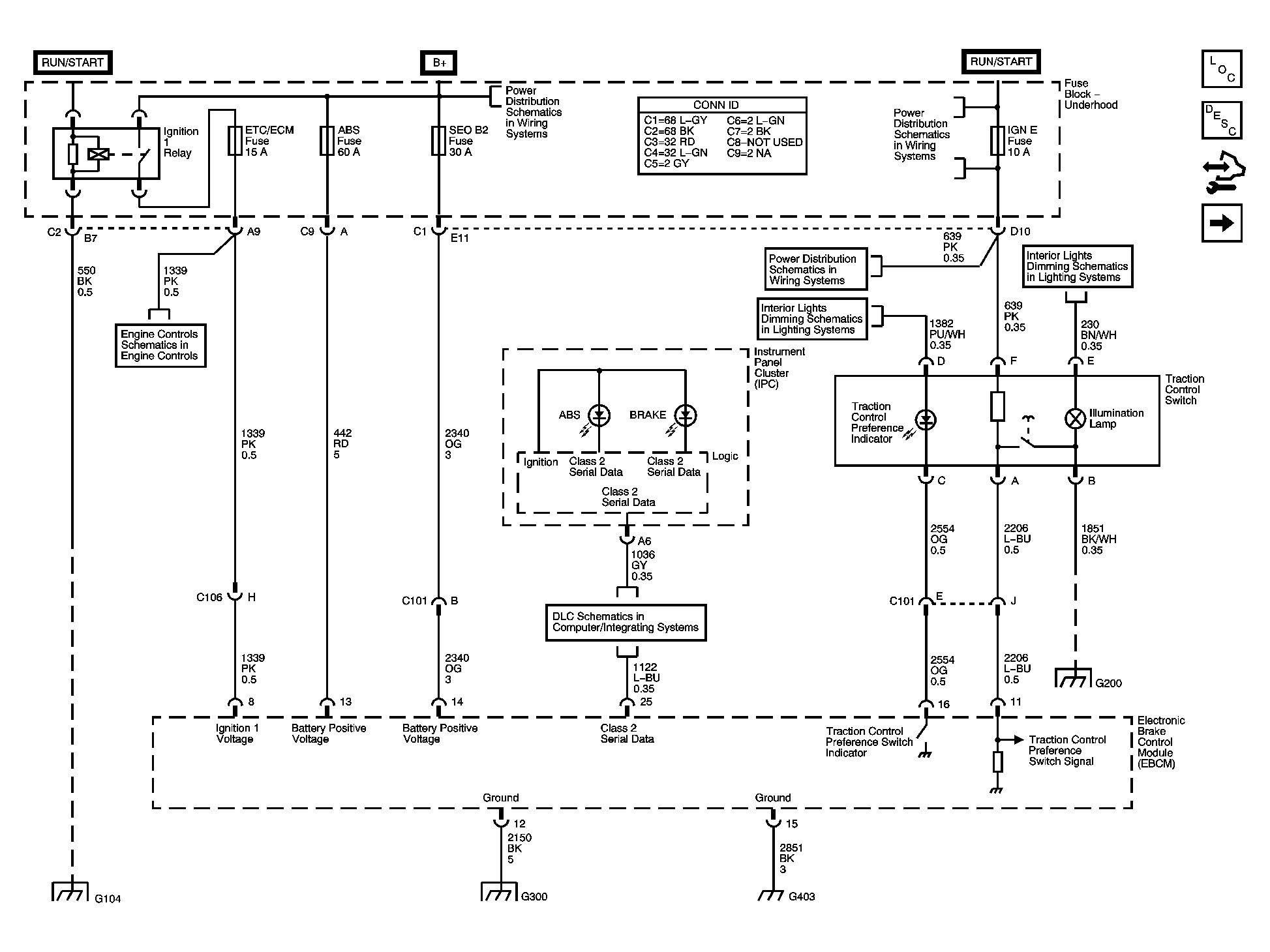

Fig 1: Power, Ground, Serial Data, Indicator Lamps, and Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

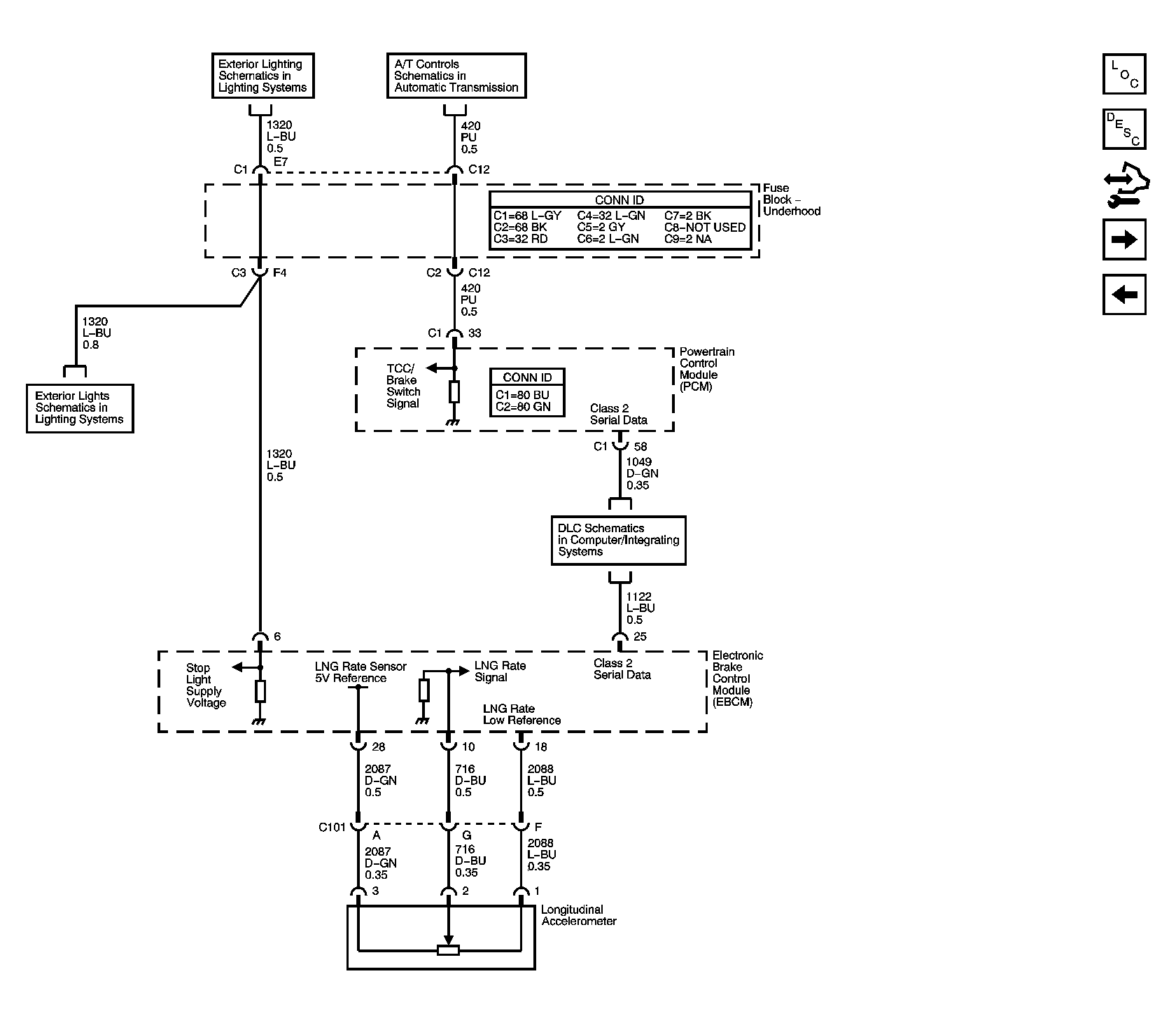

Fig 2: Stop Lamp Switch and Longitudinal Accelerometer Inputs

Courtesy of GENERAL MOTORS CORP.

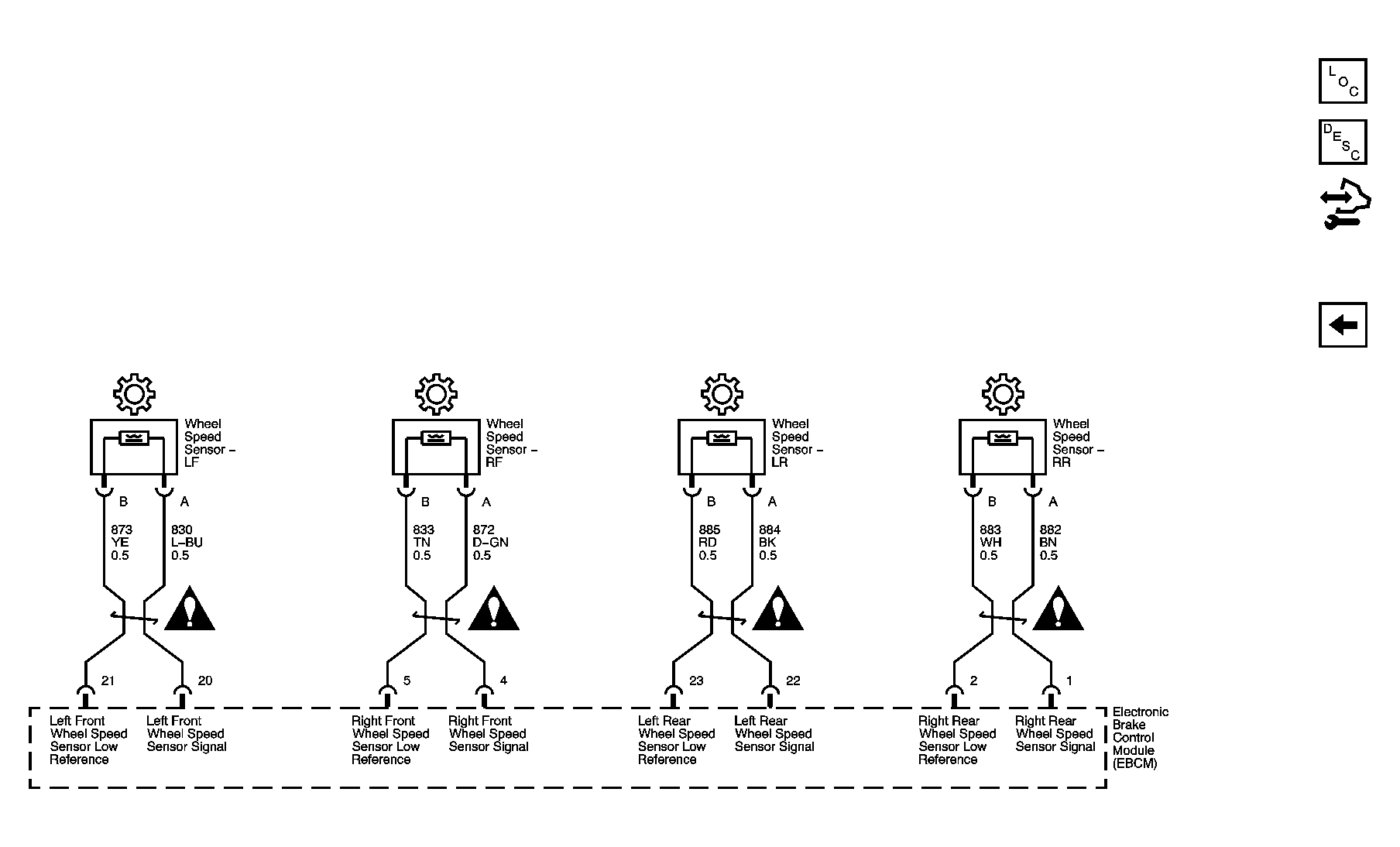

Fig 3: Wheel Speed Sensor Inputs

Courtesy of GENERAL MOTORS CORP.
