Internal Parts

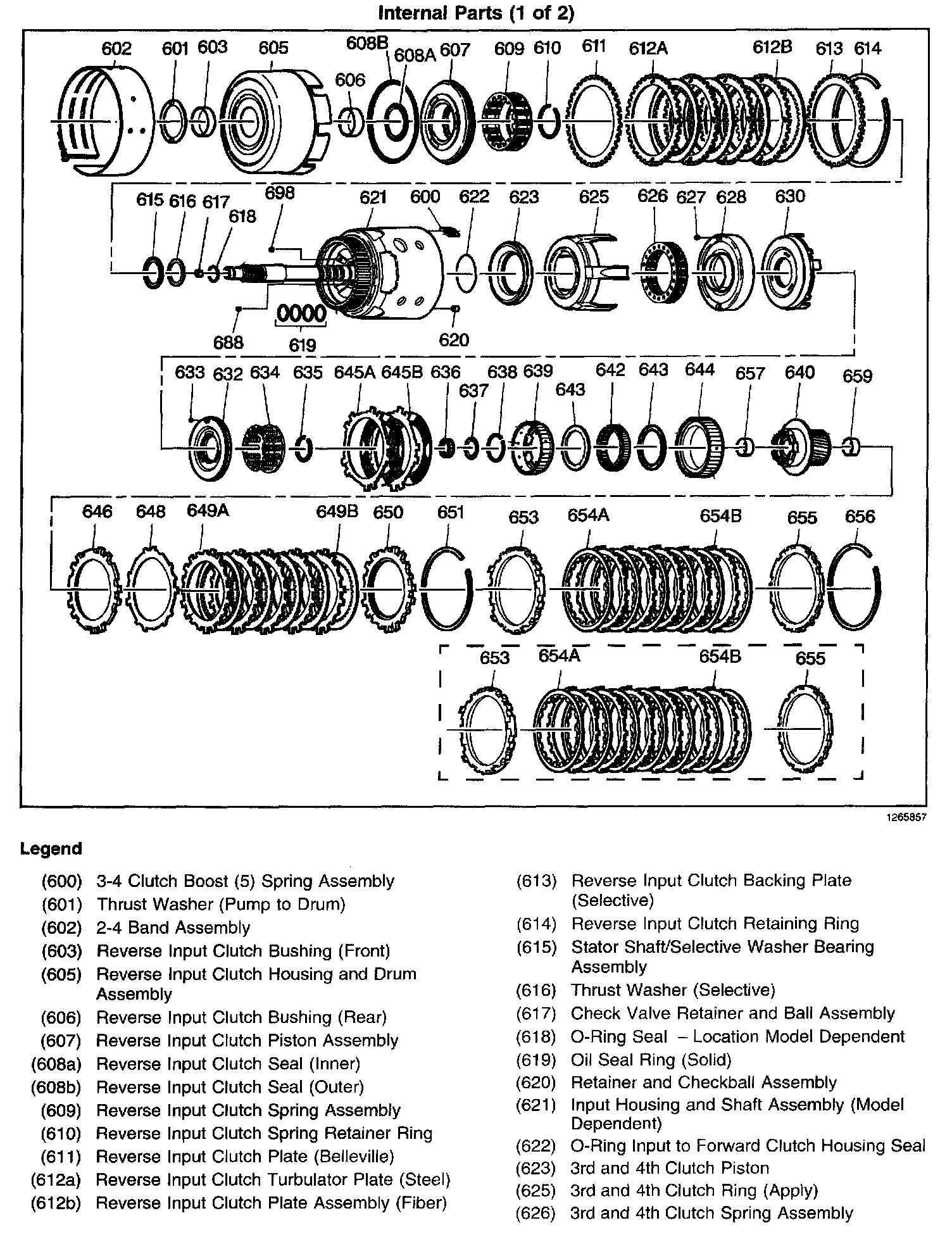

Internal Parts Part 1 (Part 1 Of 2):

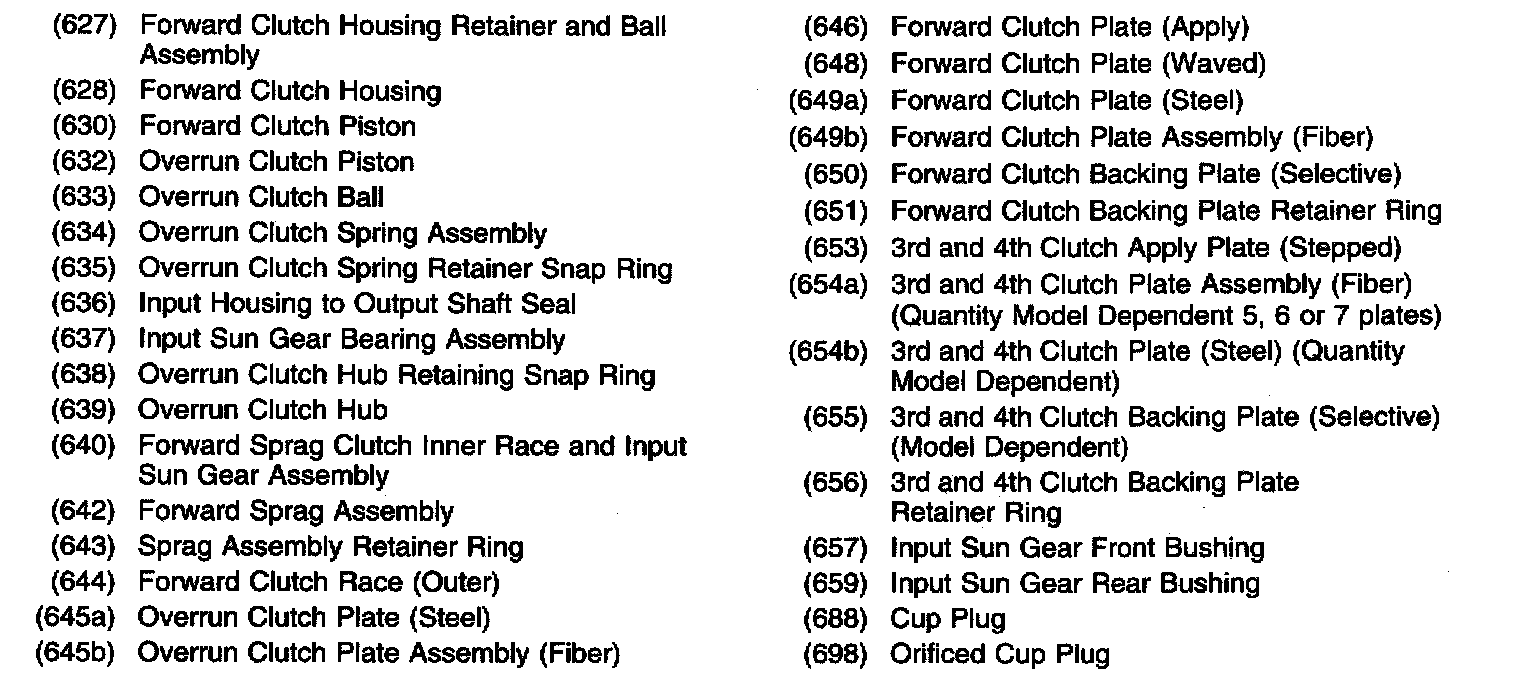

Internal Parts Part 1 (Part 2 Of 2):

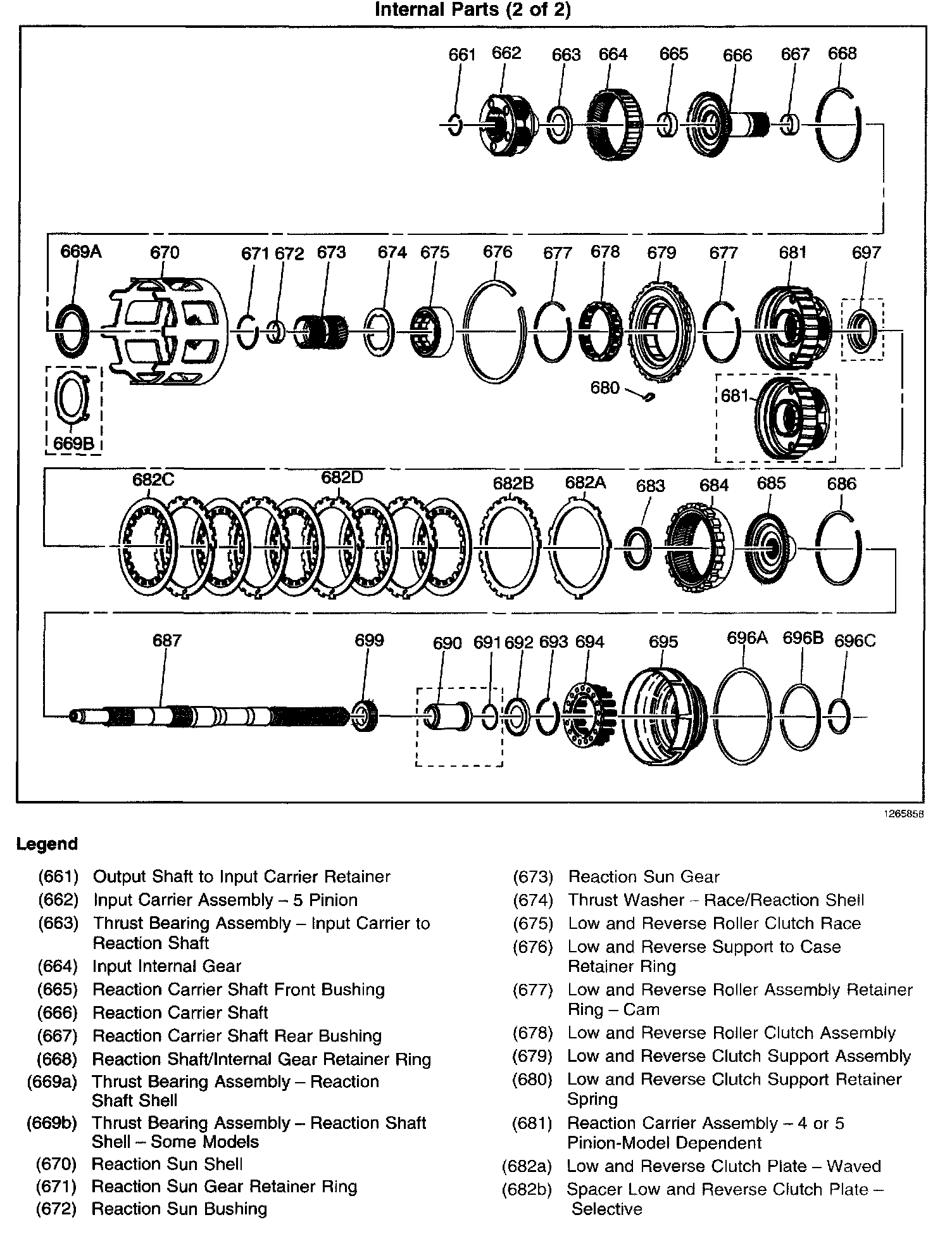

Internal Parts Part 2 (Part 1 Of 2):

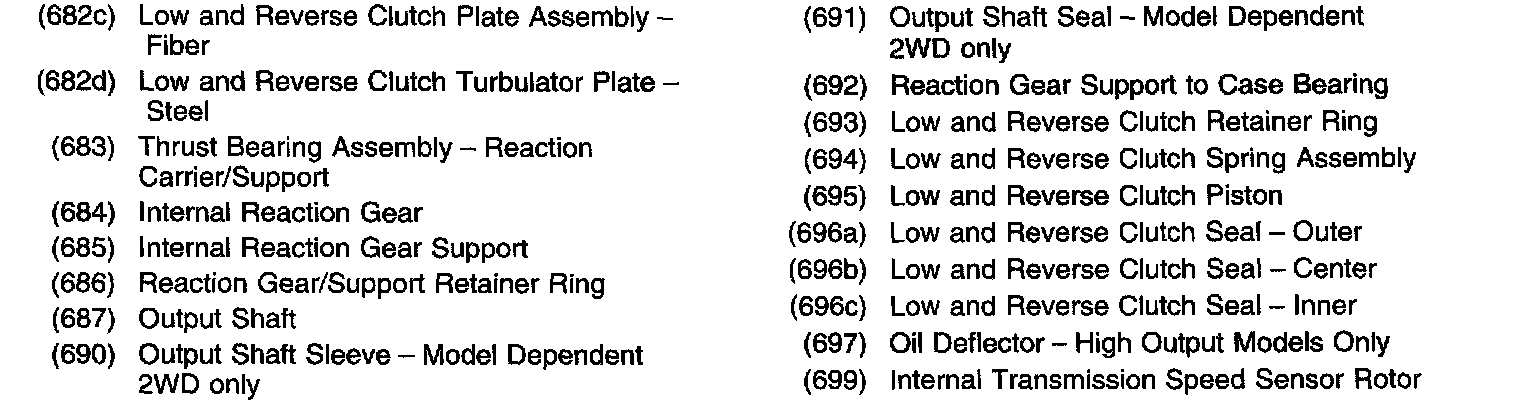

Internal Parts Part 2 (Part 2 Of 2):
