Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Keyless Entry
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Keyless Entry

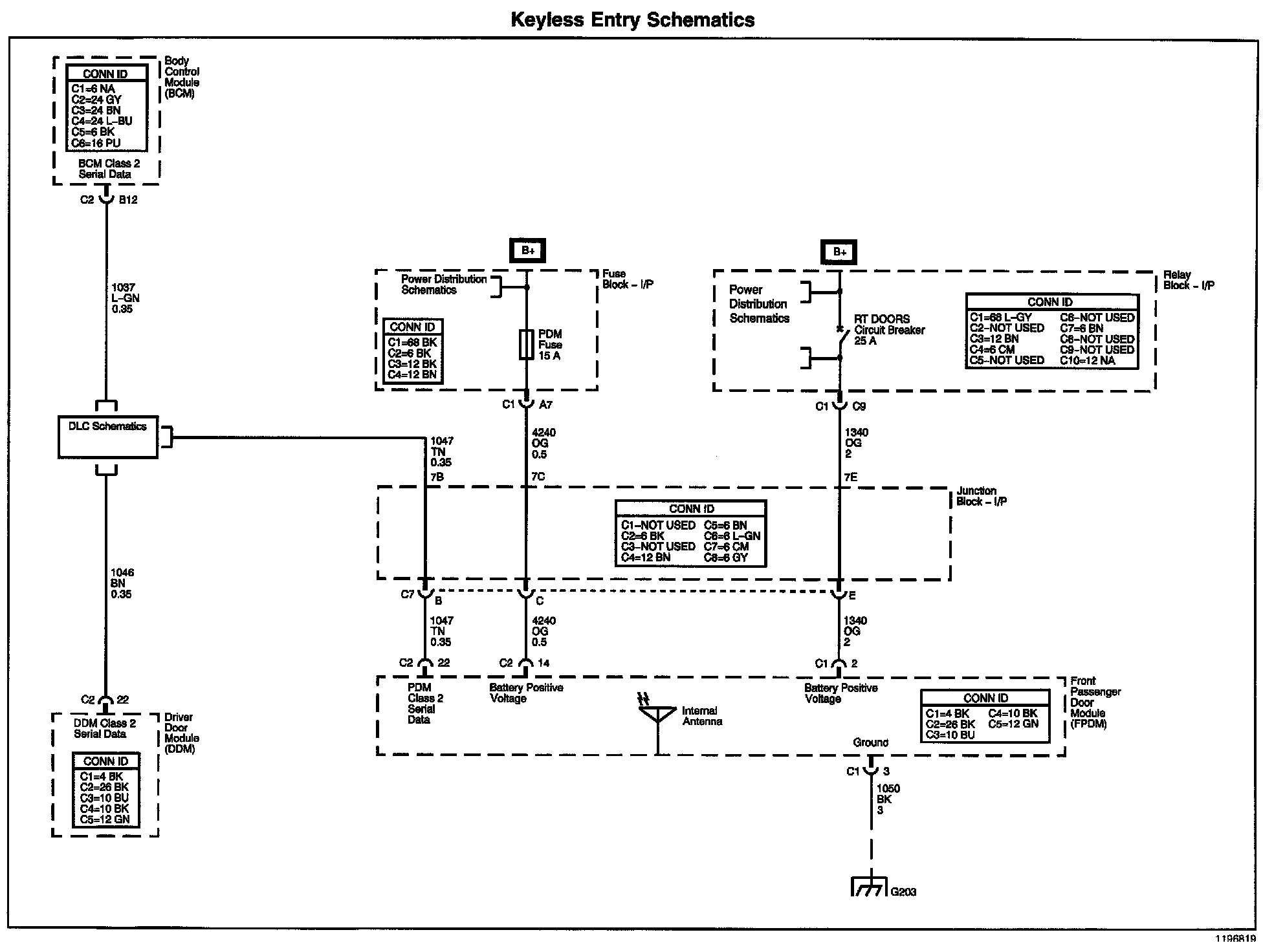

Keyless Entry Diagram:
