Outside Temperature Display Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Outside Temperature Display Sensor

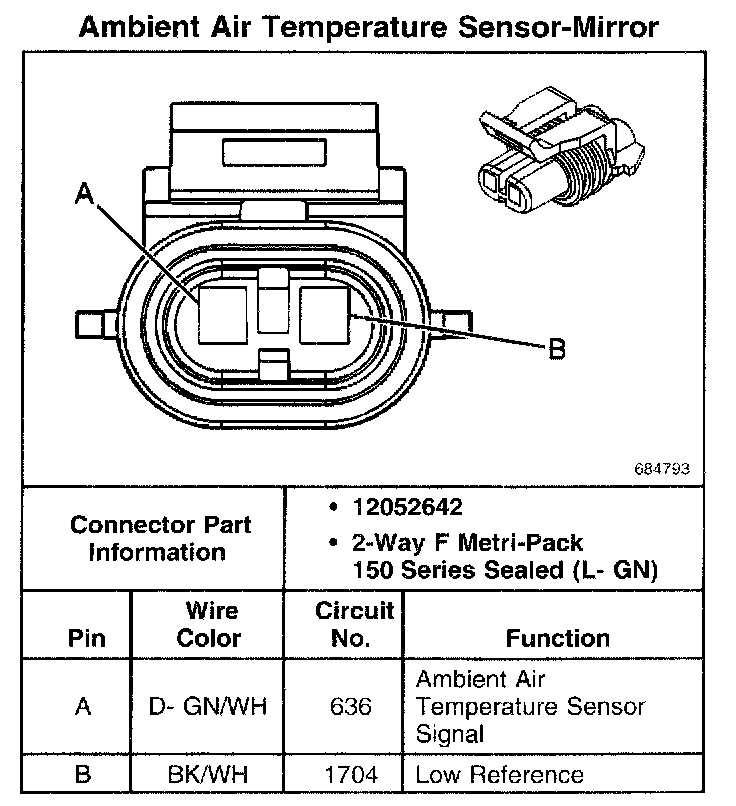

Ambient Air Temperature Sensor-Mirror:
