Map Light

Courtesy/Reading Lamp - Center:

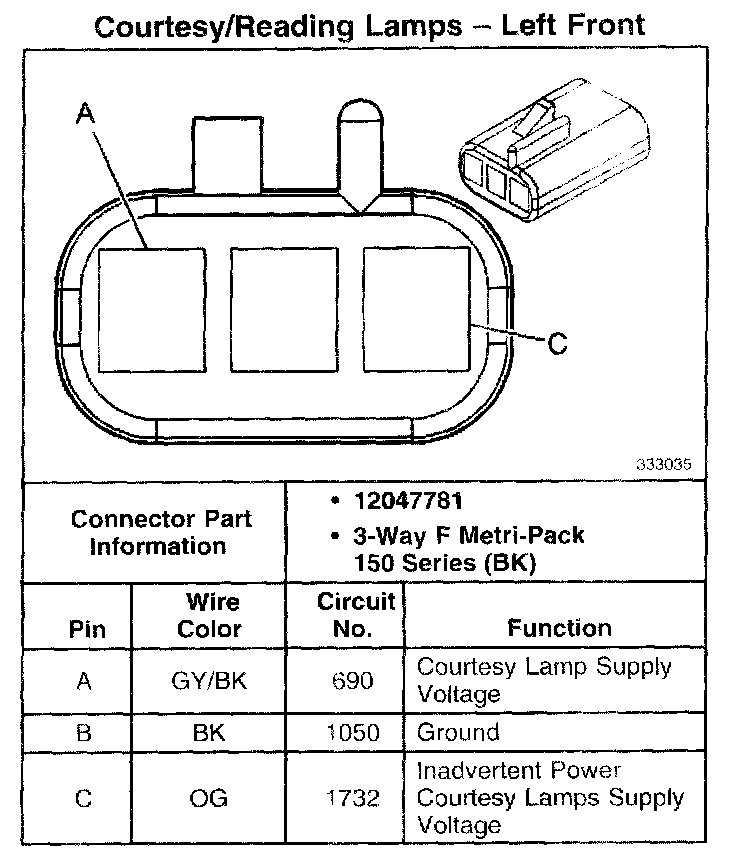

Courtesy/Reading Lamps - Left Front:



Courtesy/Reading Lamps - Right Front:



Courtesy/Reading Lamp - Rear:
