Front Passenger Door Module (FPDM) - C5

Front Passenger Door Module (FPDM) - C5 Part 1:



Front Passenger Door Module (FPDM) - C5 Part 2:

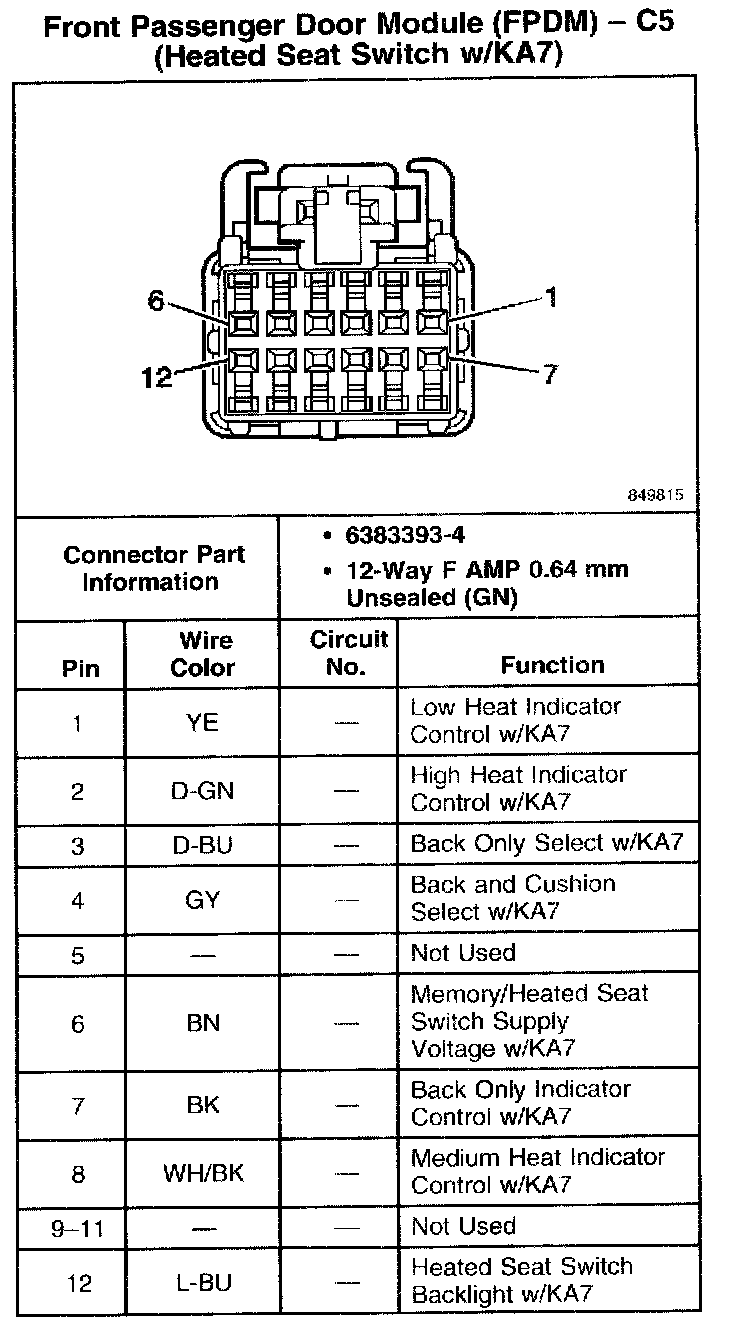

Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch With RPO Code KA7):
