Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

J 43442 Flywheel Holder

Important: Engine flywheel and crankshaft rear oil seal removal requires adequate space for removal. Mount the engine on a suitable engine stand which will properly space the engine in order to use the J 42841 to remove the crankshaft rear oil seal. If necessary remove the engine flywheel and crankshaft rear oil seal with the engine properly supported on the floor or on a bench.

Remove the J 43442, turn around and install the J 43442.

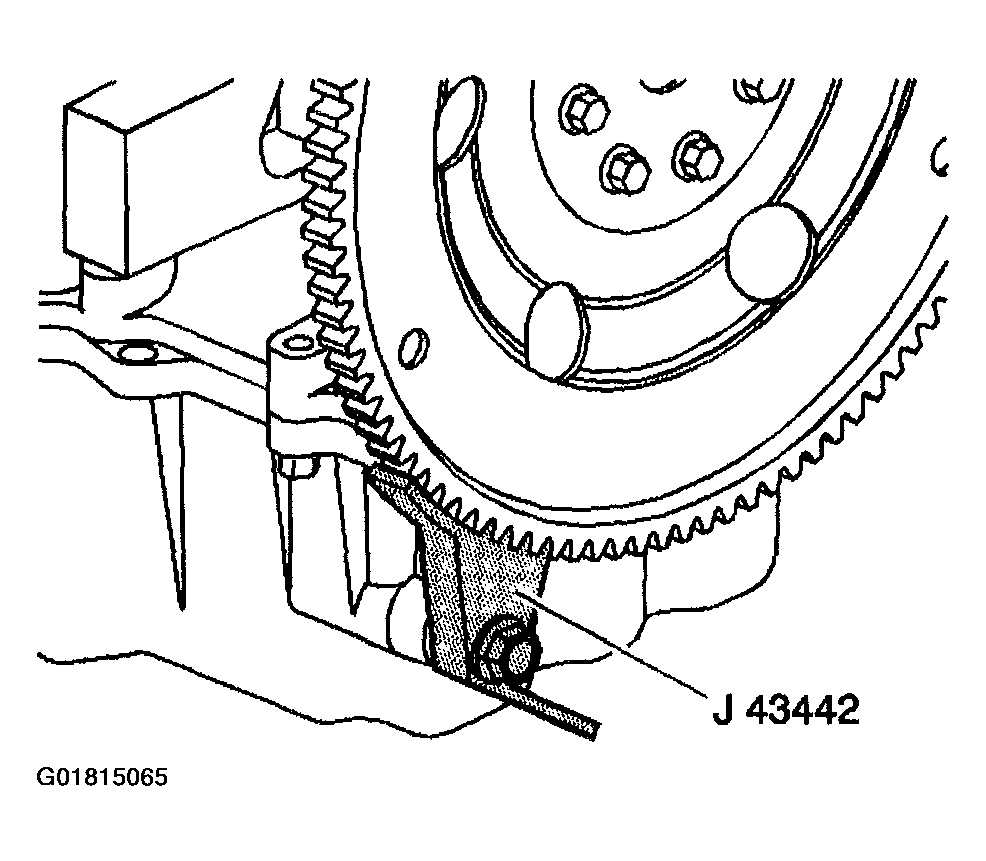

Fig 1: Locating J 43442

Courtesy of GENERAL MOTORS CORP.

Loosen the eight engine flywheel bolts.
Remove seven of the eight engine flywheel bolts leaving one bolt at the top of the crankshaft rotation.
Remove the J 43442.

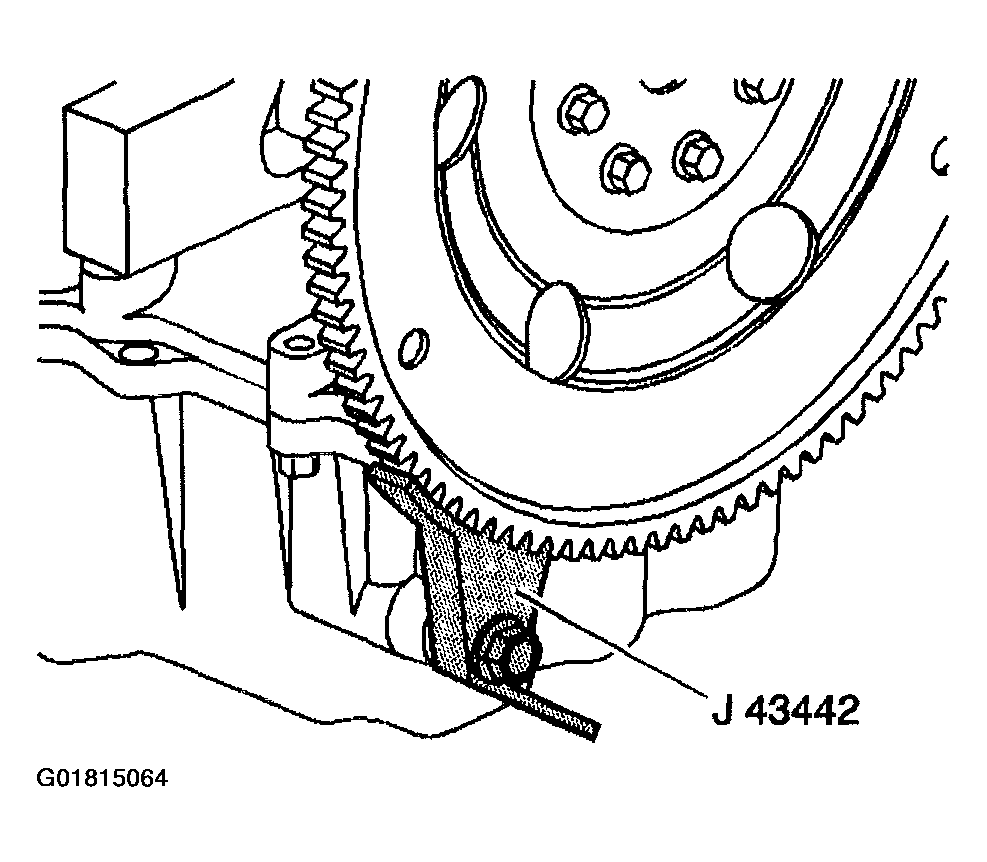

Fig 2: Locating J 43442
Courtesy of GENERAL MOTORS CORP.

Important: Do not drop the engine flywheel when removing the final bolt.
Grip the engine flywheel and remove the remaining bolt.

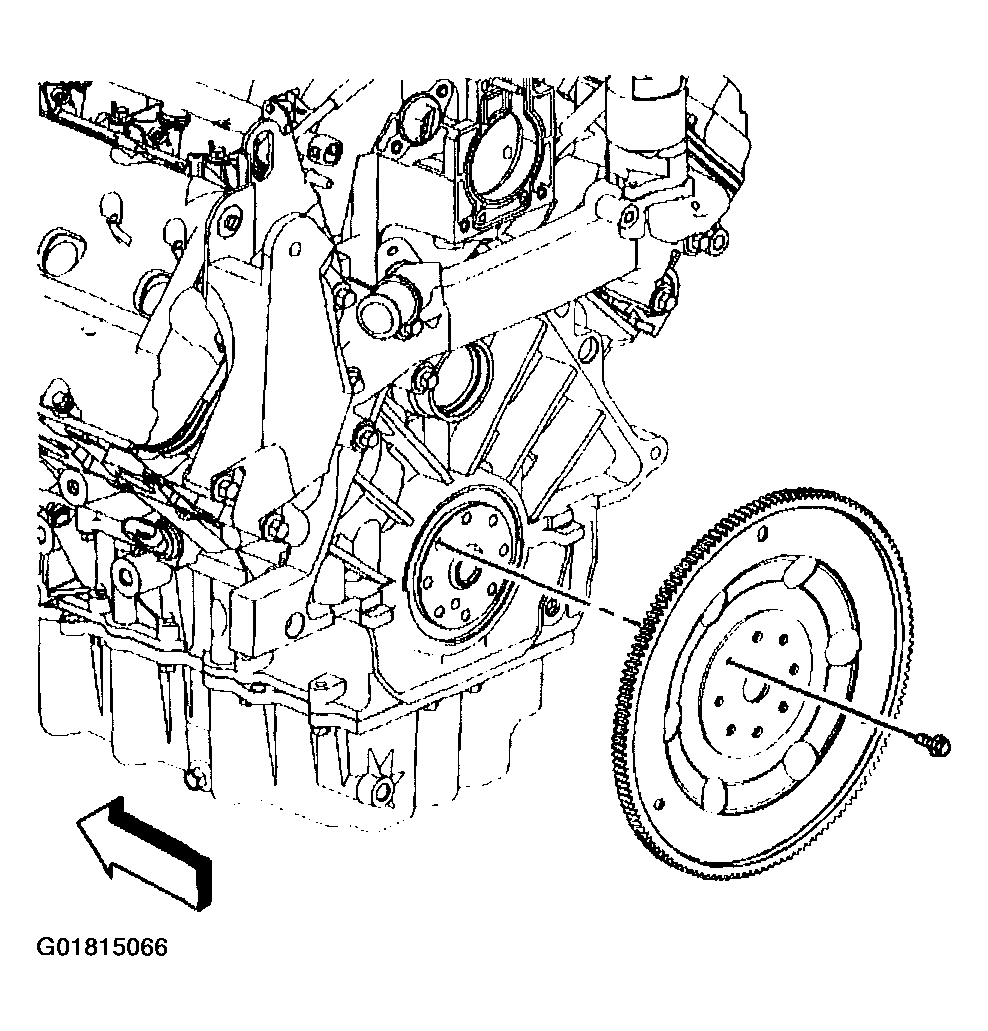

Fig 3: Removing Engine Flywheel
Courtesy of GENERAL MOTORS CORP.
