Hummer
>>
2003
>>
H2
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case - BW 4484
>>
Schematic and Routing Diagrams
>>
Transfer Case Control Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transfer Case Control Schematics

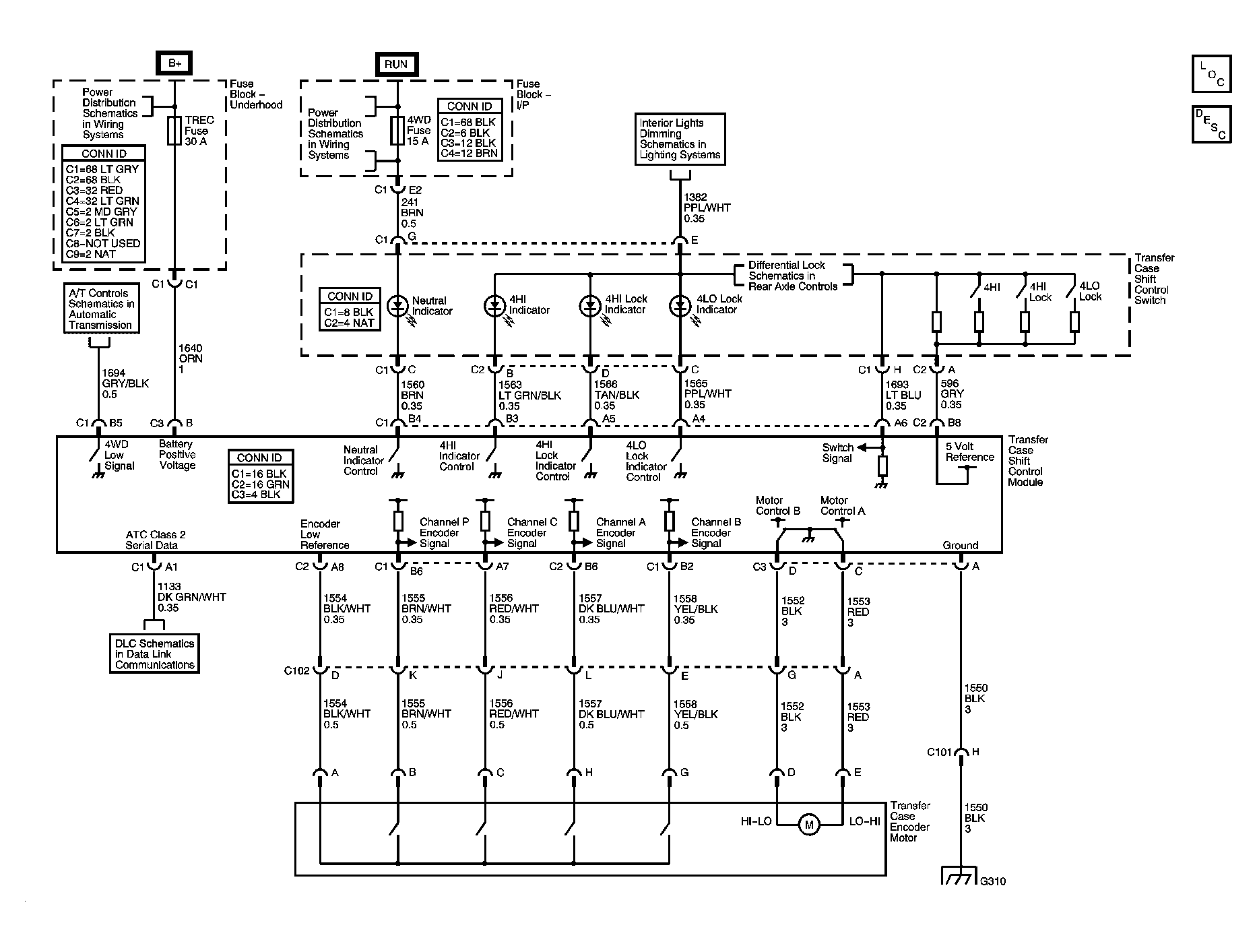

Fig 1: Transfer Case Control Schematic
Courtesy of GENERAL MOTORS CORP.
