DTC P0894: TCC Problem: Notes

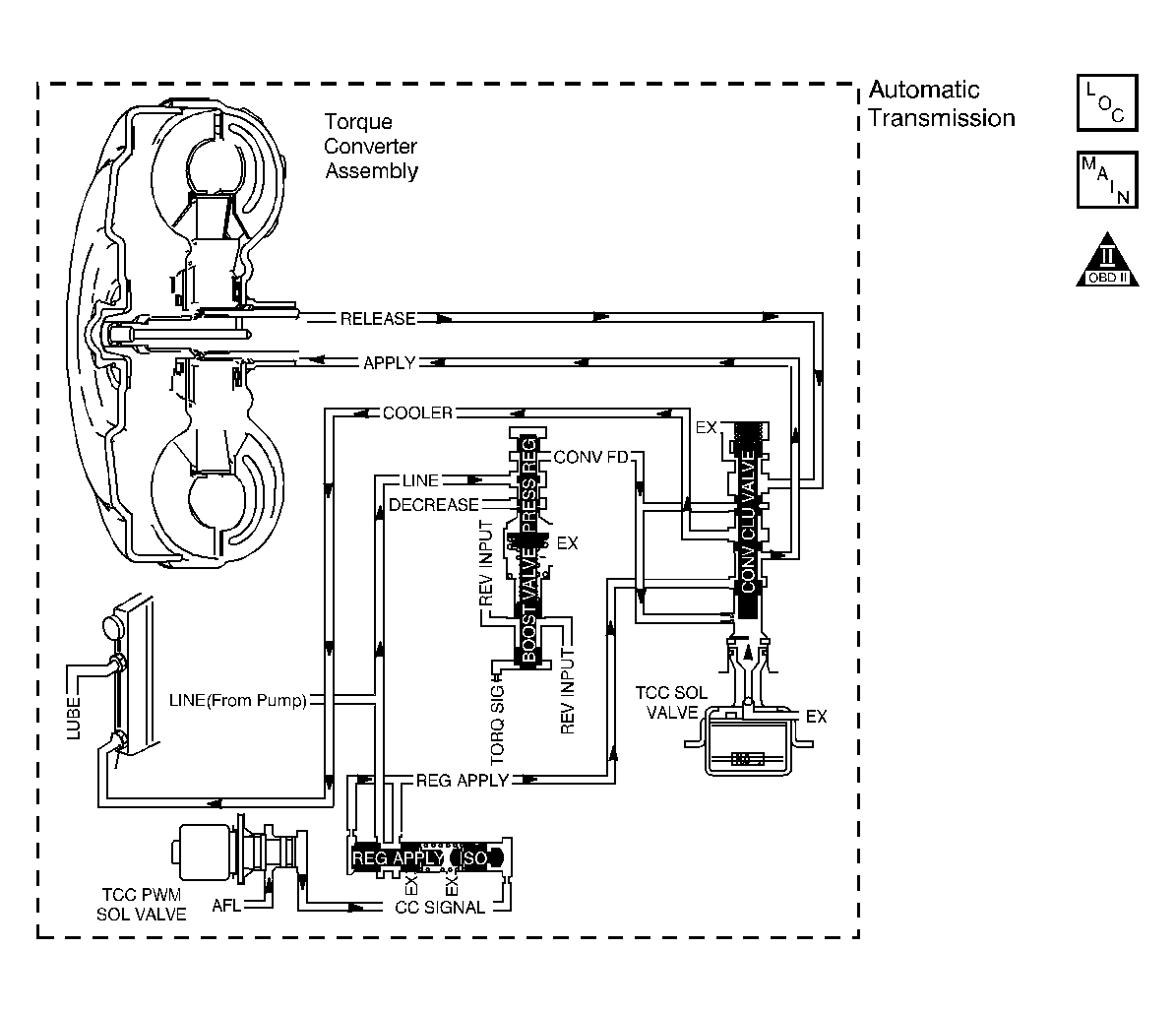

Fig 1: Torque Converter Clutch (TCC) Fluid Diagram

GM42275

Courtesy of GENERAL MOTORS CORP.
