Headlights Schematics

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

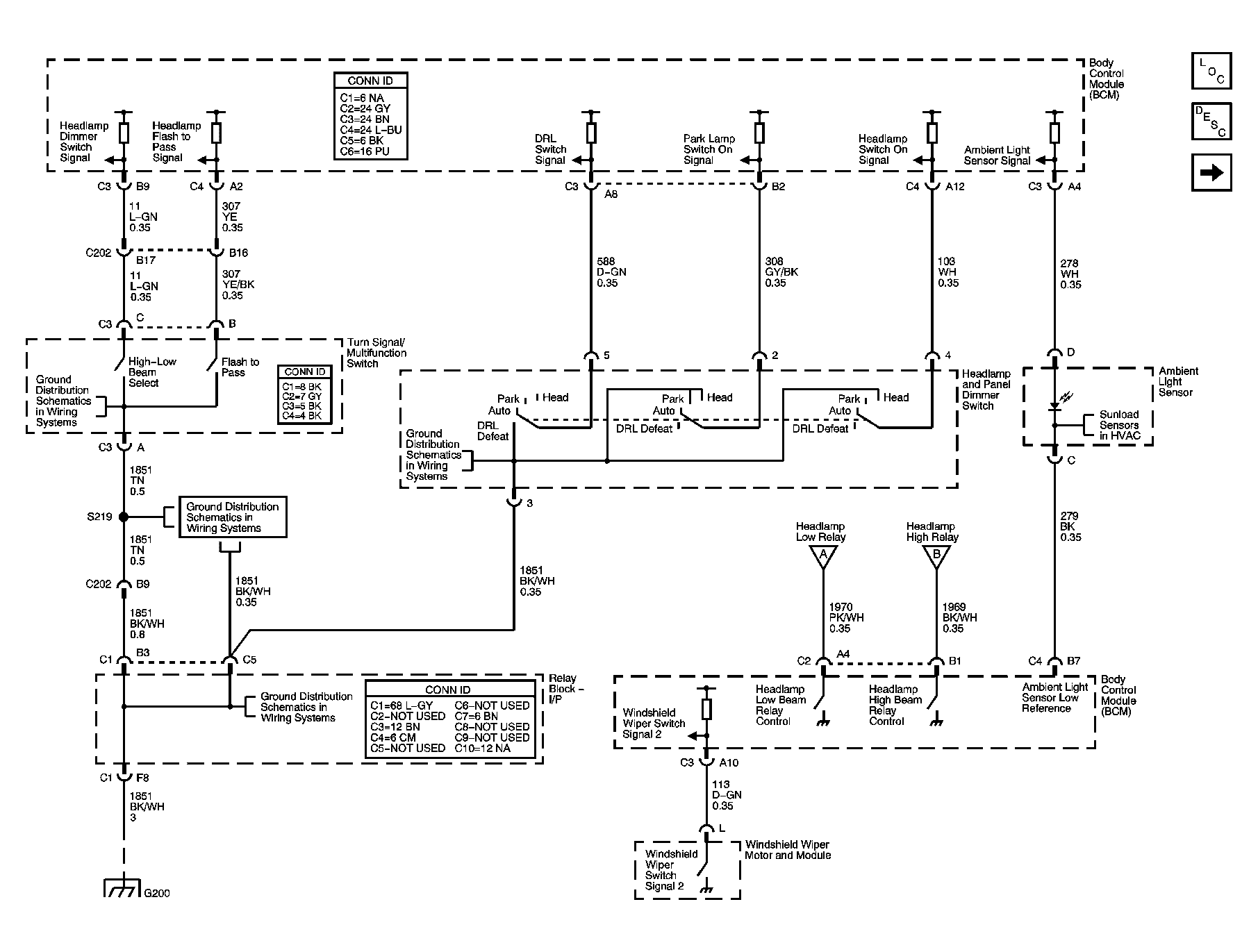

Fig 1: Headlamp Controls, Switches, and Ambient Light Sensor
GM1196401Courtesy of GENERAL MOTORS CORP.
Fig 2: Headlamps
GM1196406Courtesy of GENERAL MOTORS CORP.
