Scan Tool Data List
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

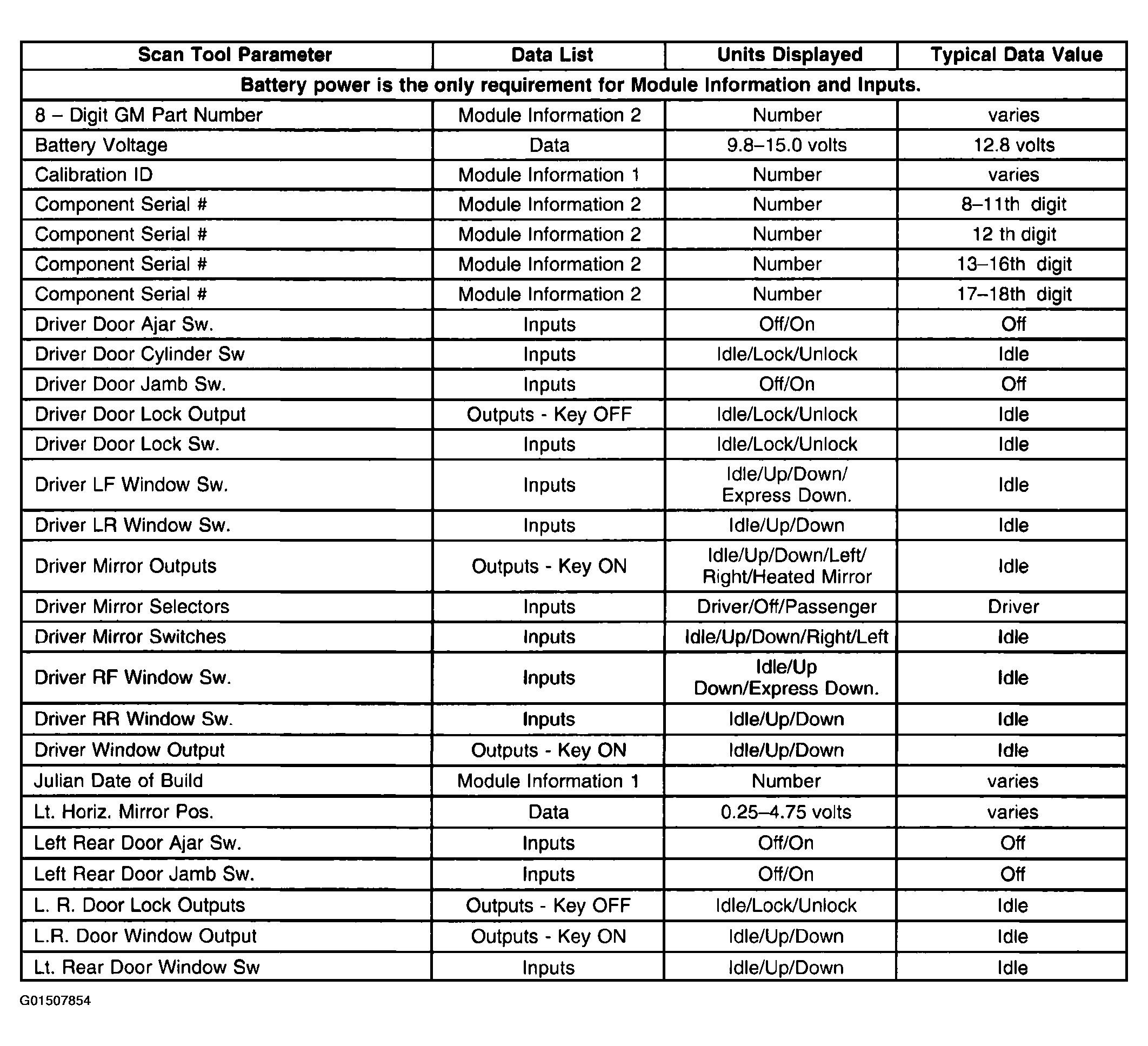

Fig 1: Driver Door Module Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

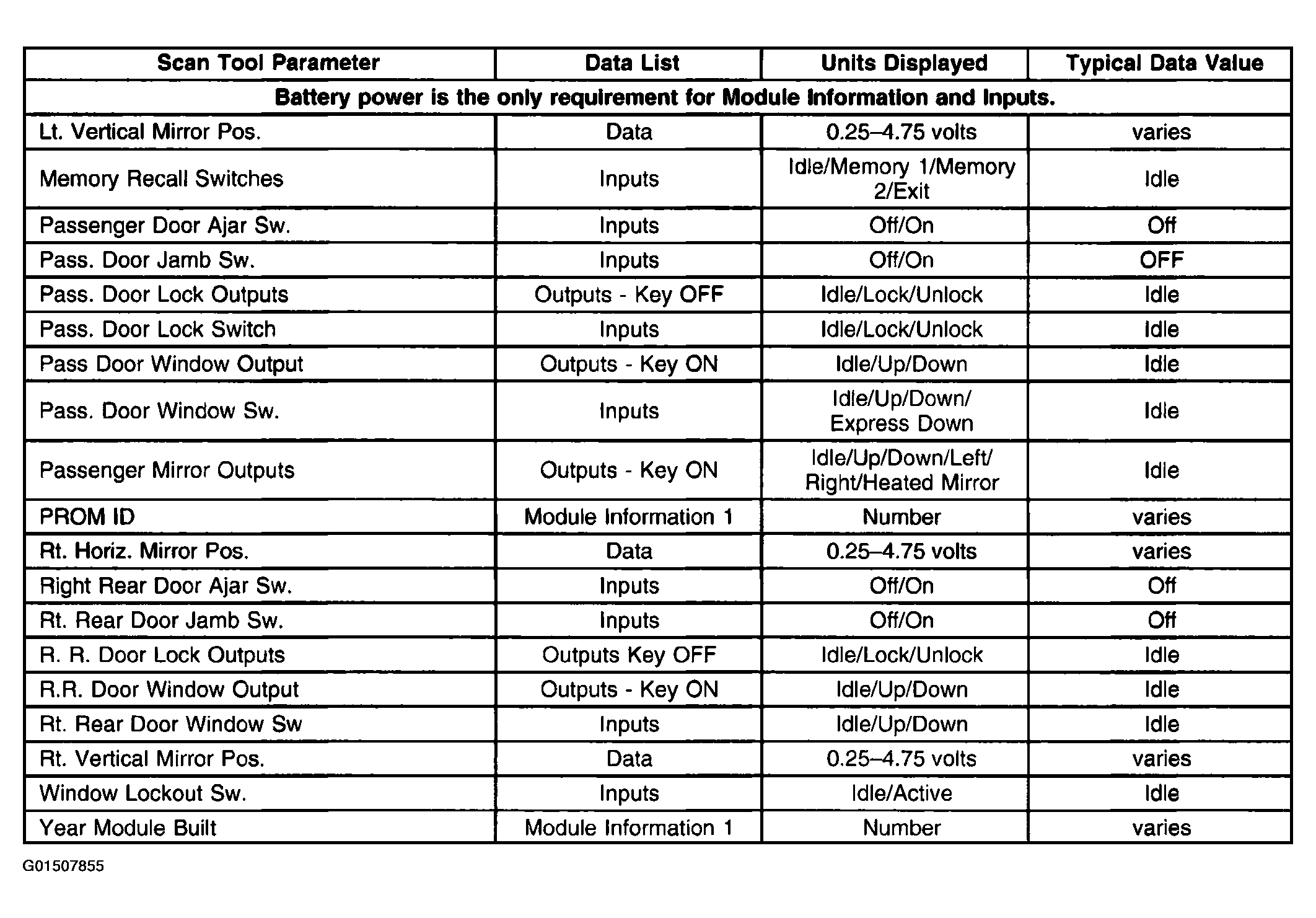

Fig 2: Driver Door Module Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

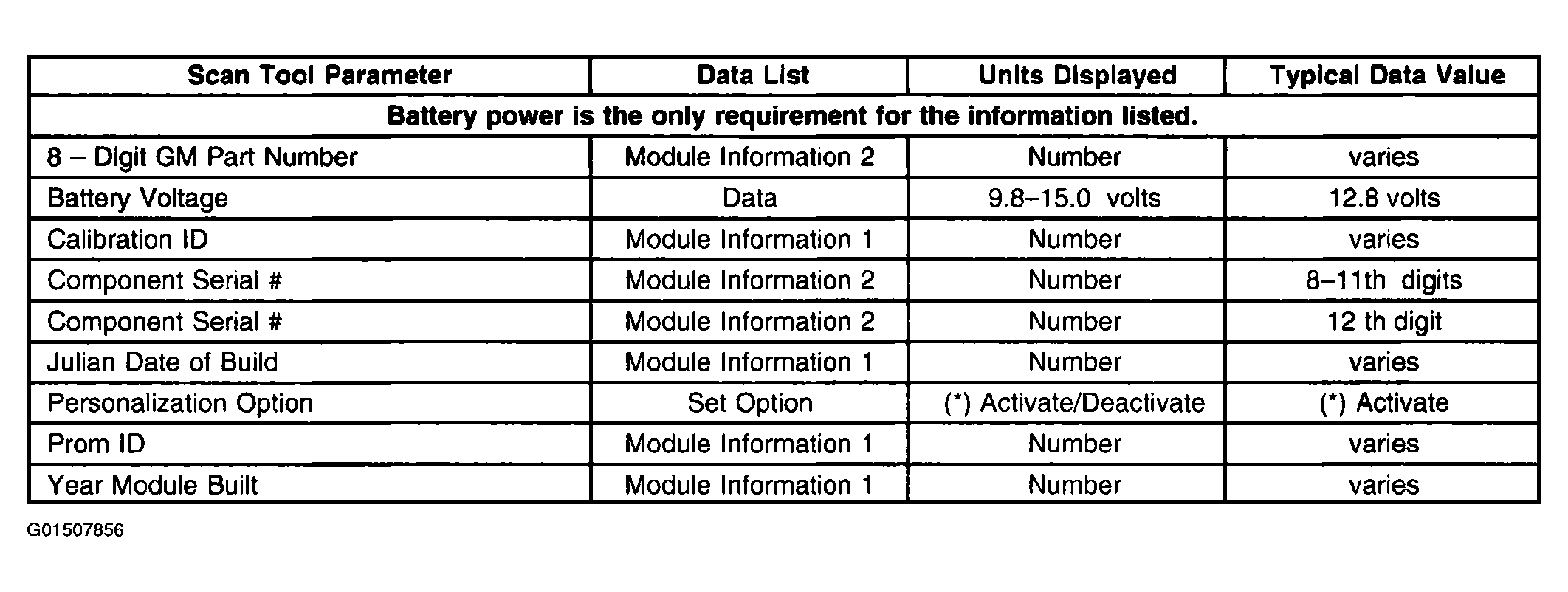

Fig 3: Dash Integration Module Scan Tool Data List
