Section 286 (Manual Transaxle [Shift Mechanism])
>>
Shift Mechanism Removal/Installation
>>
Main Shift Cable and Main Select Cable Removal Note
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Main Shift Cable and Main Select Cable Removal Note
WARNING:
This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Remove the both shift cable end and select cable end using a fastener remover.

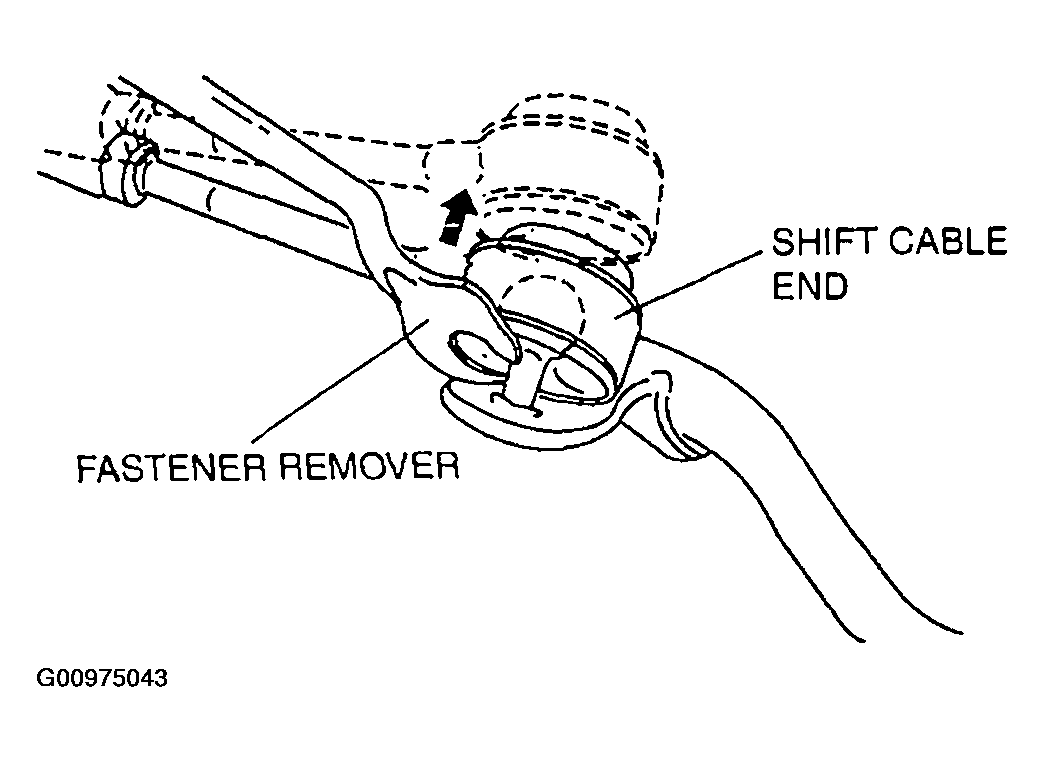

Fig 1: Removing Shift Cable End And Select Cable End Using A Wrench
Courtesy of MAZDA MOTORS CORP.
