Horns Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn - Low Note |
| 2 |
Horn - High Note |
| 3 |
Horn Connector - High Note |
| 4 |
Forward Lamp Harness |

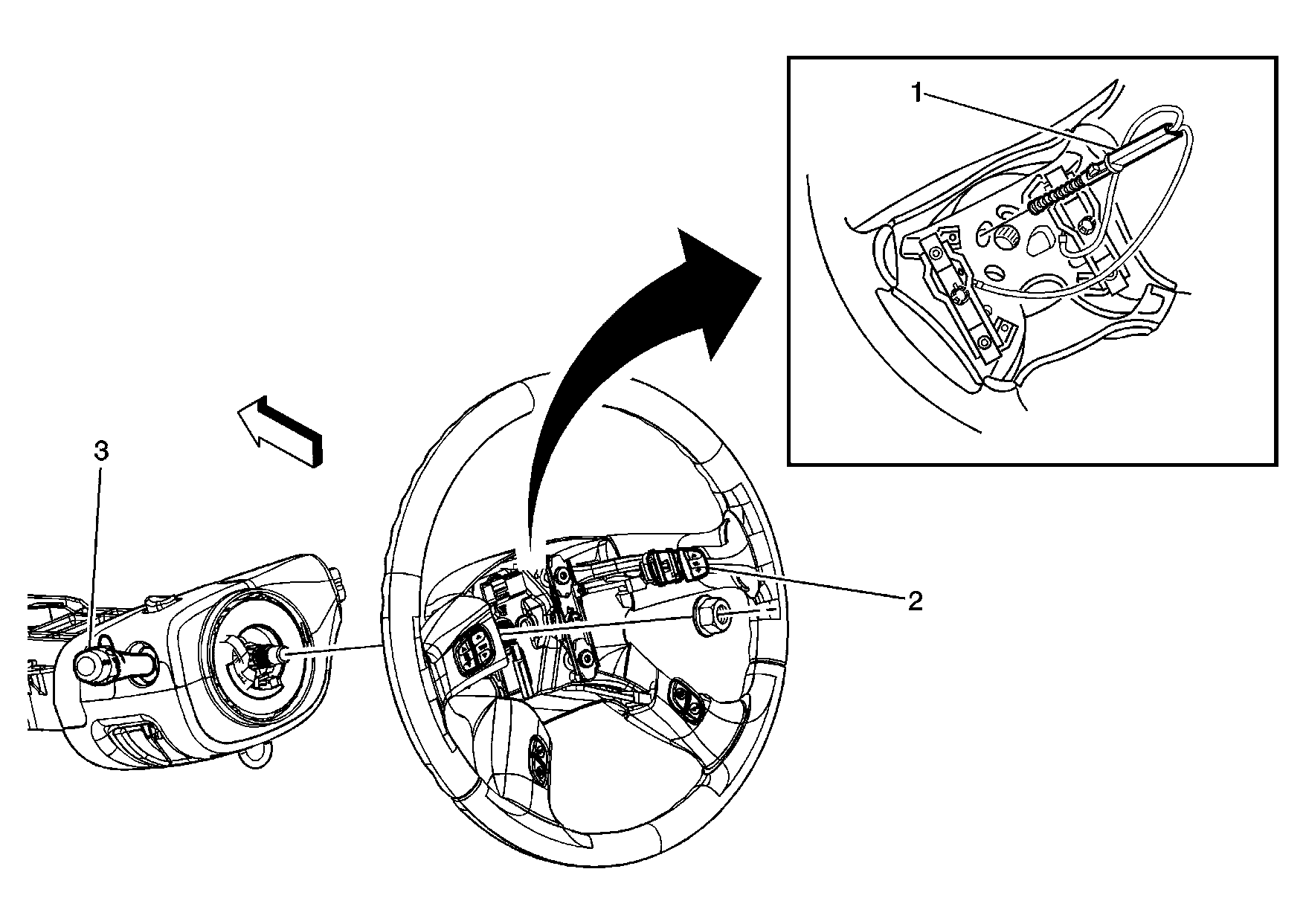

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn Switch |
| 2 |
Steering Wheel Controls |
| 3 |
Turn Signal/Multifunction Switch |
