Axle Preload & Backlash Specifications

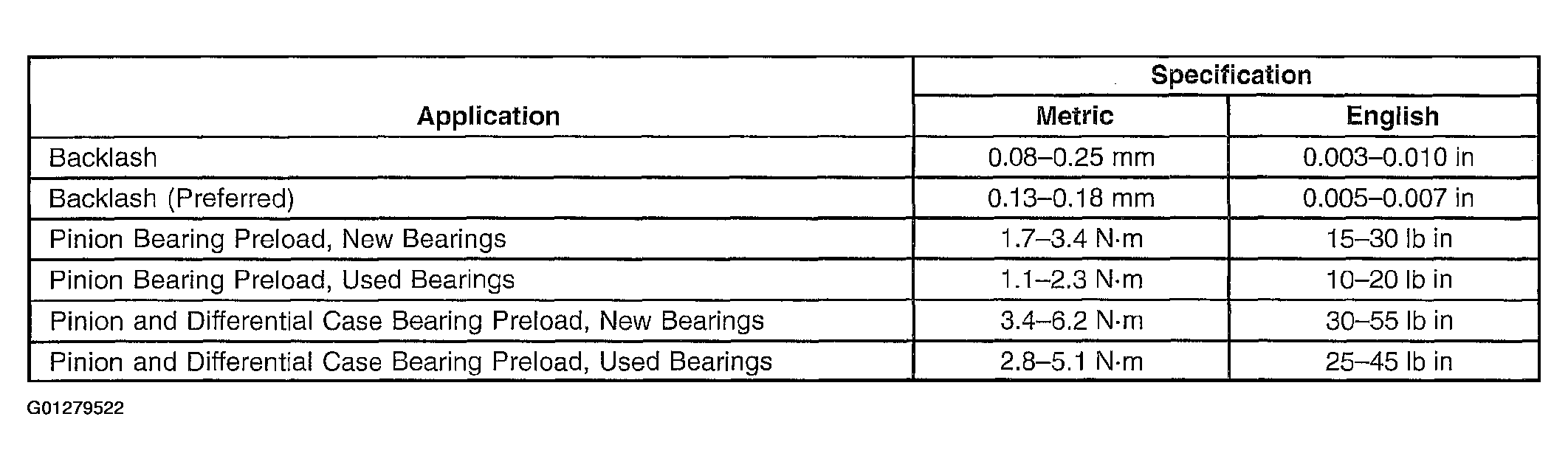

Fig 1: Axle Preload & Backlash Specifications Table
G01279522Courtesy of GENERAL MOTORS CORP.
