A/T Inline 20-Way Connector, Engine Side

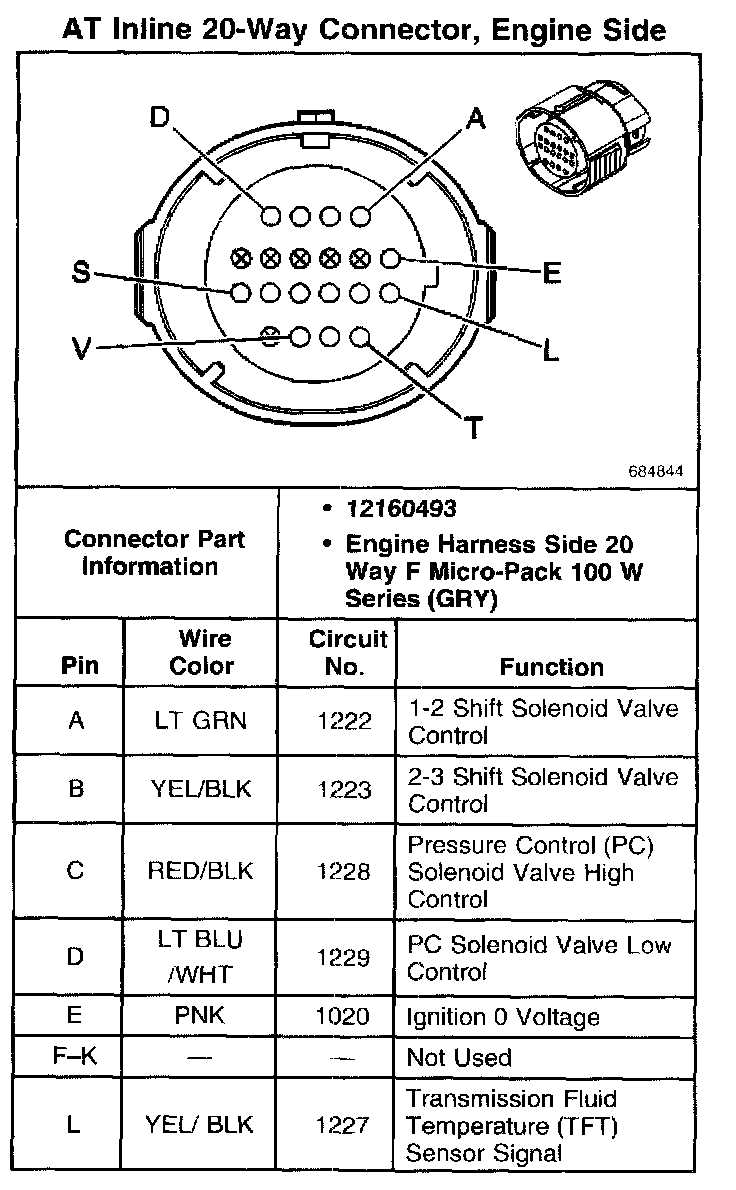

AT Inline 20-way Connector, Engine Side Part 1:

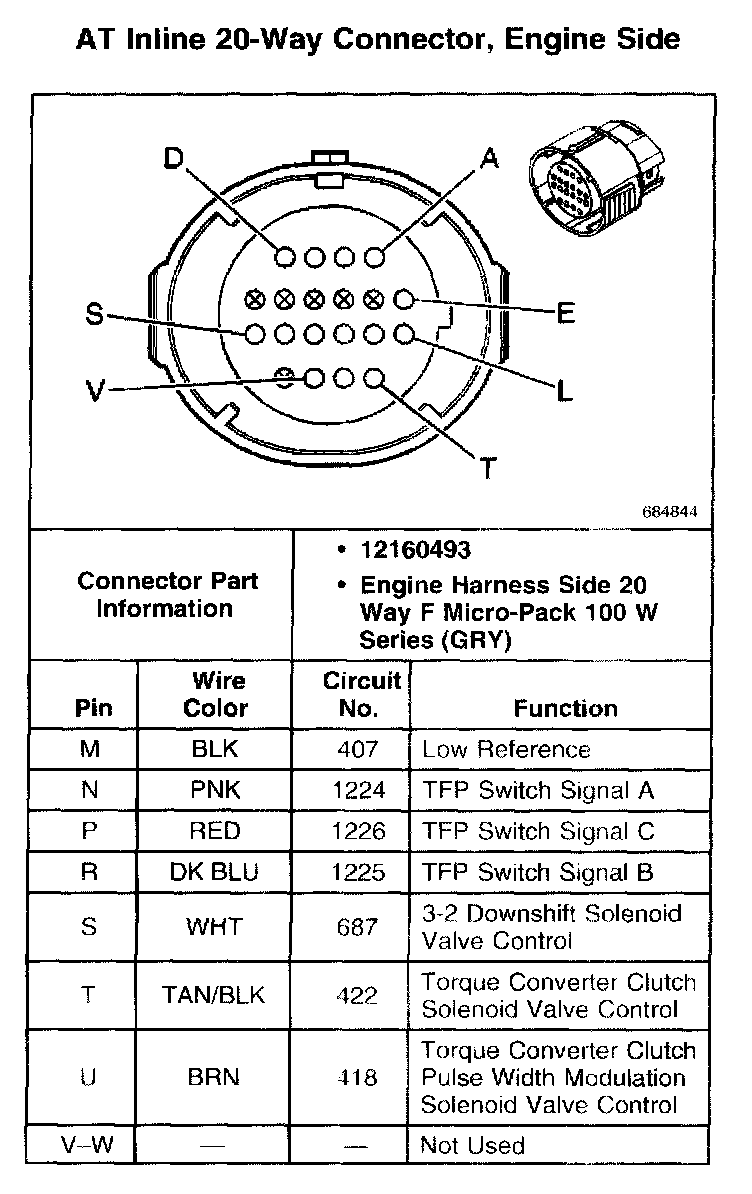

AT Inline 20-way Connector, Engine Side Part 2:
