Engine Block - Right Side View

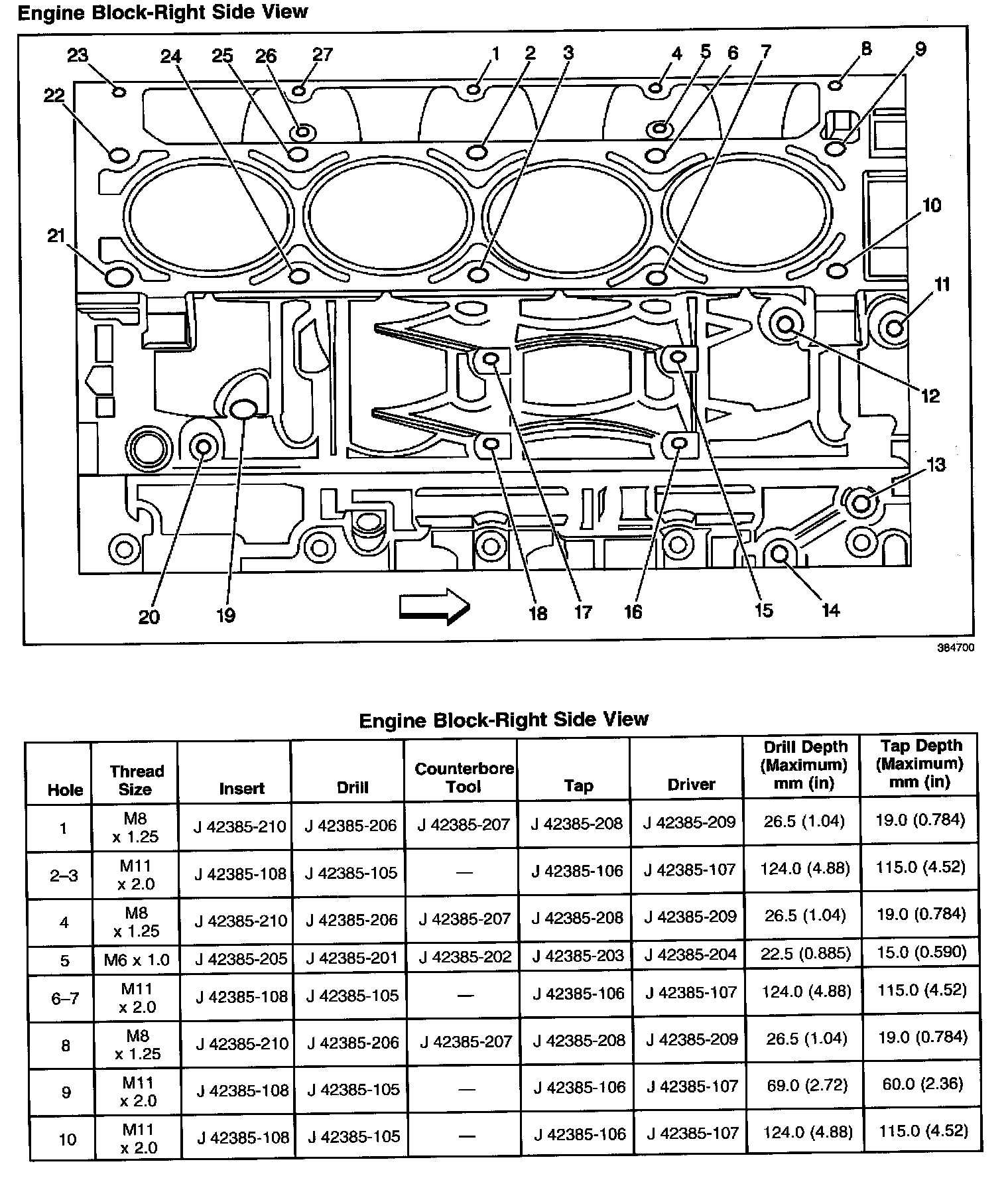

Engine Block - Right Side View Part 1:

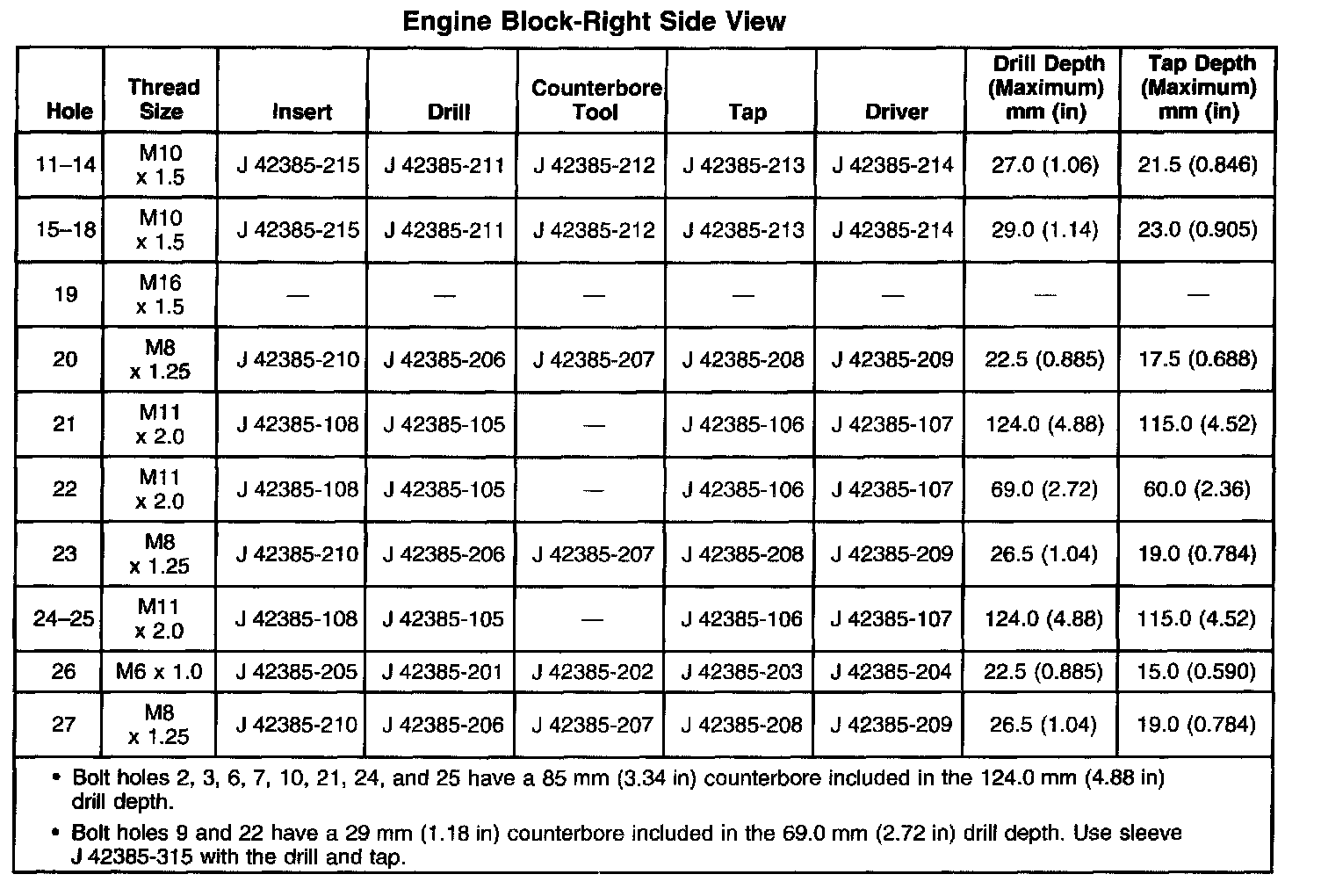

Engine Block - Right Side View Part 2:
