Cellular Phone

Cellular Microphone:



Onstar Button Assembly:

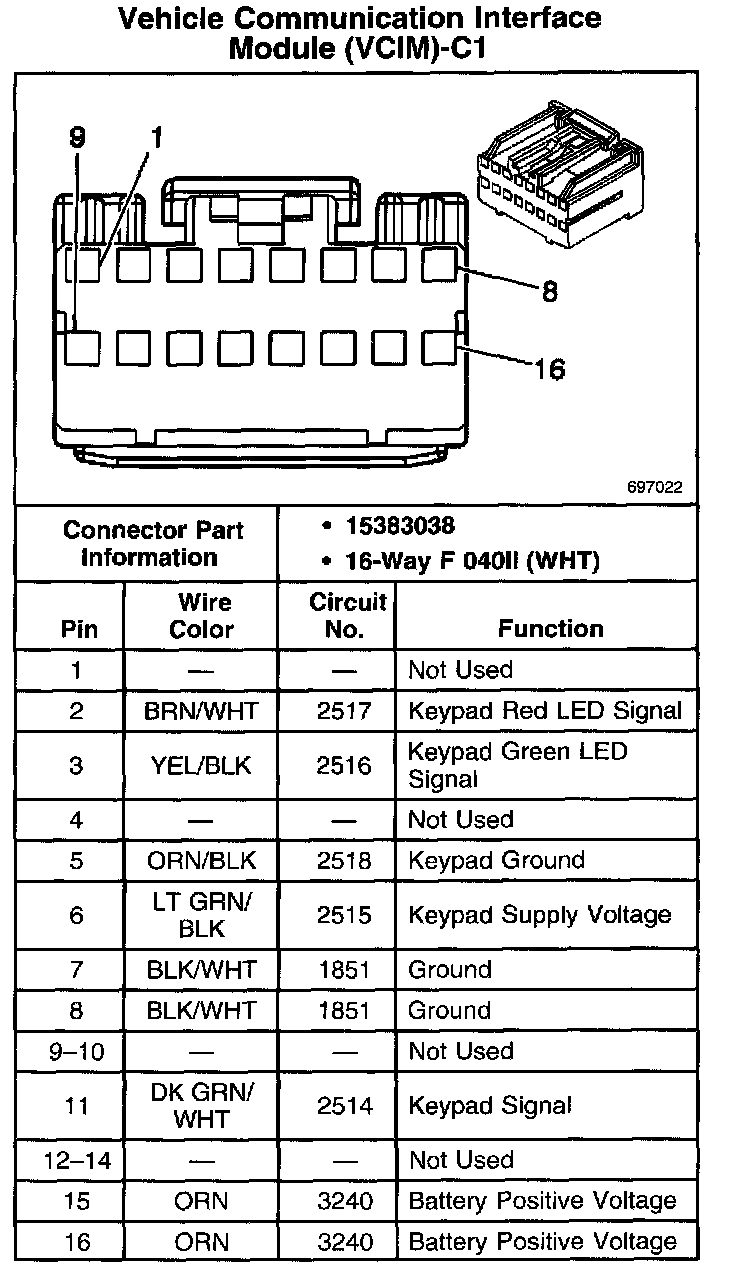

Vehicle Communication Interface Module (VCIM) - C1:

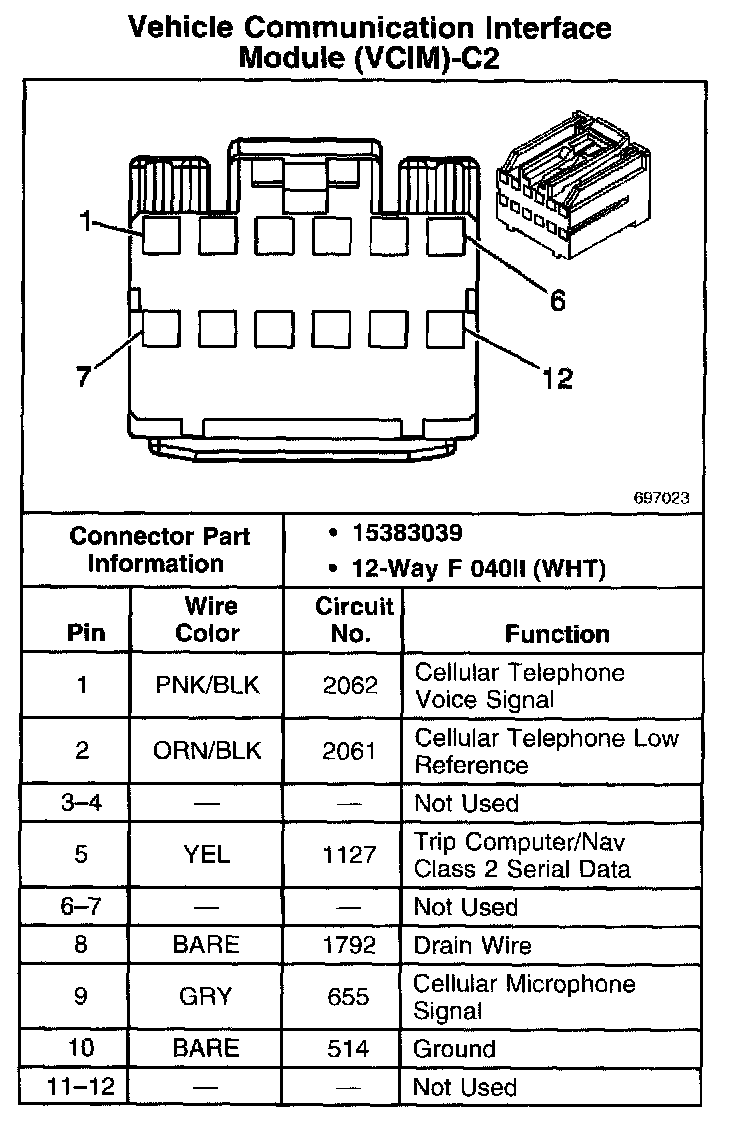

Vehicle Communication Interface Module (VCIM) - C2:
