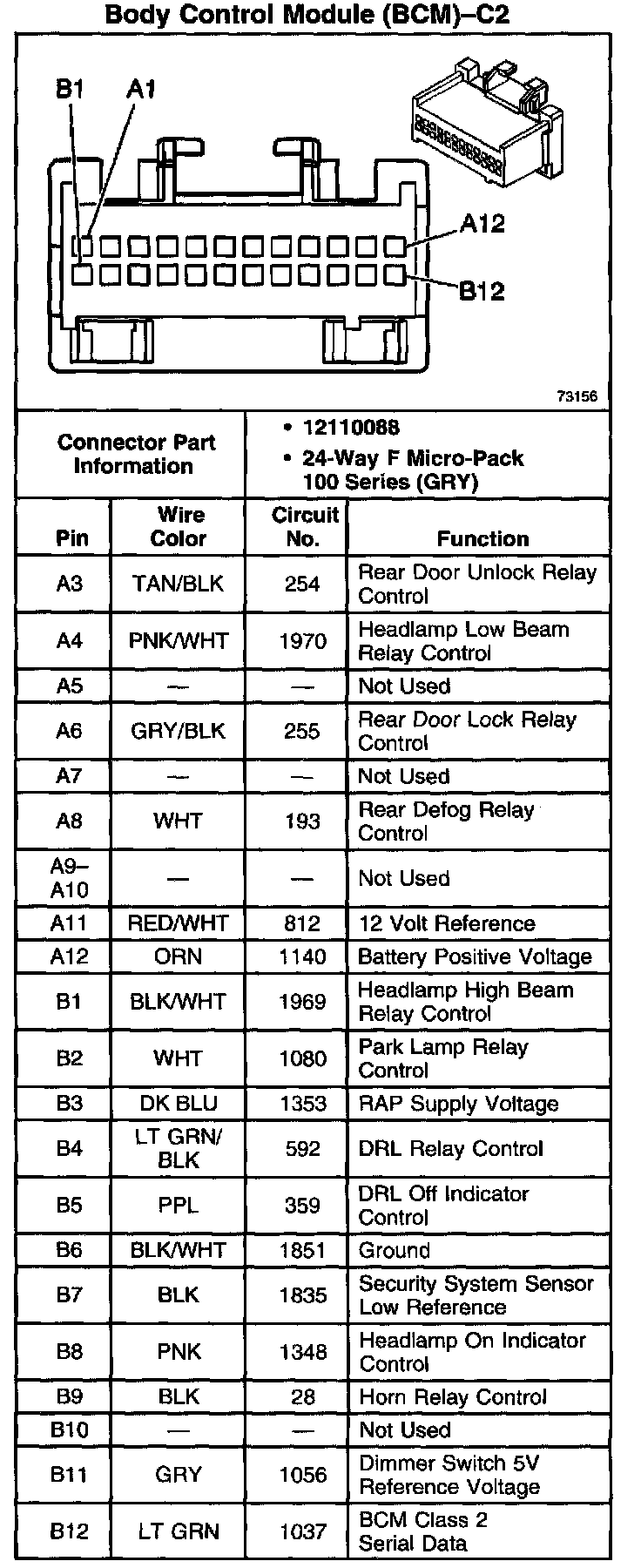

Body Control Module (BCM) - C2
Body Control Module (BCM) - C2 Part 1:
Body Control Module (BCM) - C2 Part 2:
