DTC B1660 (Keyless Access Control Unit)
>>
Inspection Outline
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Outline

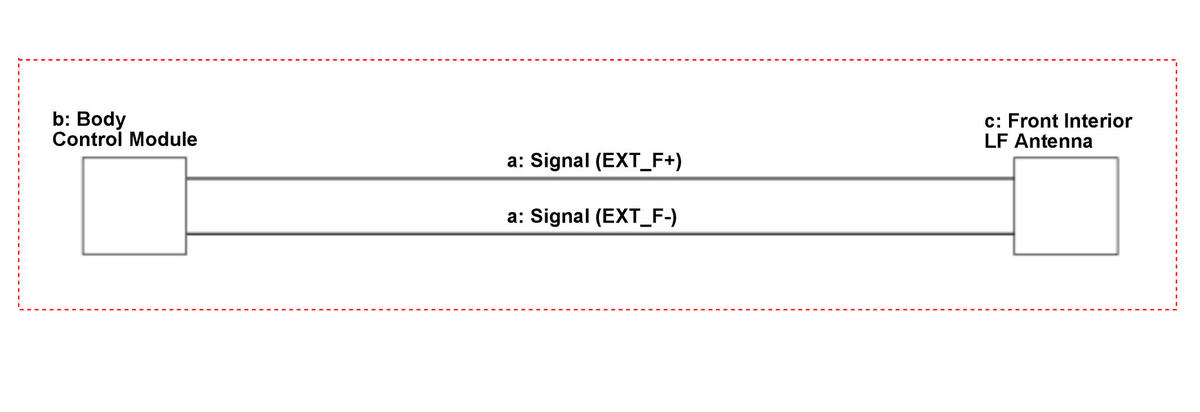

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_F+, EXT_F- Open Wire Inspection
EXT_F+, EXT_F- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Front Interior LF Antenna
Front Interior LF Antenna Inspection
