Repair Procedure

How to use this Service Information .

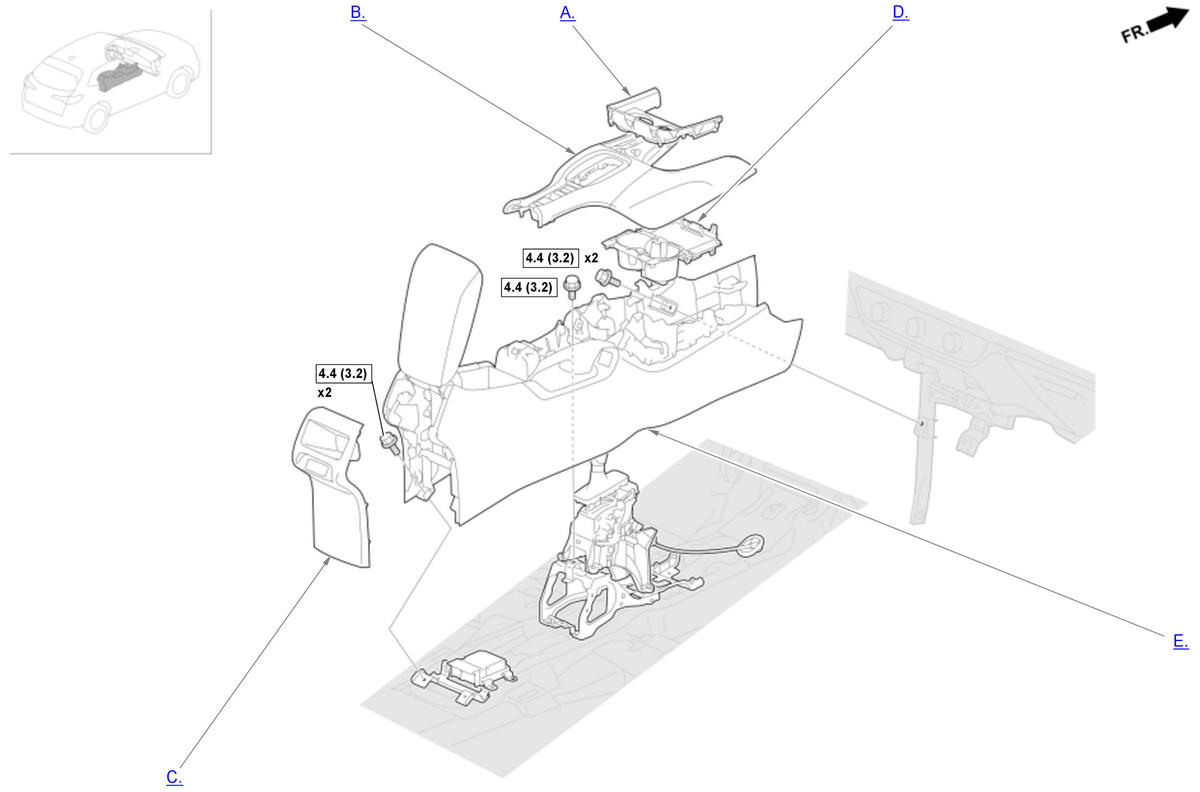

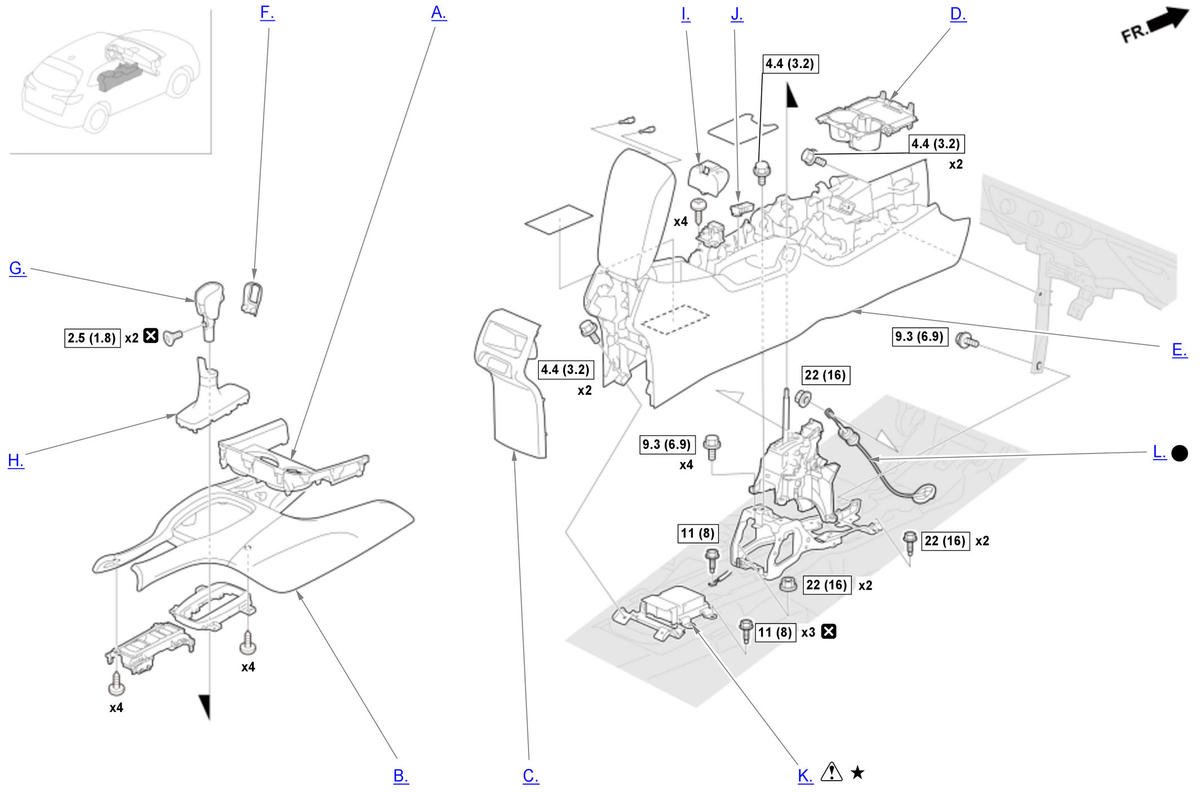

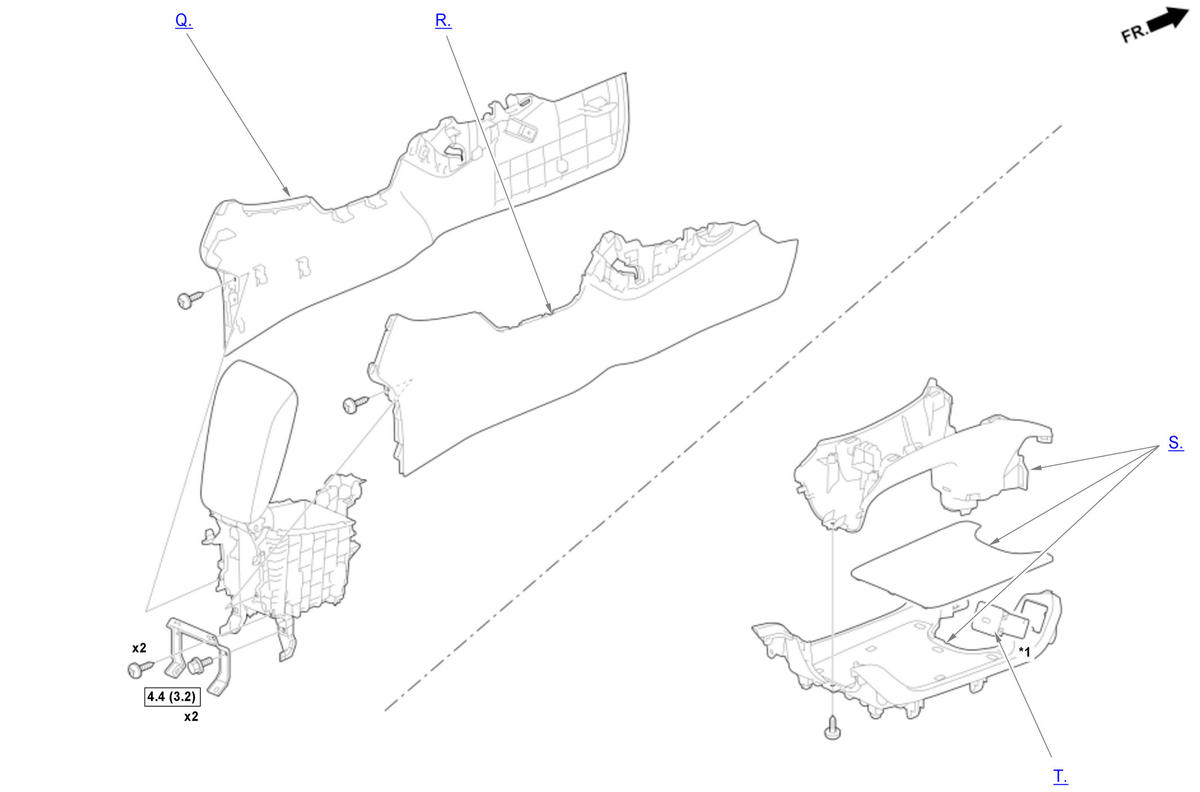

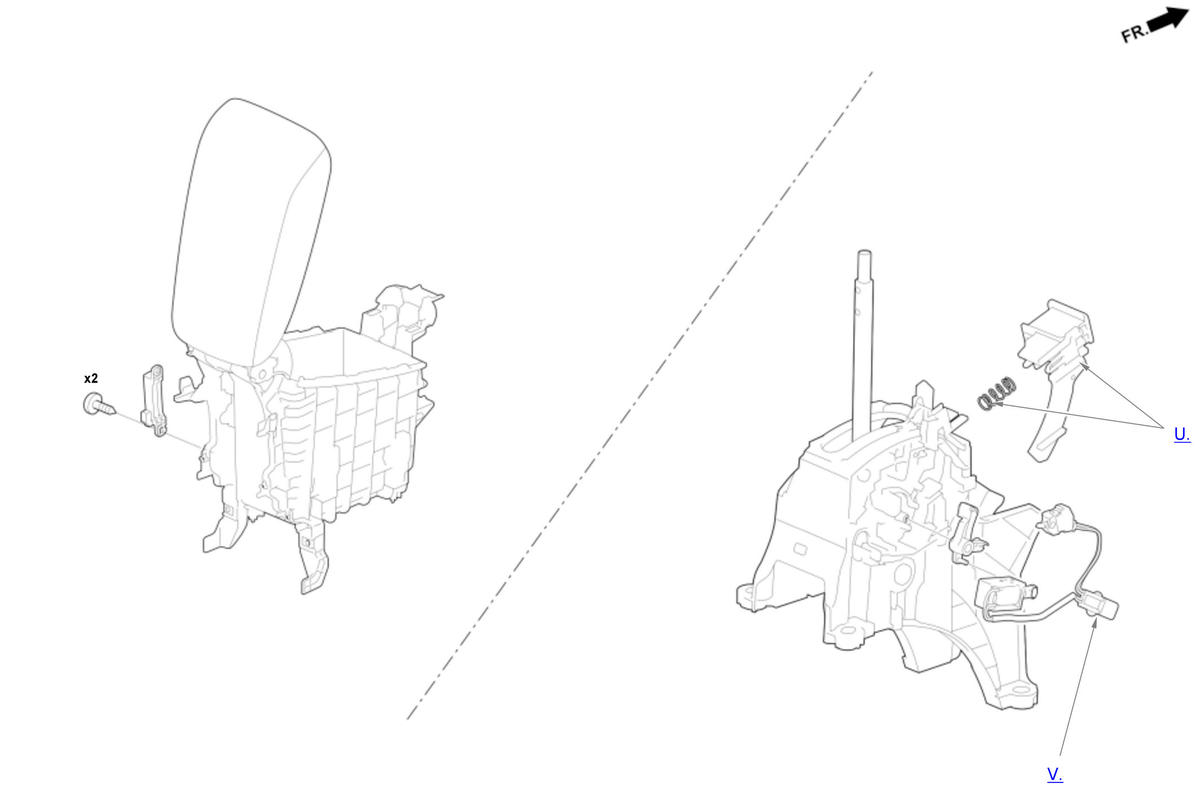

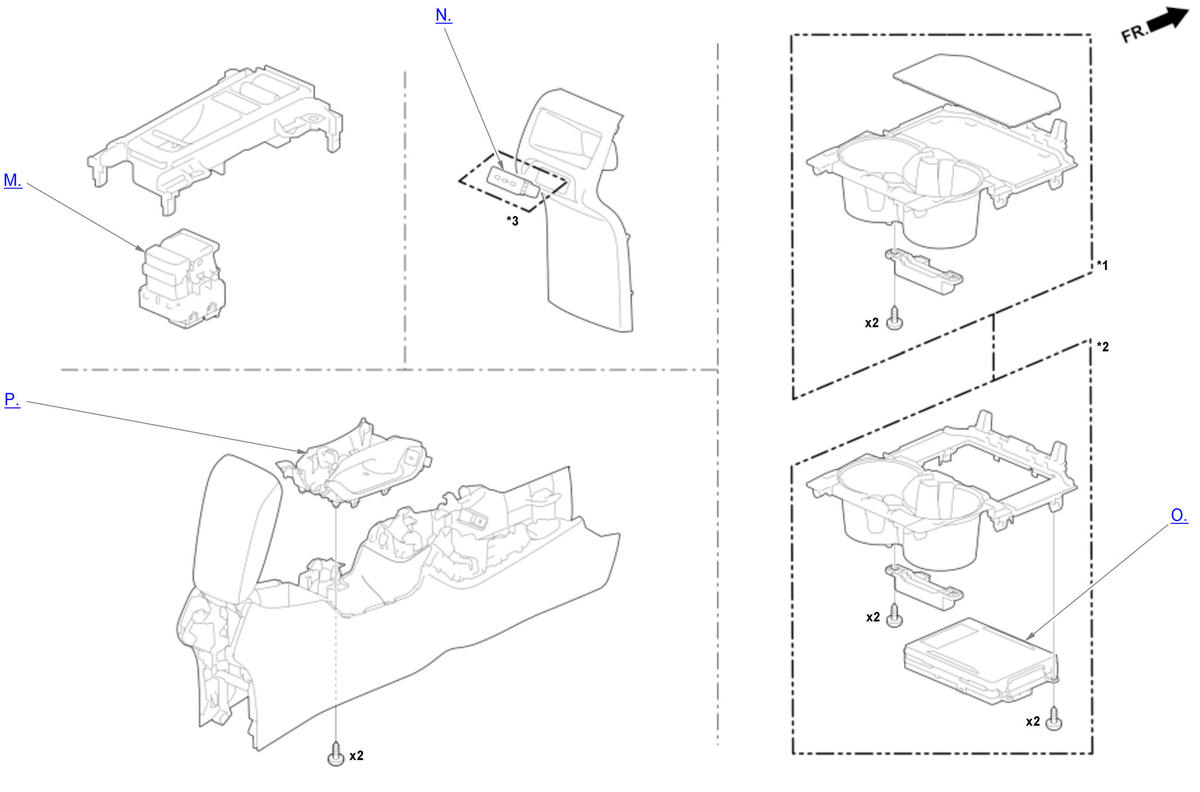

Center Console Assembly Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

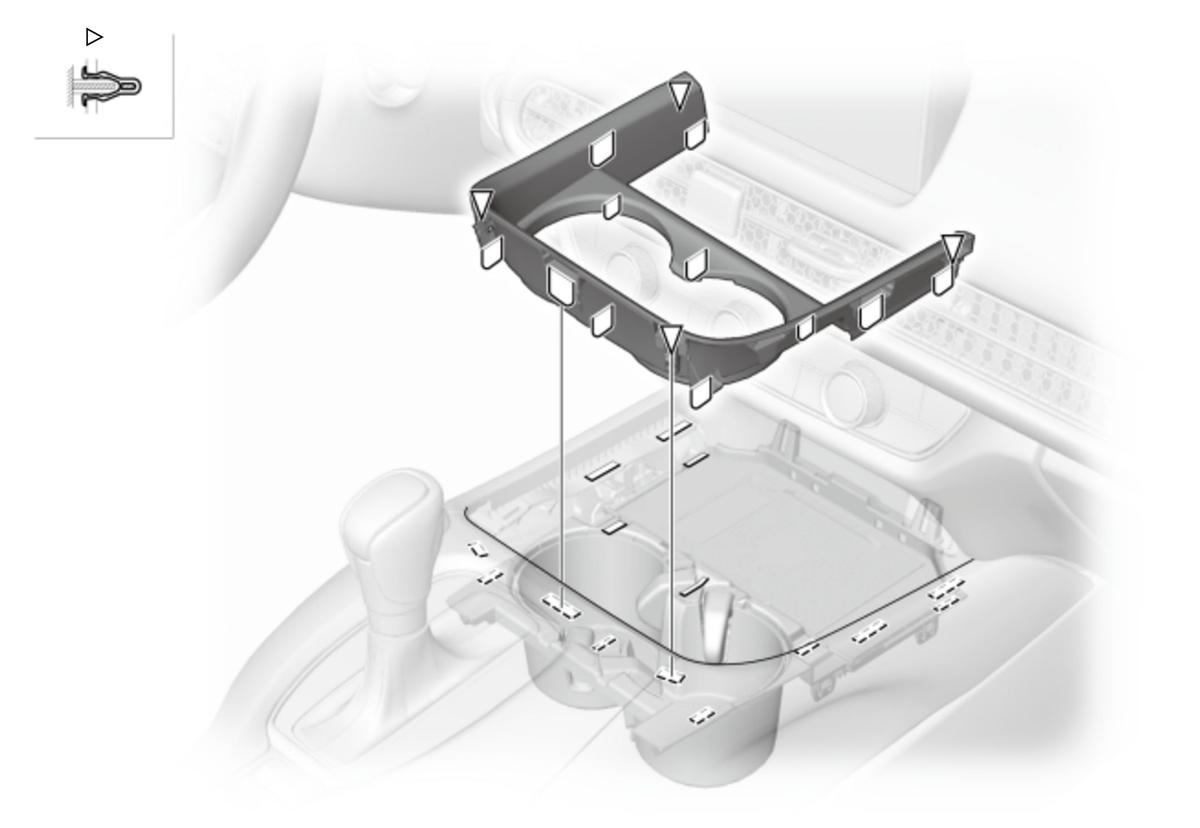

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Center Lower Center Cover

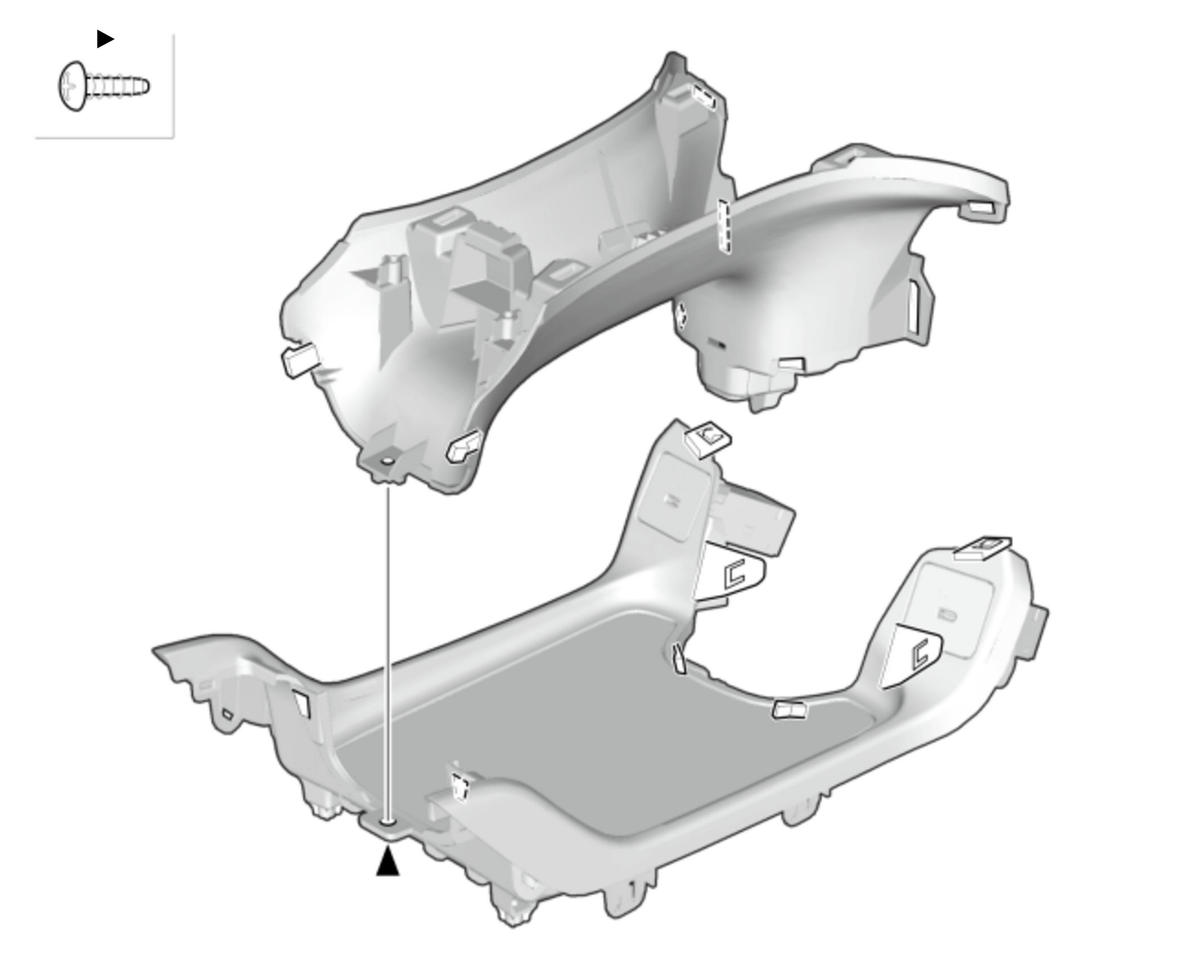

   Sub-Procedure

   Removal

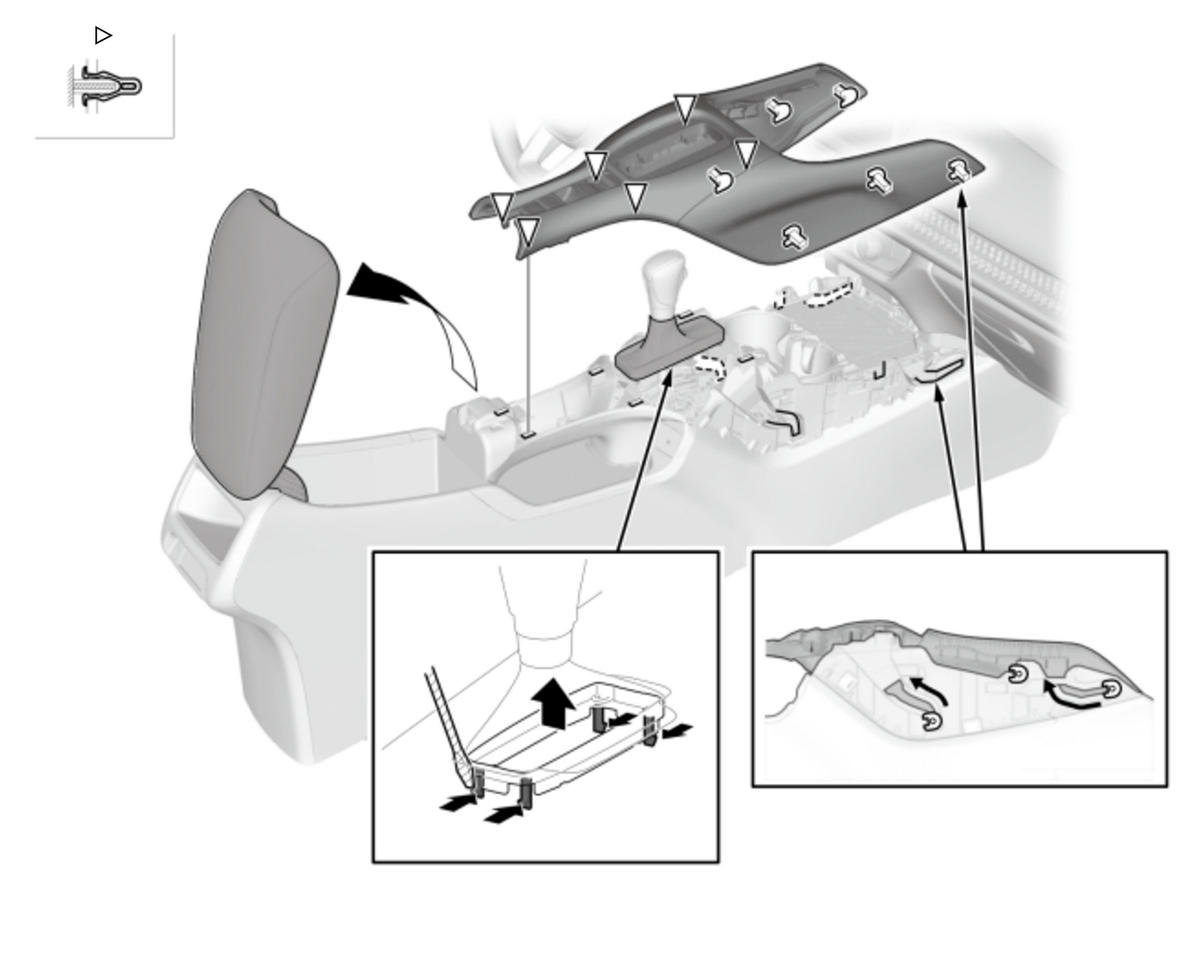

   • Refer to the figure below.

   Courtesy of HONDA, U.S.A., INC.

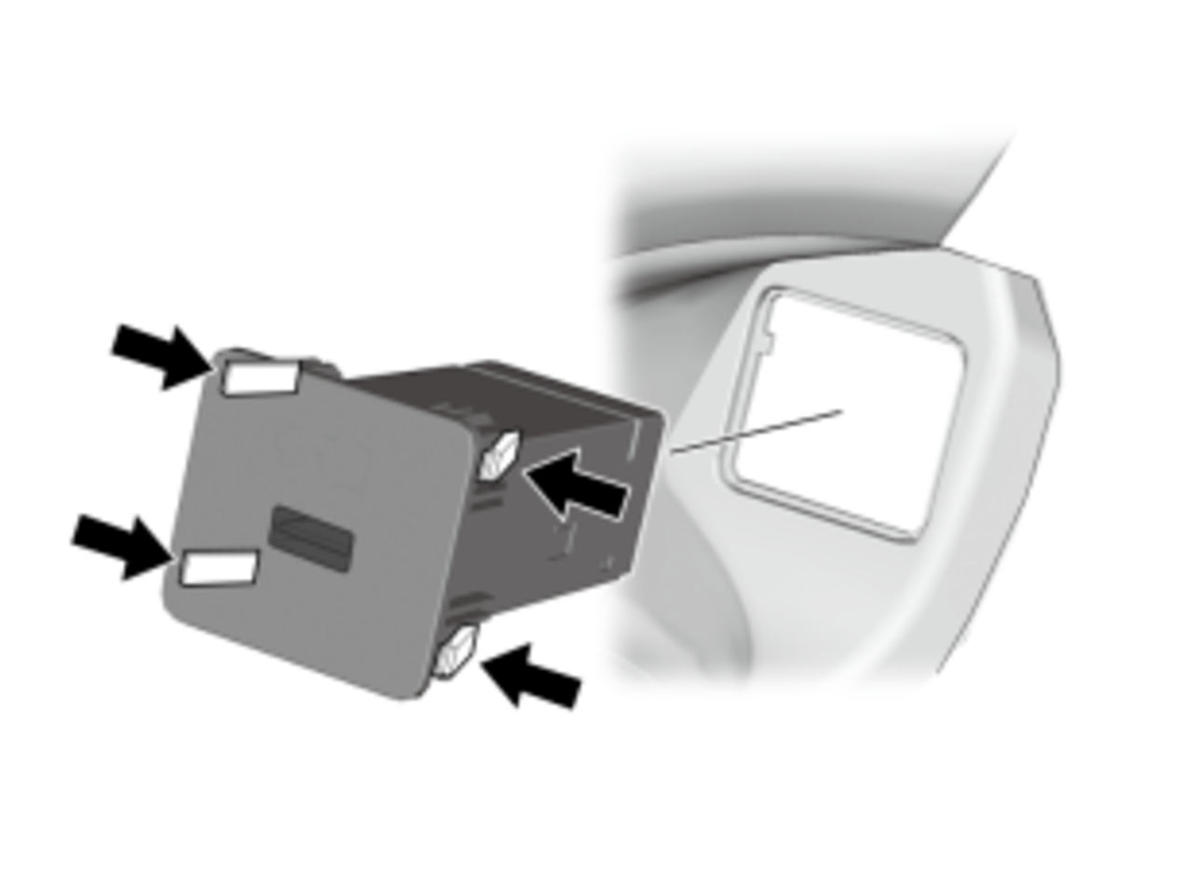

3. C.-

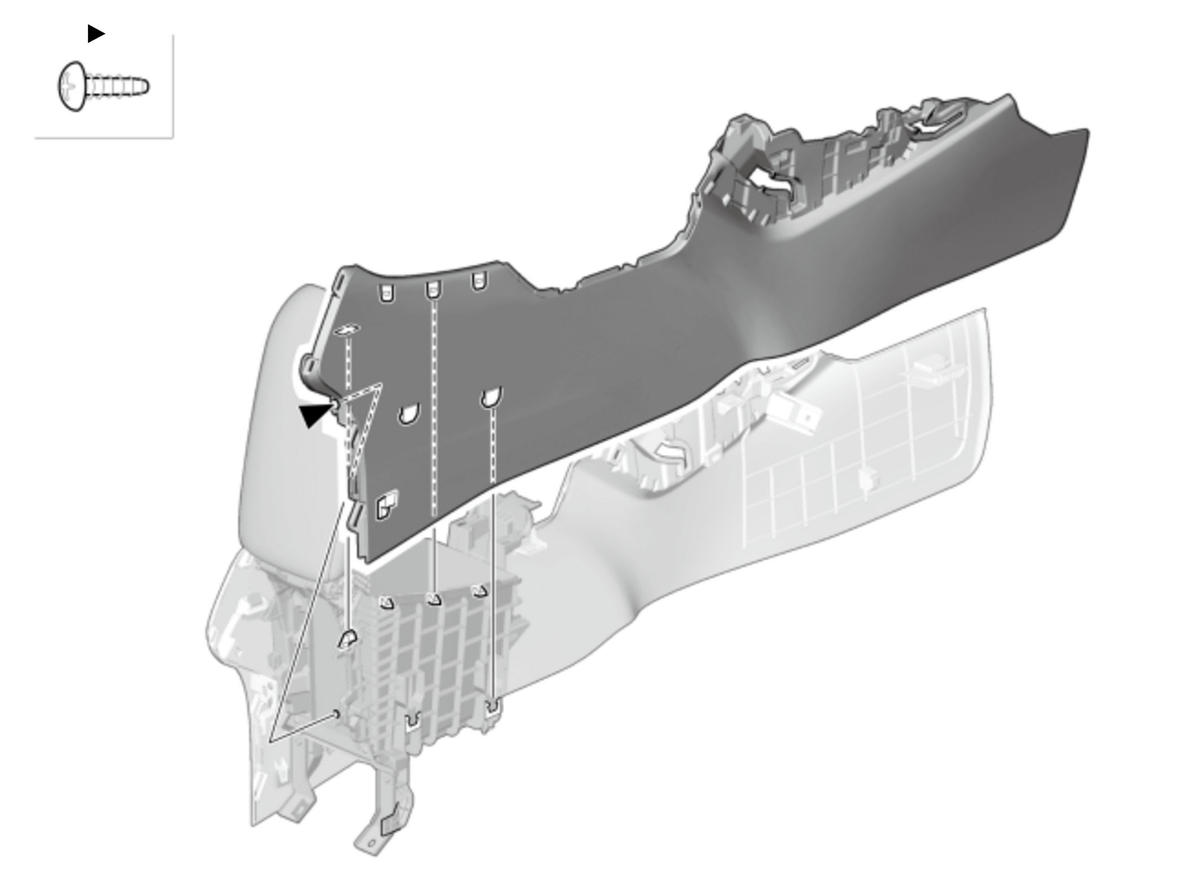

   Courtesy of HONDA, U.S.A., INC.

4. D.-

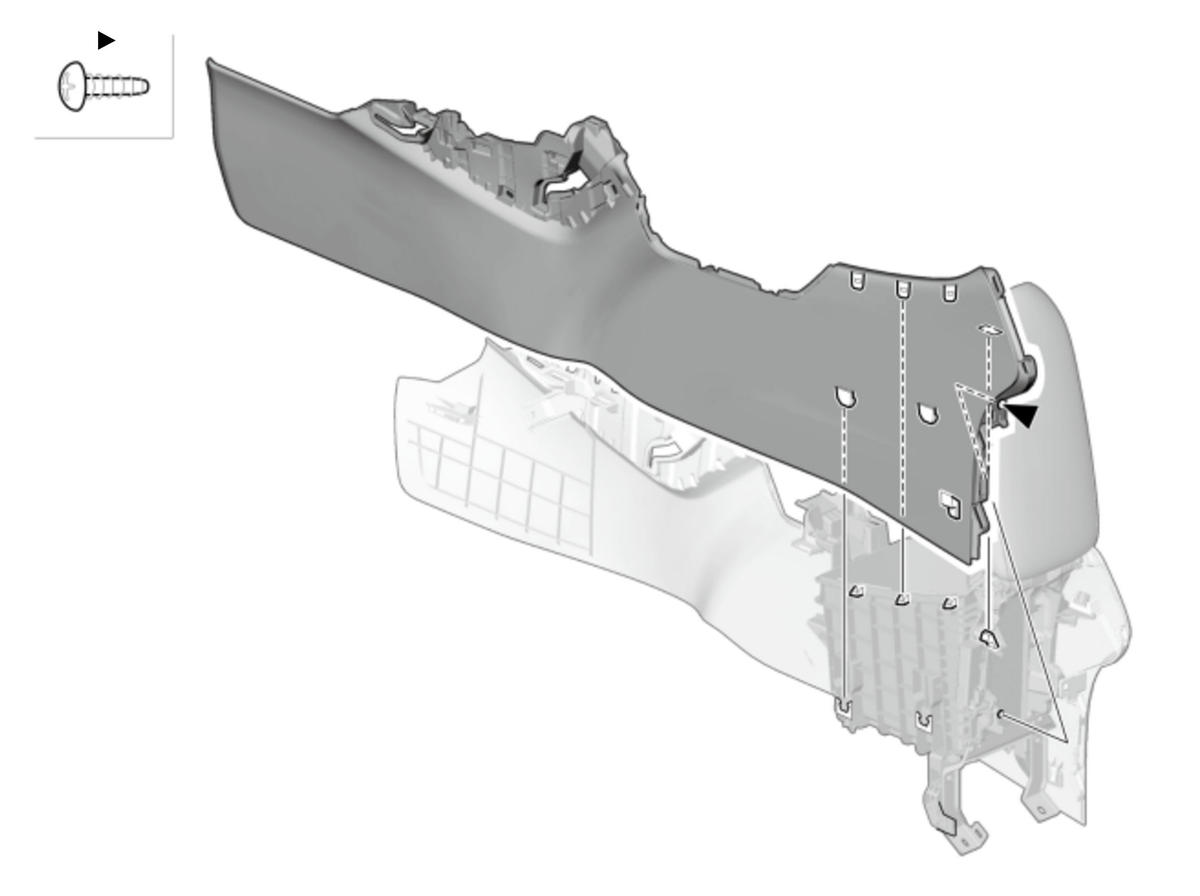

   Courtesy of HONDA, U.S.A., INC.

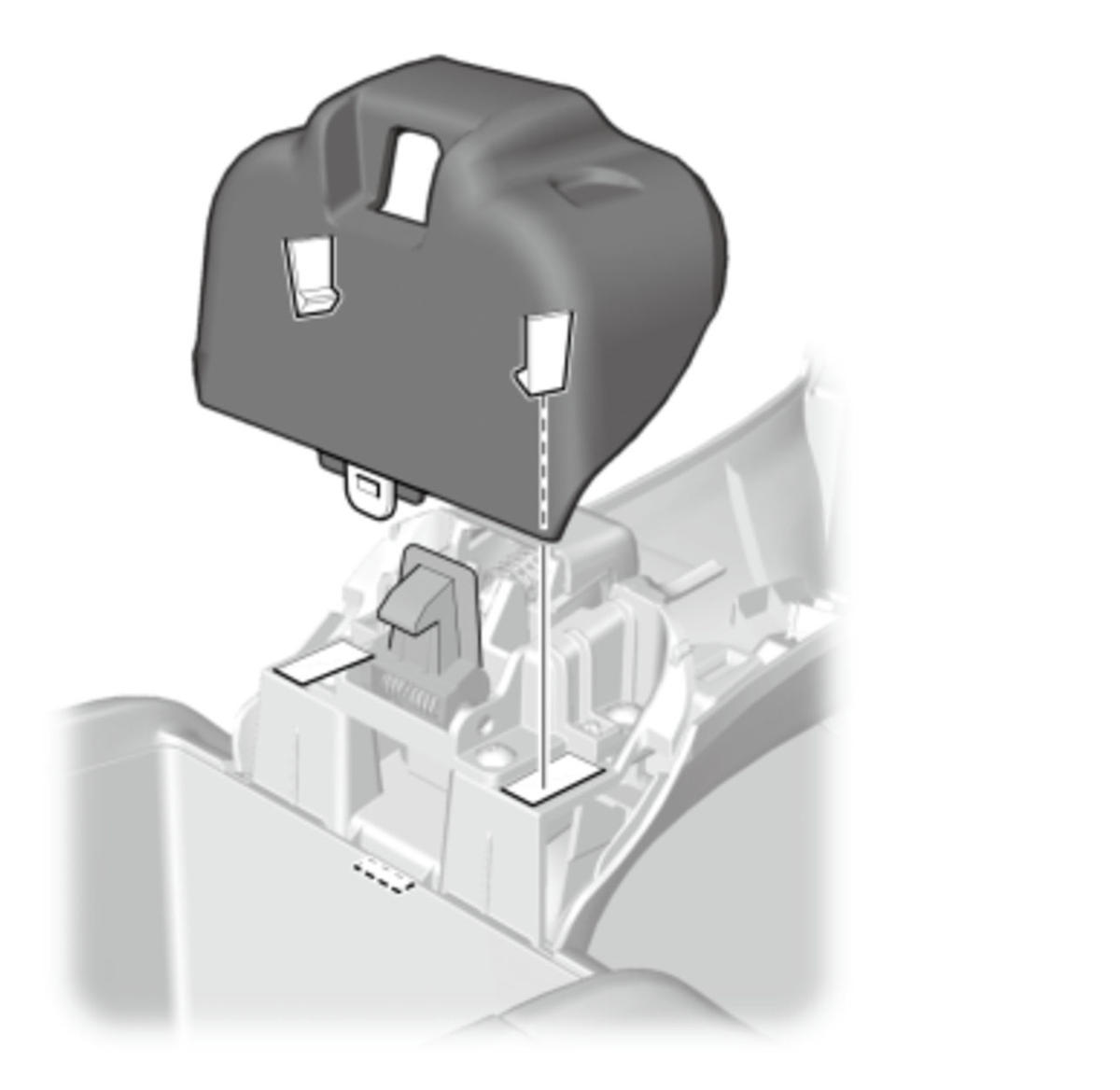

5. E.-

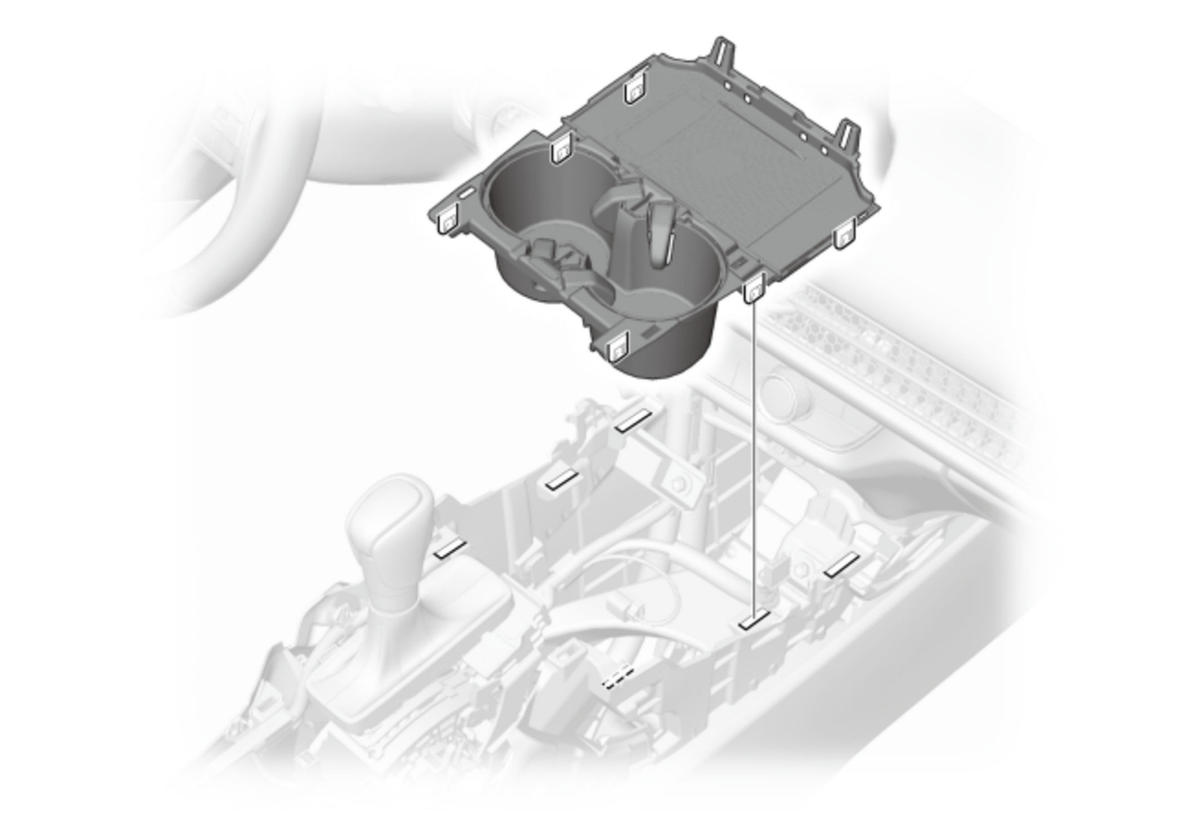

   Sub-Procedure

   Removal

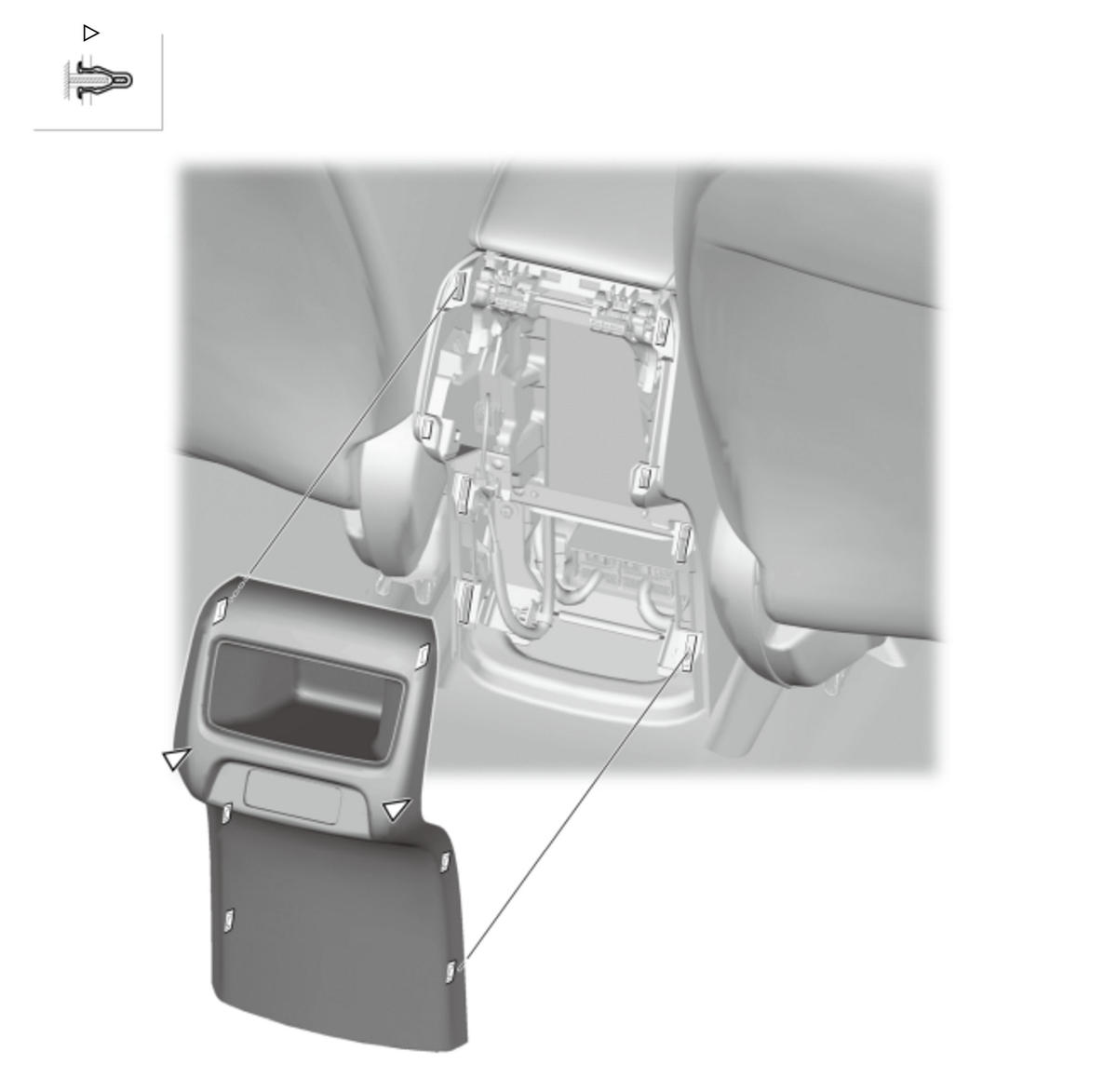

   • Refer to the figure below.

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure above.

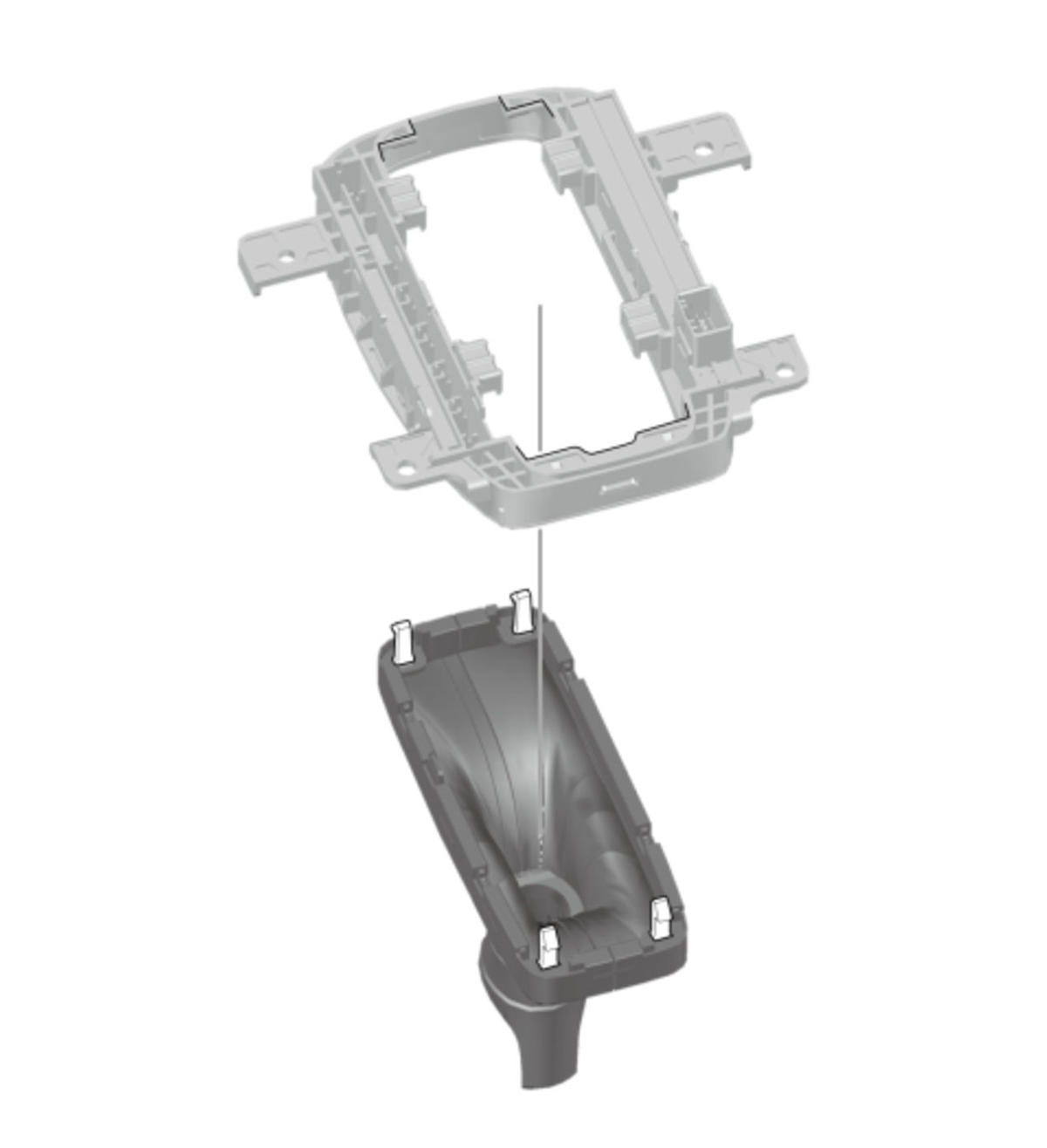

7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

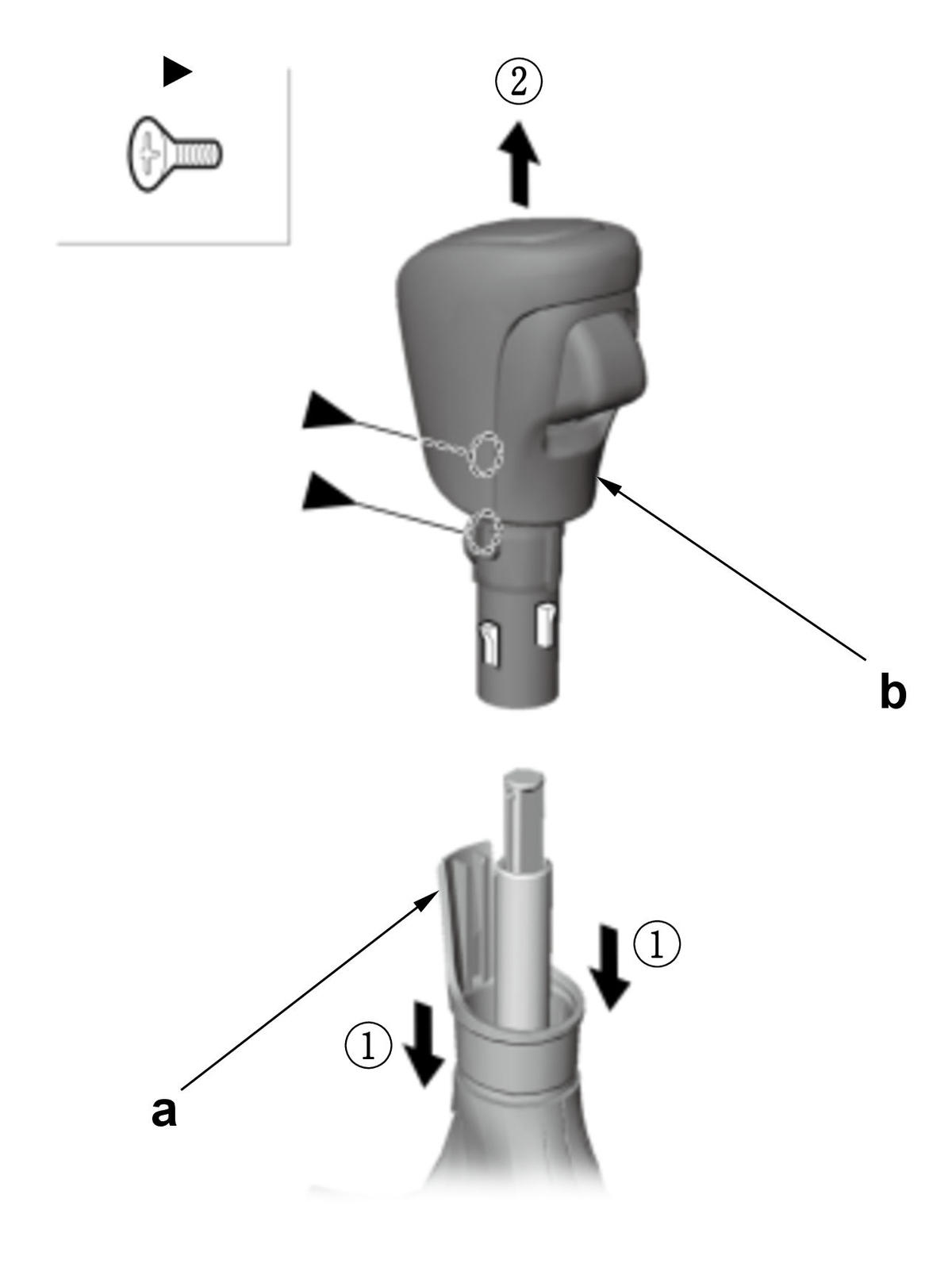

   NOTICE:

   Do not wipe off the special grease.

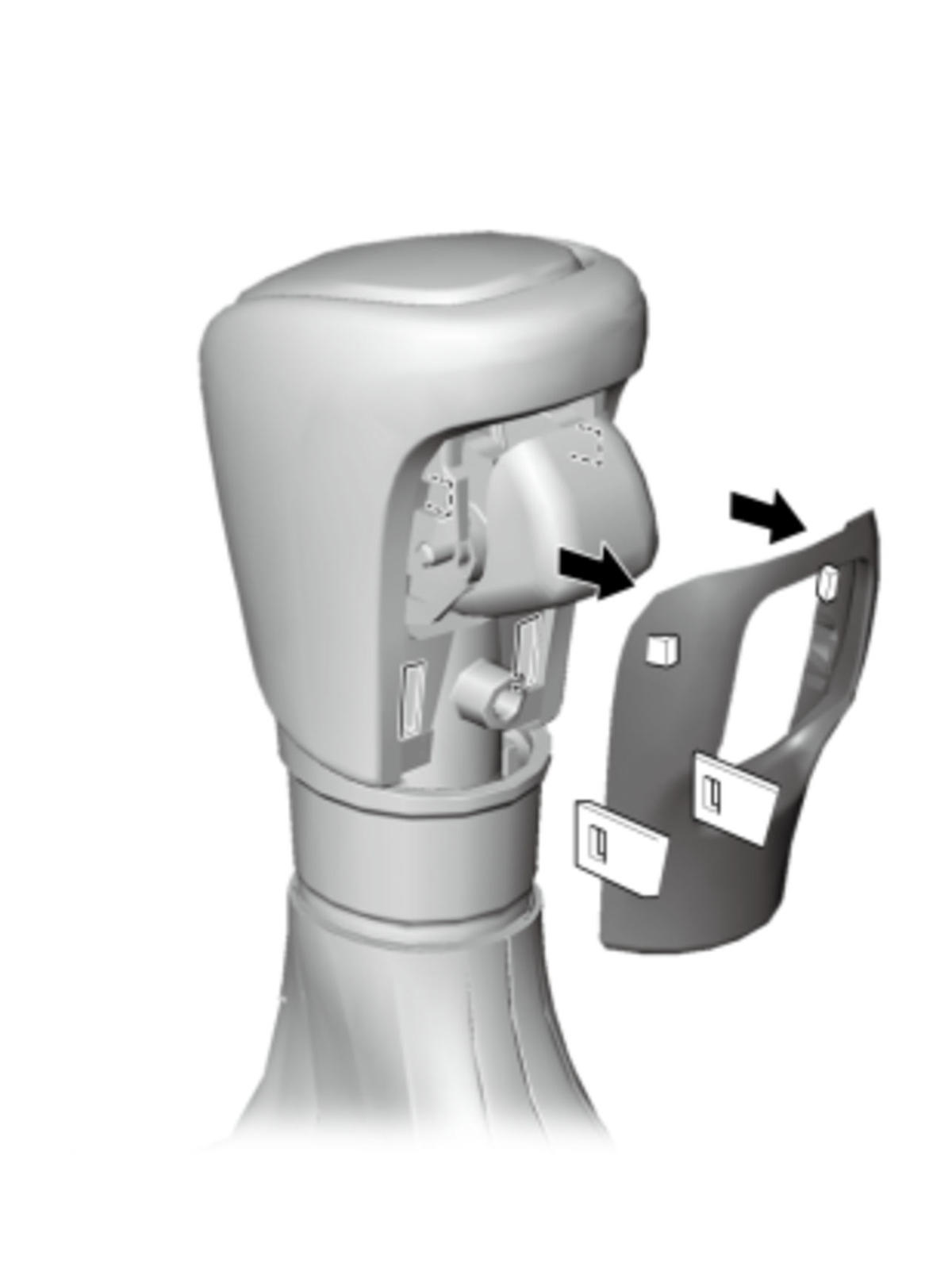

   • Lower the shift lever boot (a), then remove the shift lever knob (b).
8. H.-

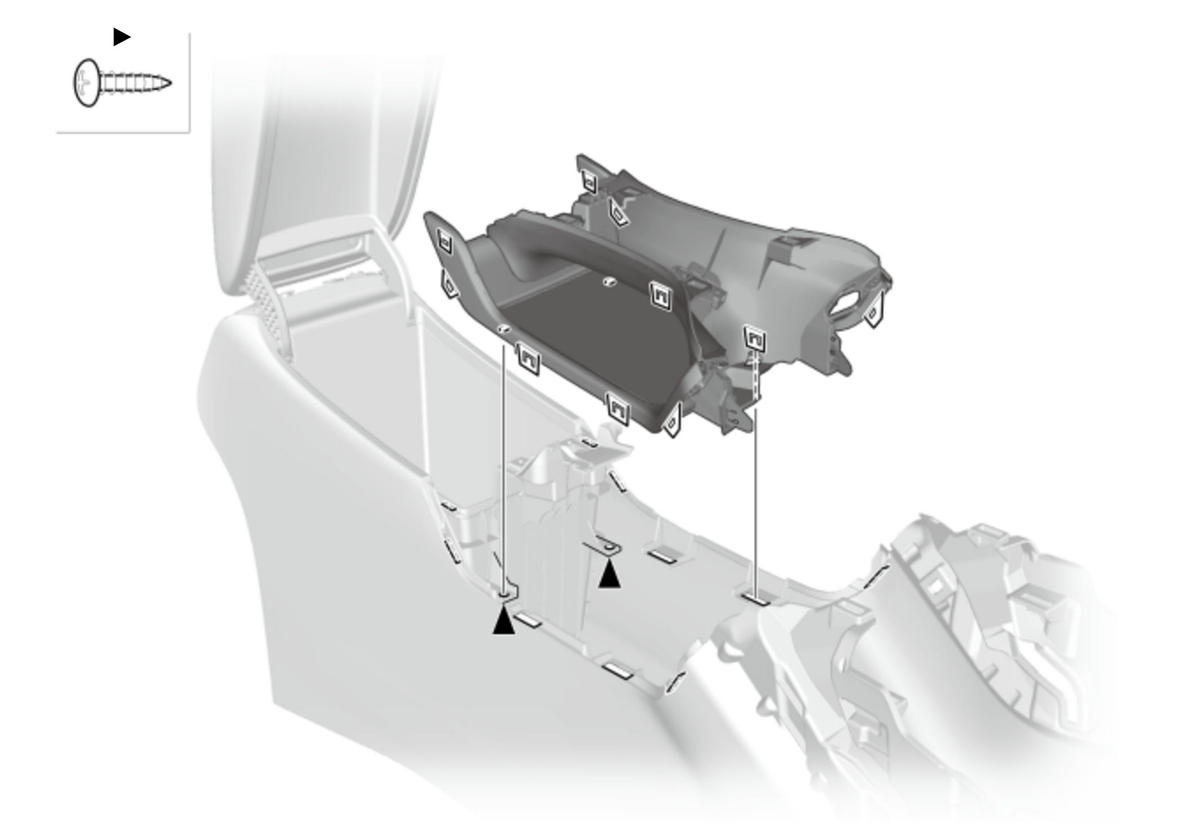

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Courtesy of HONDA, U.S.A., INC.

11. K.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
    NOTE:

    Be careful not to bump (by impact wrench, hammer, etc.) the area around the SRS unit.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTE:

    Before installing the center console, make sure the SRS indicator works normally.

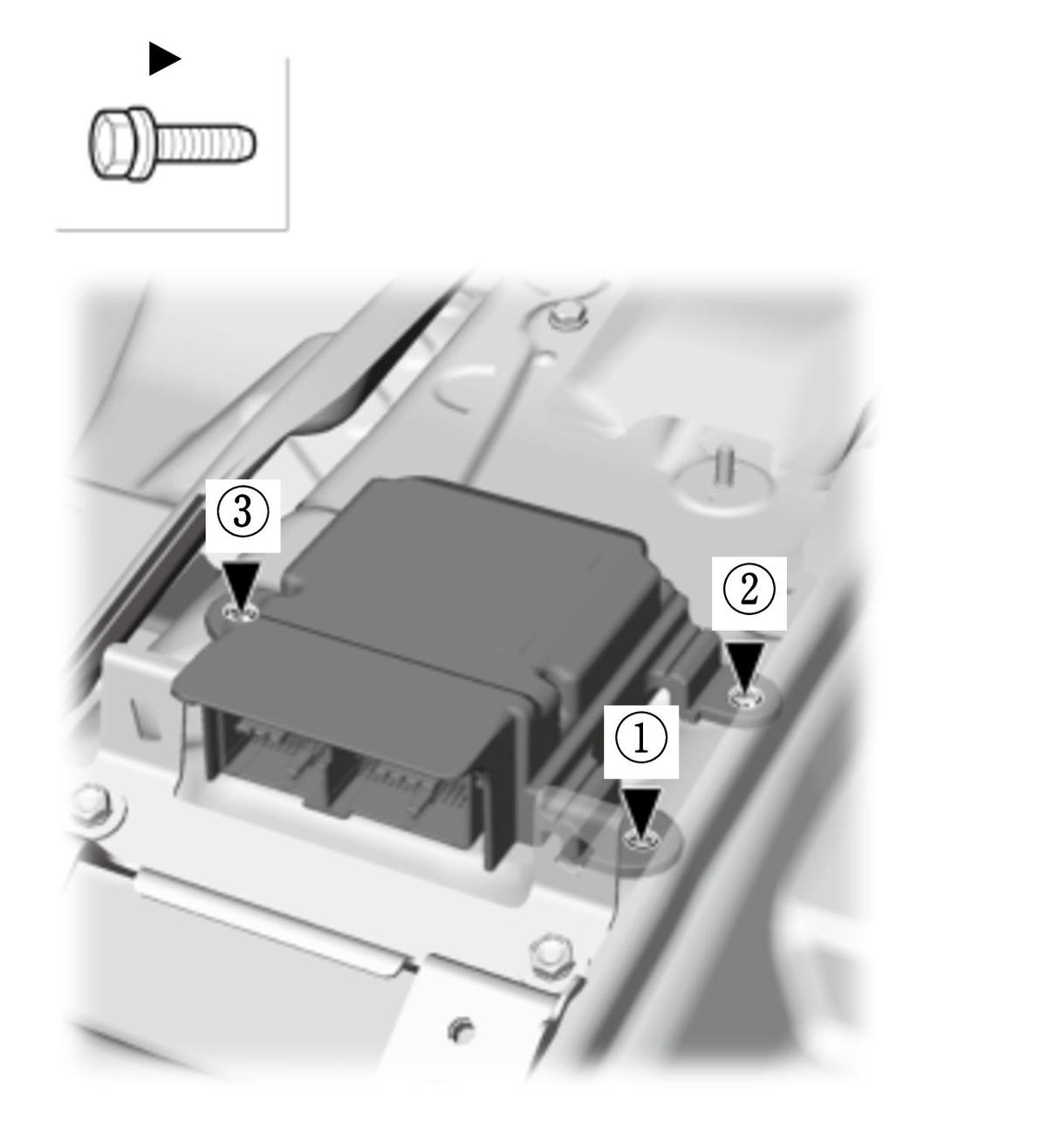

    Tightening Procedure

    Step	Operation	Object	Specification
    1	Tighten	All Bolts	→ →

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • ECU Key Write (only when replacing SRS unit) .
    • Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit .
    • Yaw Rate-Acceleration Neutral Position Memorization

      NOTICE:

      After replacing the SRS unit with a new one, memorize the yaw rate-acceleration neutral position.

    • Front Passenger's Weight Sensor Initialization - Refer to: Front Passenger's Weight Sensor Initialization or Front Passenger's Weight Sensor Operation Check After Replacing Front Passenger's Seat Component(s) or Front Passenger's Weight Sensor Output Check After a Vehicle Collision

      NOTE:  After replacing the SRS unit with a new one, initialize the front passenger's weight sensors.

    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
12. L.-

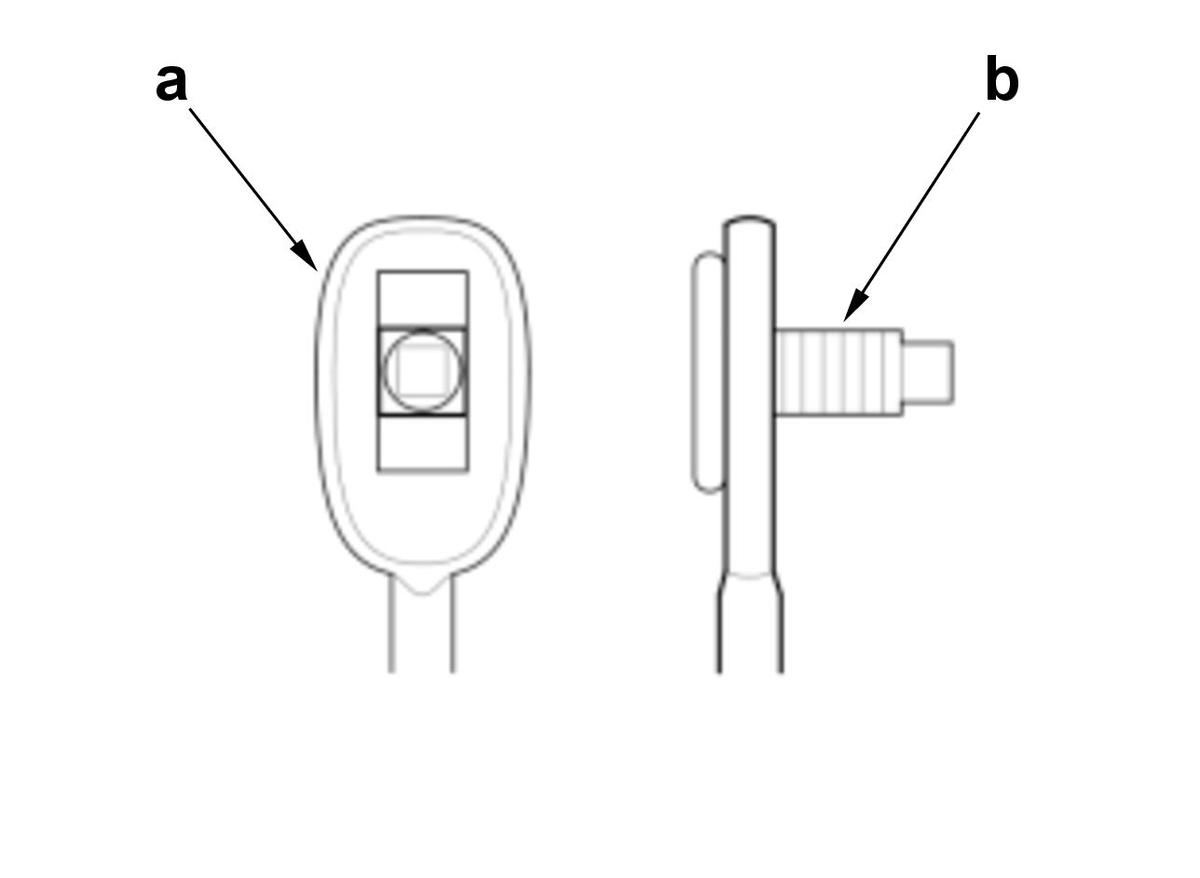

    Preconditions

    • Transmission R position/mode

    Sub-Procedure

    NOTE:

    • Do not bend the shift cable excessively.

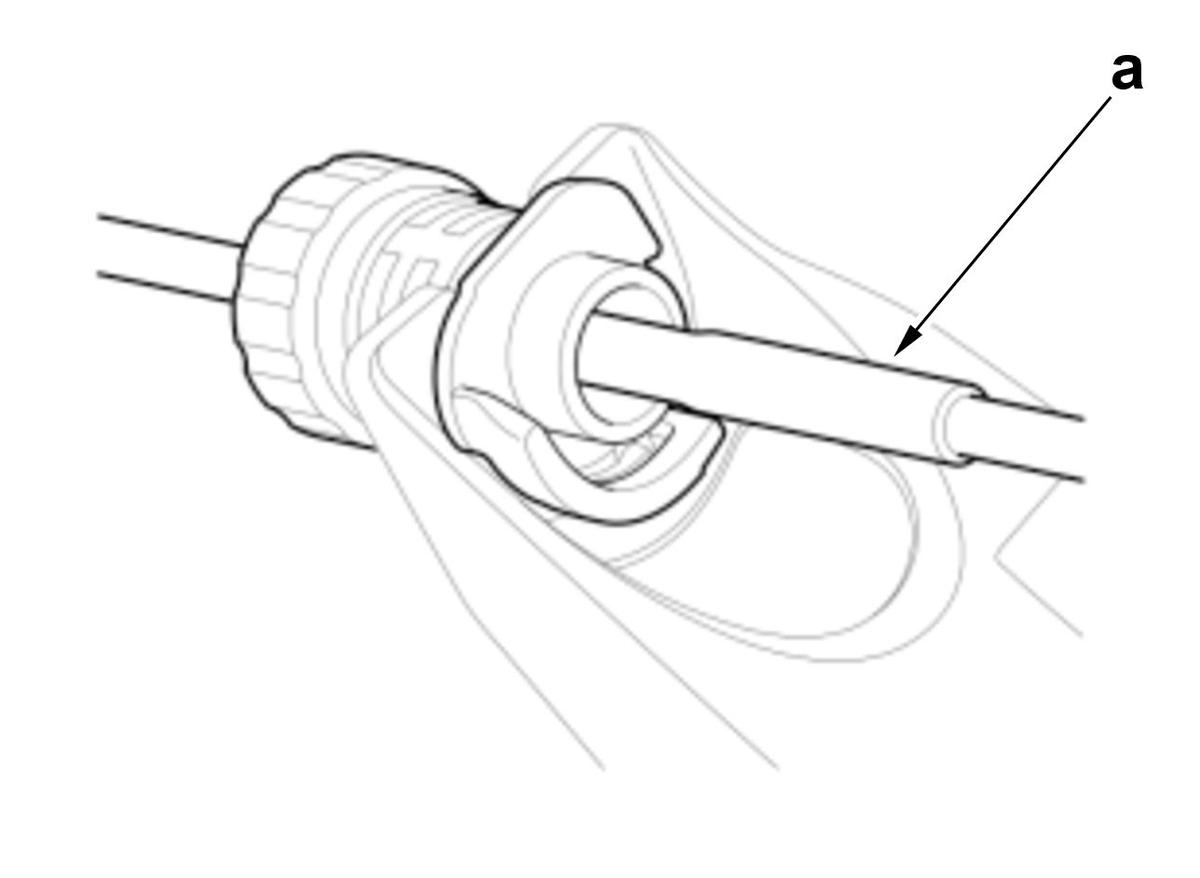

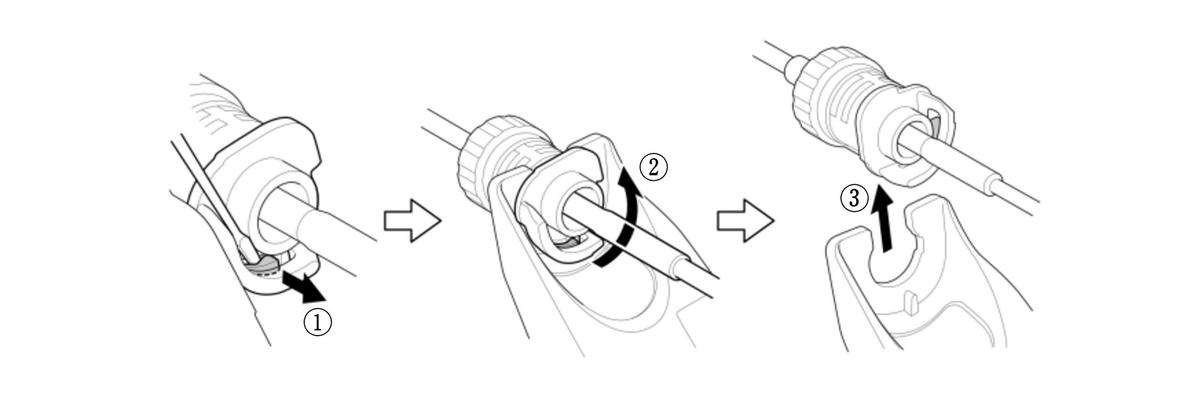

    • Do not remove the shift cable by pulling the shift cable guide (a). (Figure 1)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Removal

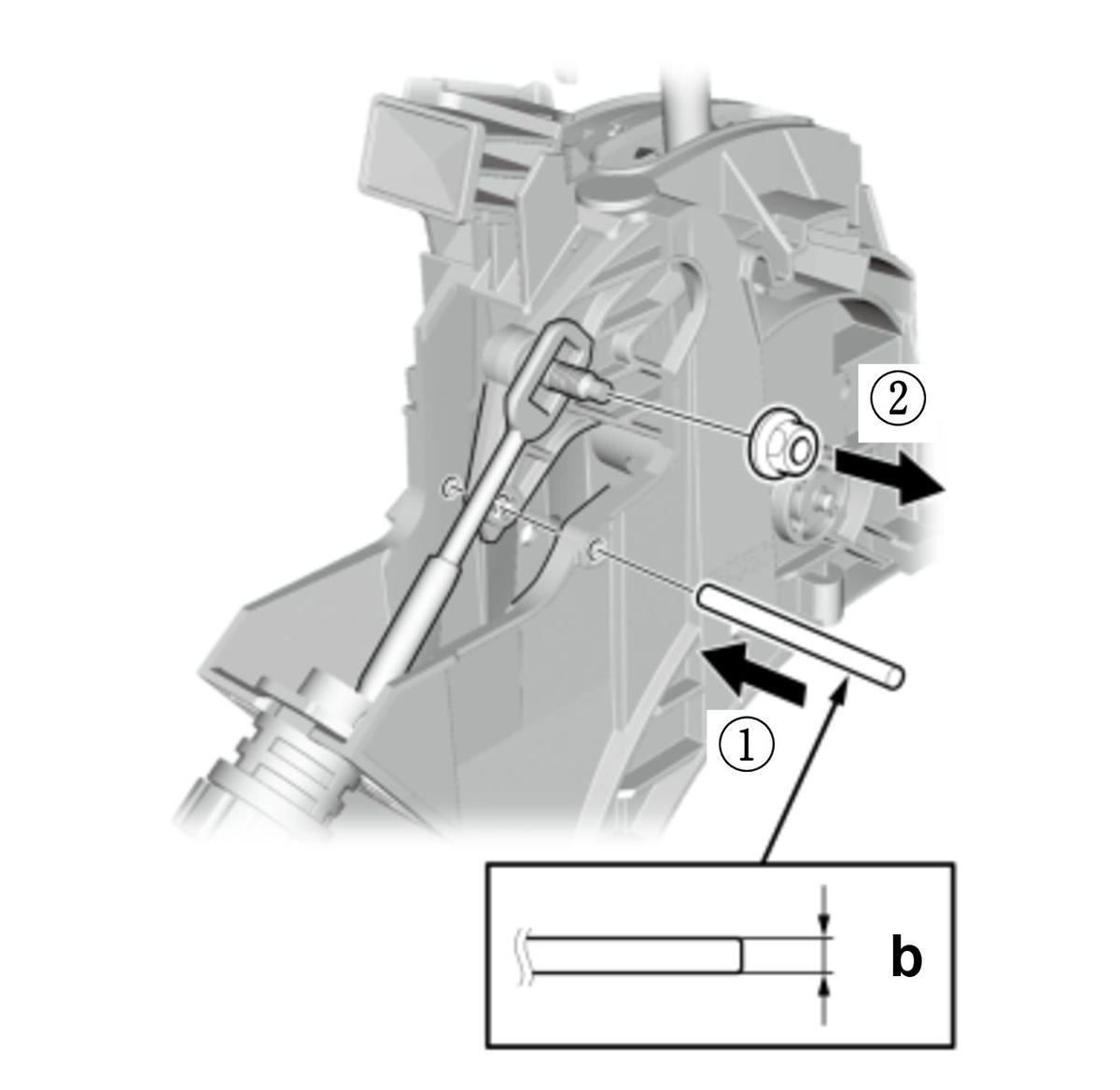

    1. Refer to figure 2 below.

    Pin Specifications (Figure 2)

    Specification
    b	6.0 mm (0.24 in)

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

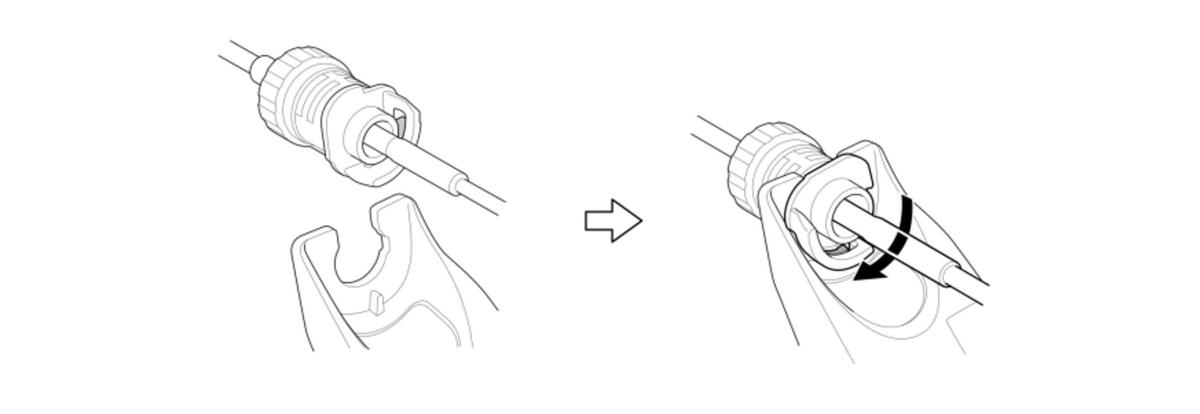

    2. Refer to figure 3 below.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Installation

    1. Adjust shift cable .

    2. Refer to figure 4 below.

    Figure 4

    Courtesy of HONDA, U.S.A., INC.

    3. Make sure that the shift cable end (a) is properly installed on the mounting stud (b). (Figure 5)

    Figure 5

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • Shift cable after install check.
      • 1. Turn the vehicle to the ON mode.
      • 2. Move the shift lever to each position/mode, and check that the shift position indicator follows the shift lever operation.
      • 3. Shift the transmission to the P position/mode, and check that the shift lock works properly.
      • 4. Push the shift lock release, and check that the shift lever releases. Also, check that the shift lever locks when it is shifted back to the P position/mode.
      • 5. Start the engine.
        NOTE:

        Check that the engine starts in the P or N position/mode, and does not start in any other positions/modes.

      • 6. Make sure the vehicle is turned to the OFF (LOCK) mode with the shift lever in the P position/mode. If it is not, adjust the shift cable again.
13. M.-

    Courtesy of HONDA, U.S.A., INC.

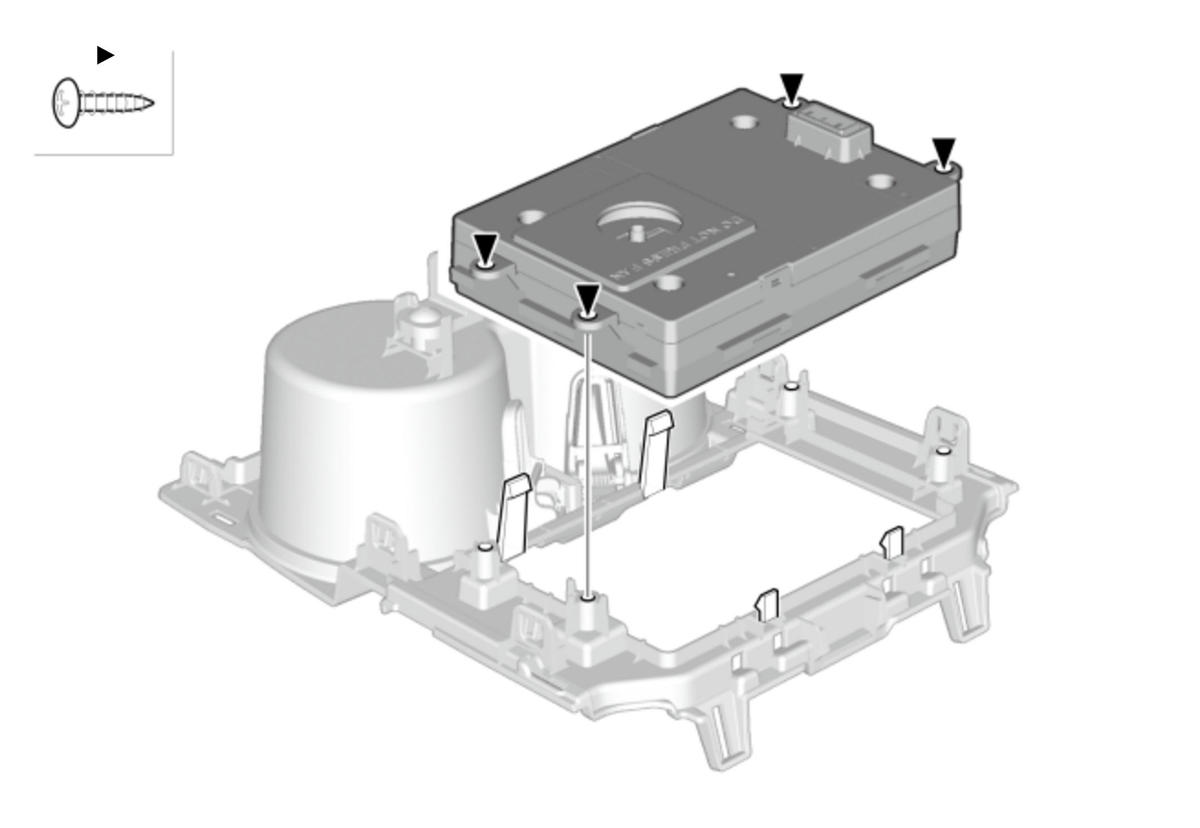

14. N.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure above.
15. O.-

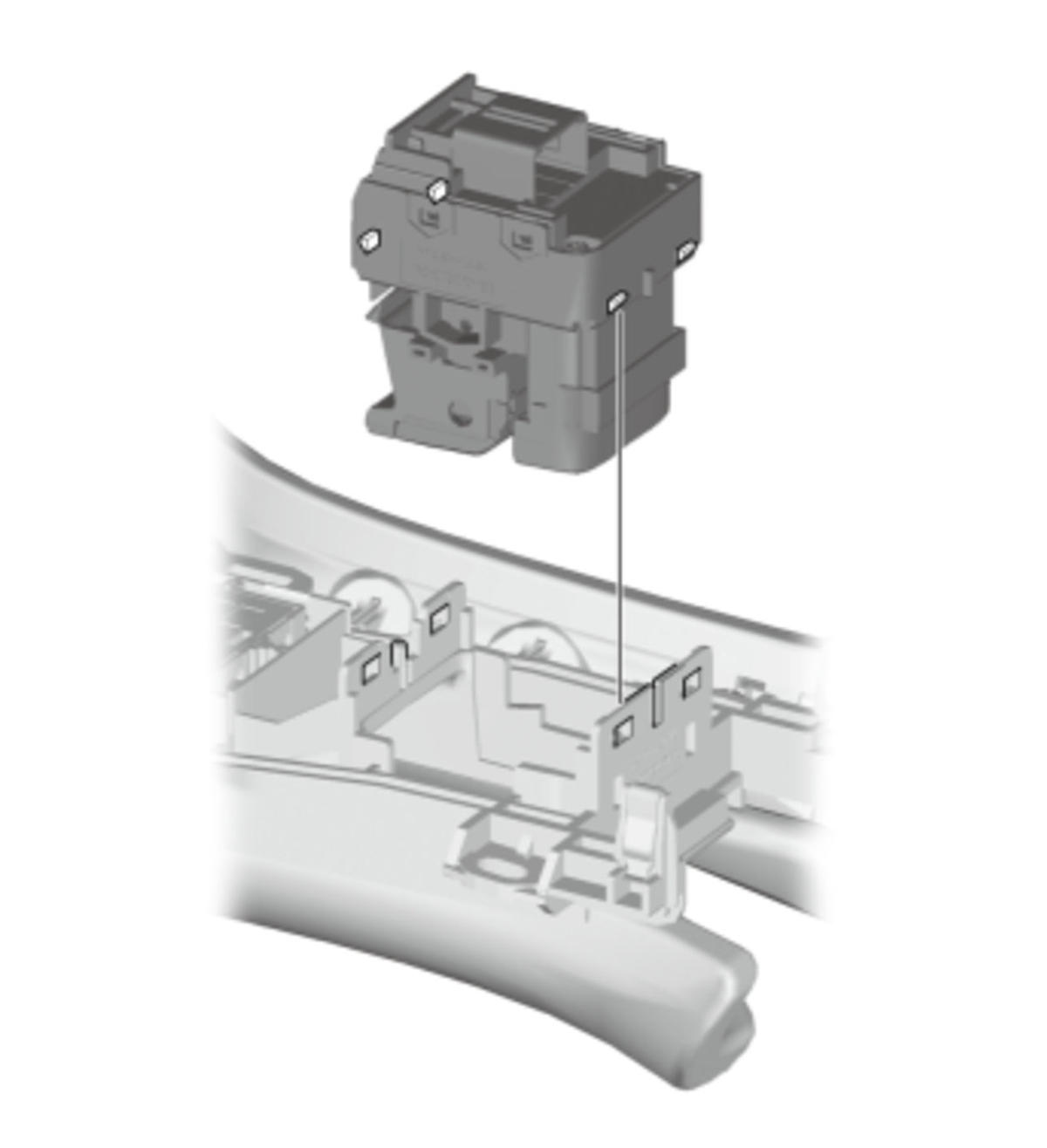

    Courtesy of HONDA, U.S.A., INC.

16. P.-

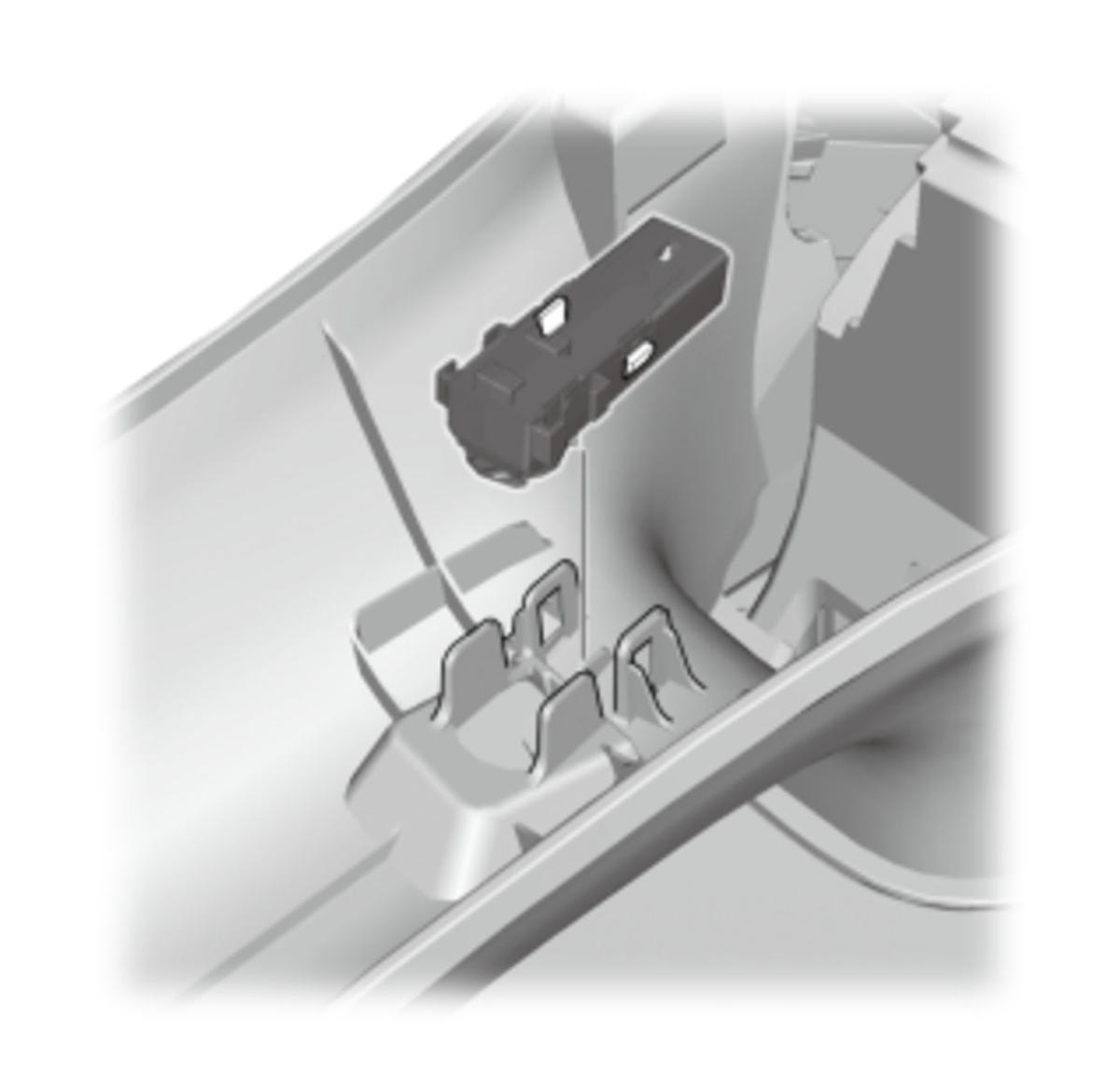

    Courtesy of HONDA, U.S.A., INC.

17. Q.-

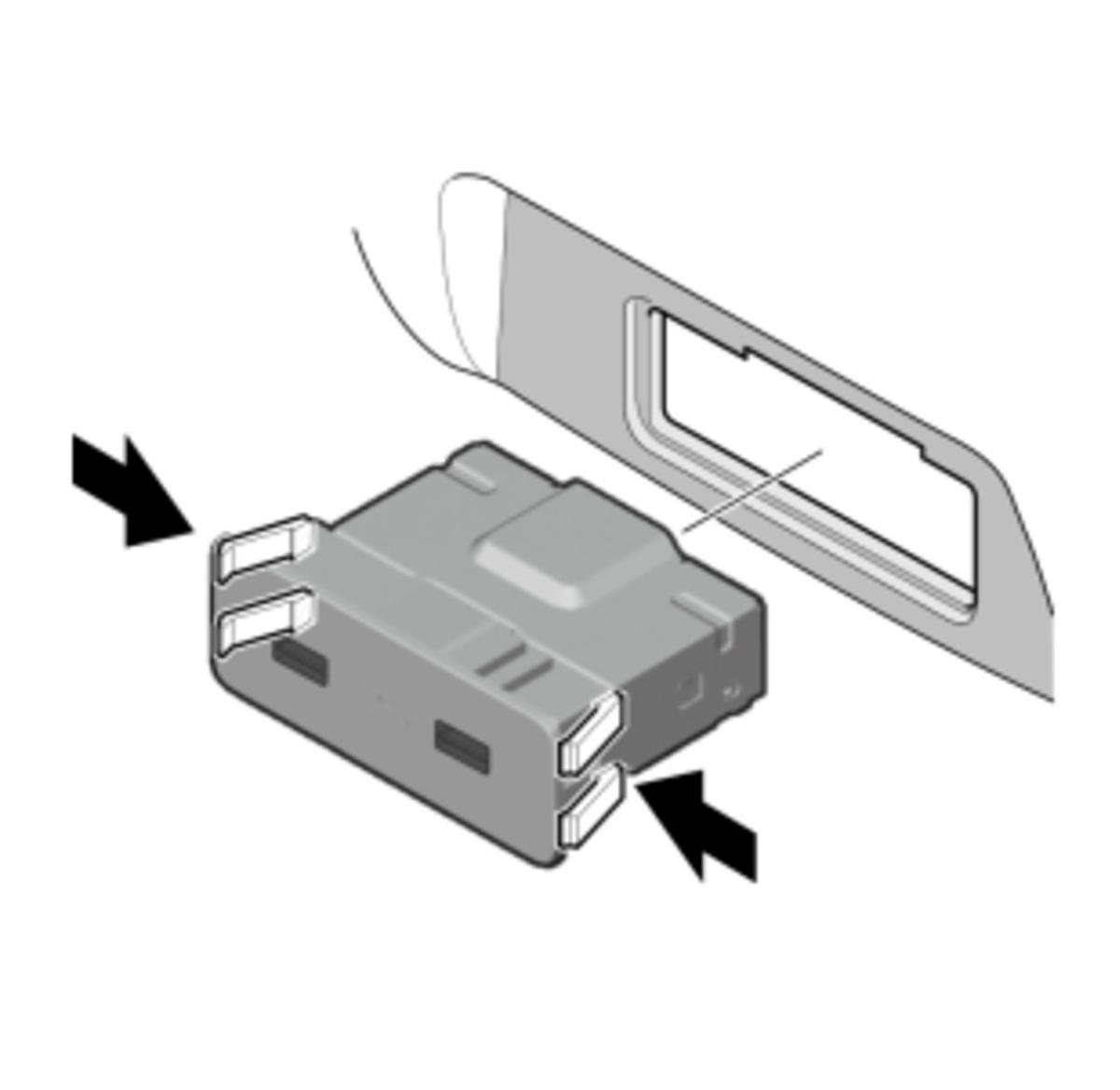

    Courtesy of HONDA, U.S.A., INC.

18. R.-

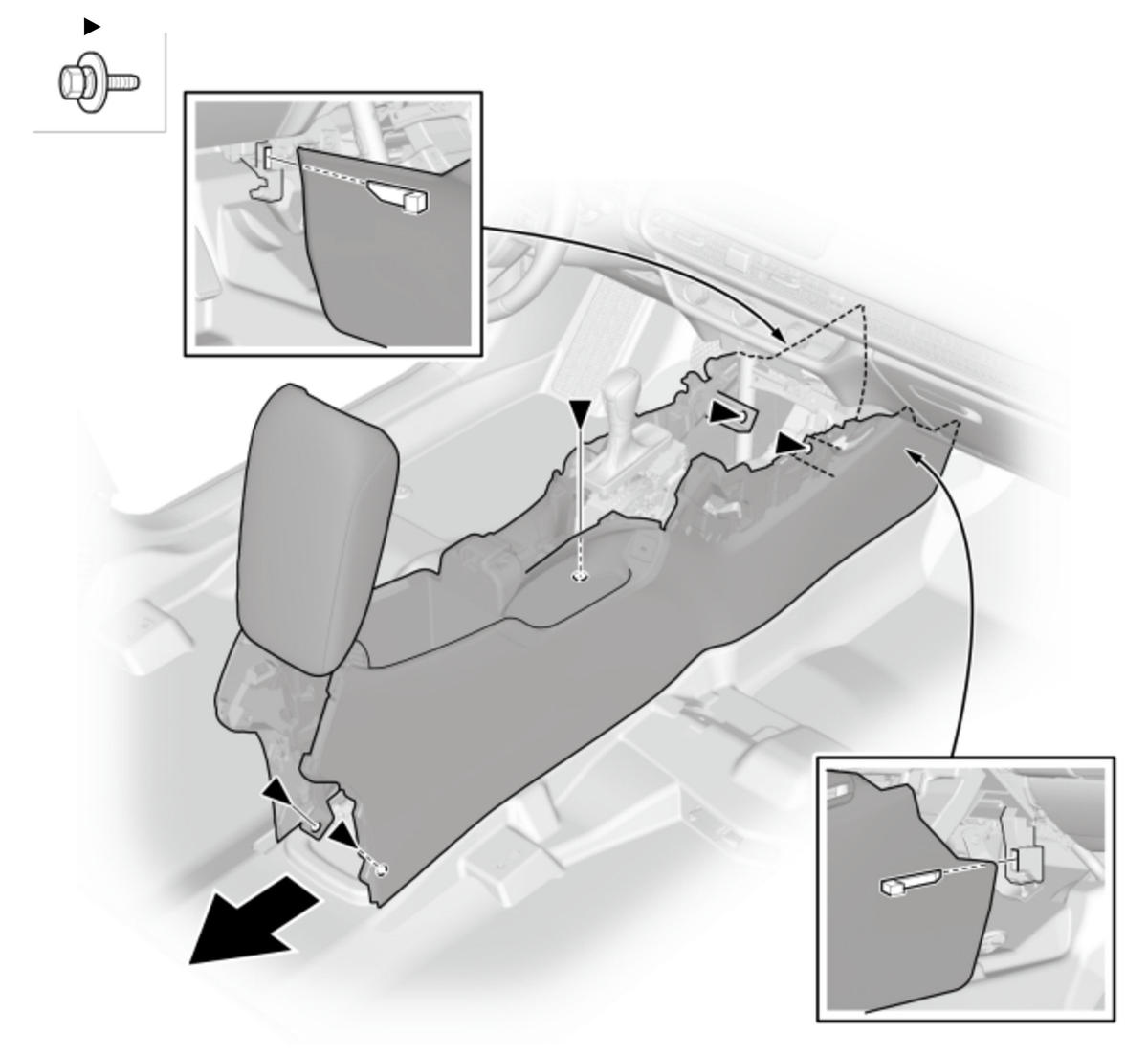

    Courtesy of HONDA, U.S.A., INC.

19. S.-

    Courtesy of HONDA, U.S.A., INC.

20. T.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure above.

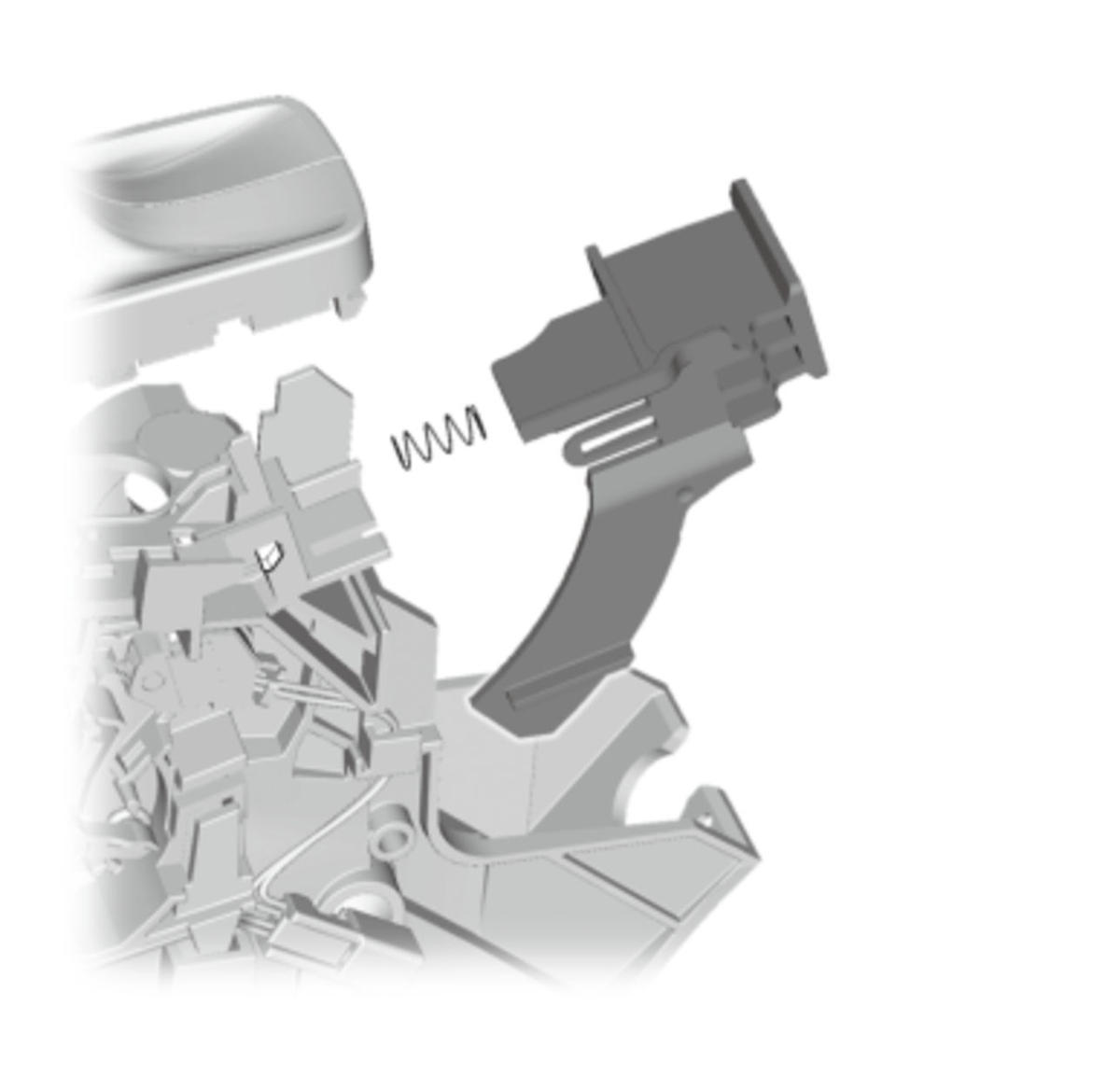

21. U.-

    Courtesy of HONDA, U.S.A., INC.

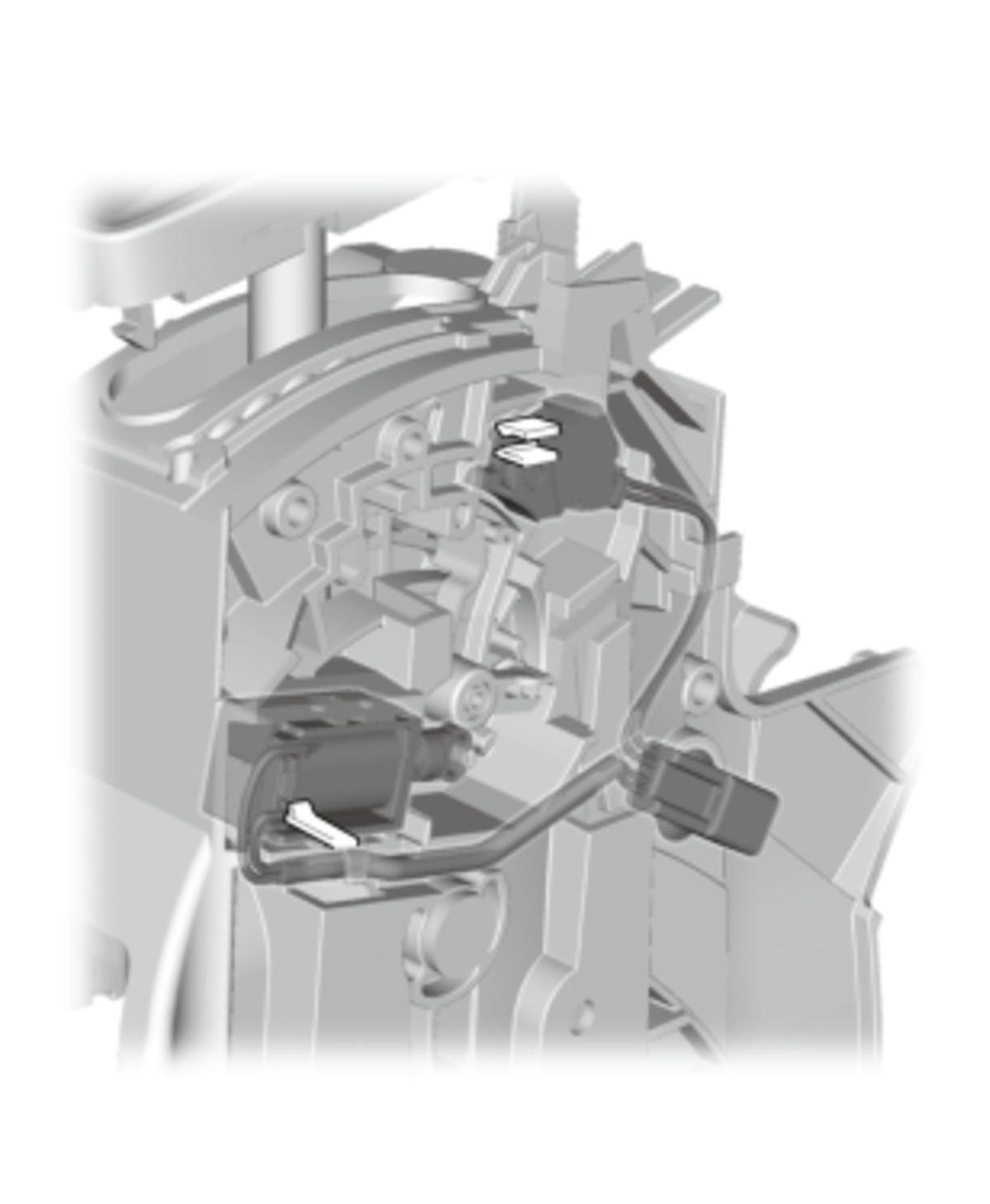

22. V.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    NOTE:

    Do not wipe off the special grease.

    • Refer to the figure above.
