Exploded View
For Replacement of components listed below, see Repair Procedure
| *1: USA and Canada models *2: Mexico models |

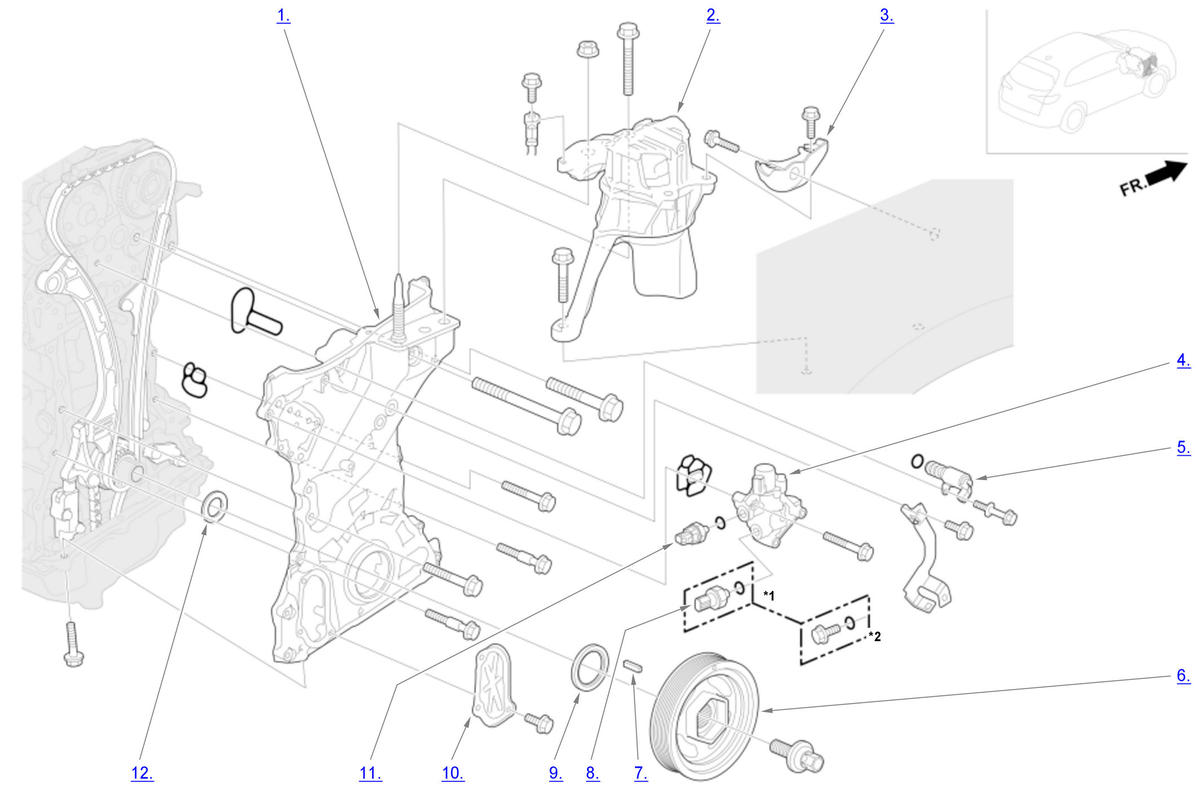

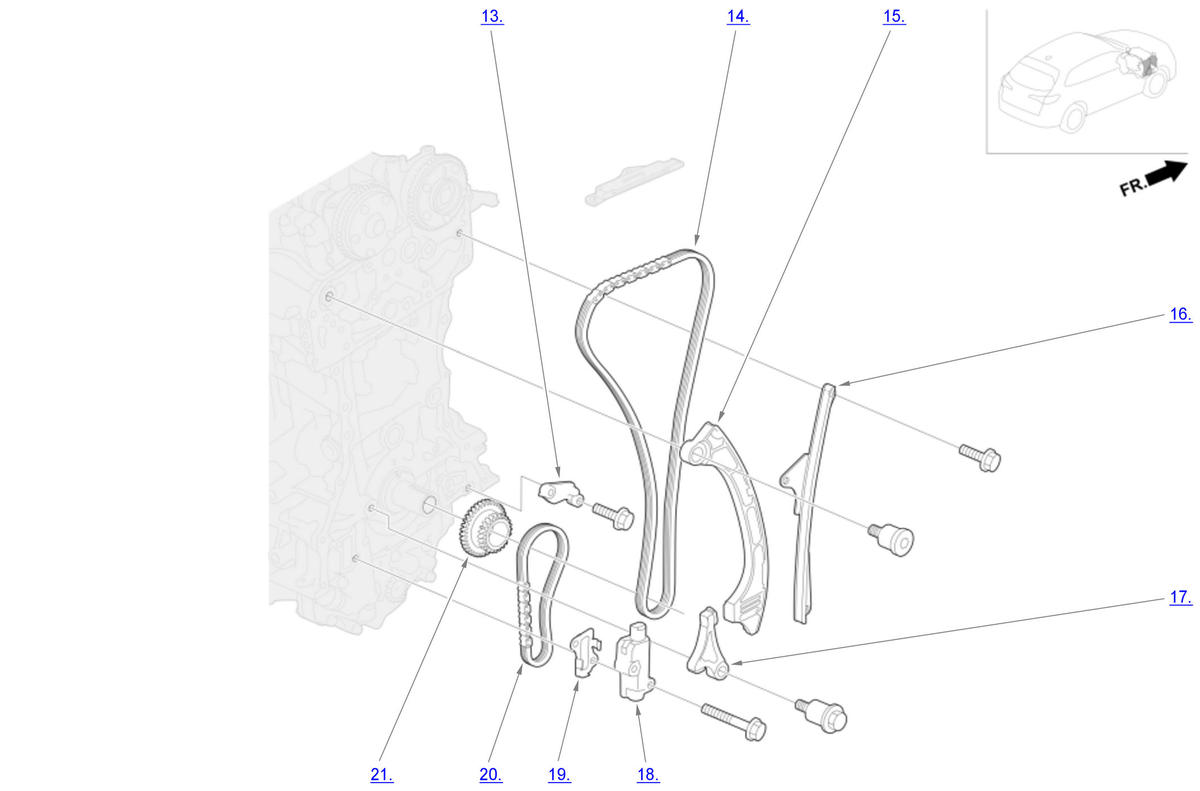

Chain Case/Cam Chain Area
| Component Name | Callout |
|---|---|
| Cam Chain Case | 1 |
| Side Engine Mount | 2 |
| Side Engine Mount Bracket | 3 |
| Rocker Arm Oil Control Valve | 4 |
| VTC Oil Control Solenoid Valve A | 5 |
| Crankshaft Pulley | 6 |
| Key | 7 |
| Rocker Arm Oil Pressure Sensor | 8 |
| Pulley End Crankshaft Oil Seal | 9 |
| Chain Case Cover | 10 |
| Engine Oil Pressure Sensor | 11 |
| Spacer | 12 |
| Cam Chain Oil Jet | 13 |
| Cam Chain | 14 |
| Cam Chain Tensioner Arm | 15 |
| Cam Chain Guide A | 16 |
| Cam Chain Tensioner Sub Arm | 17 |
| Cam Chain Auto-Tensioner | 18 |
| Cam Chain Auto-Tensioner Filter | 19 |
| Oil Pump Chain | 20 |
| Crankshaft Sprocket | 21 |
