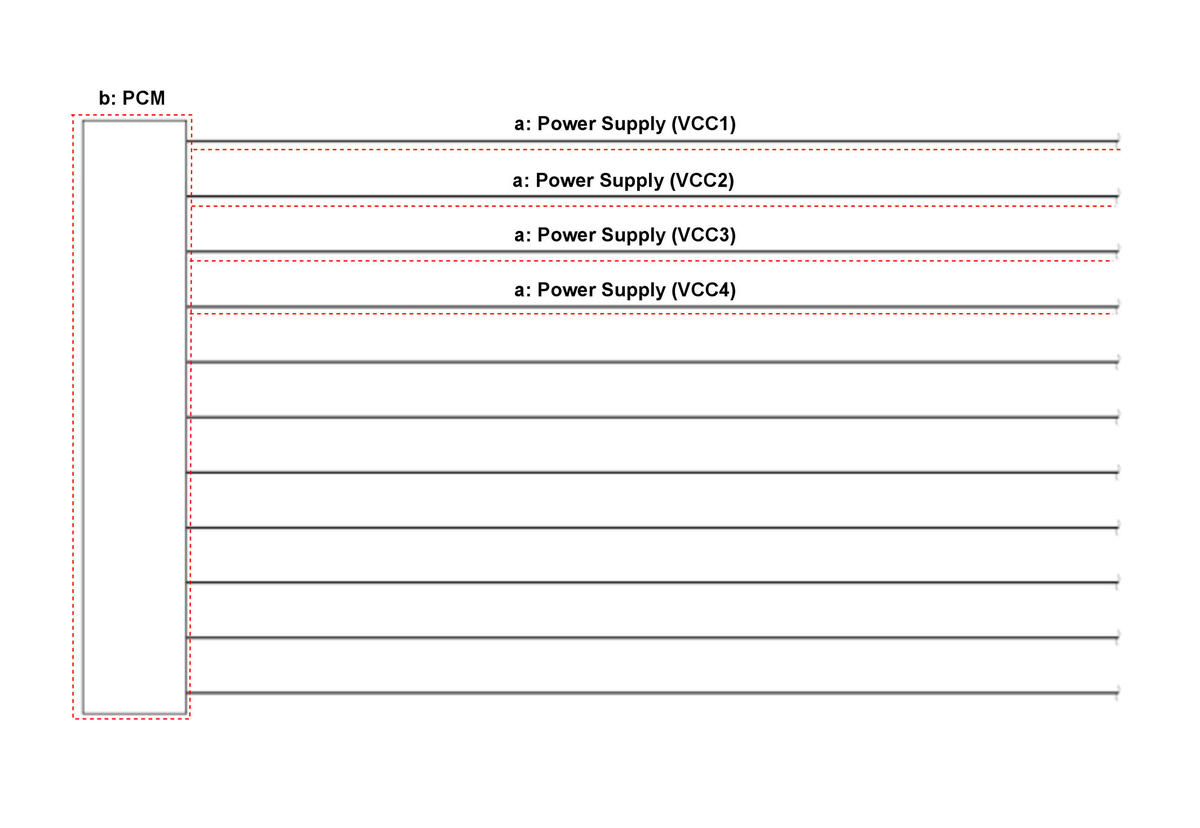

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | VCC1, VCC2, VCC3, VCC4 Shorted Wire Inspection |
| b | PCM | PCM Inspection |
| - | Components connected to VCC circuit | Components Connected to VCC1, VCC2, VCC3, VCC4 Circuit Inspection |
