Engine Block/Crankshaft Area: Notes

Special Tools Required

Image Description/Tool Number
GHH165442Courtesy of HONDA, U.S.A., INC.
 Driver Handle, 15 x 135L 07749-0010000

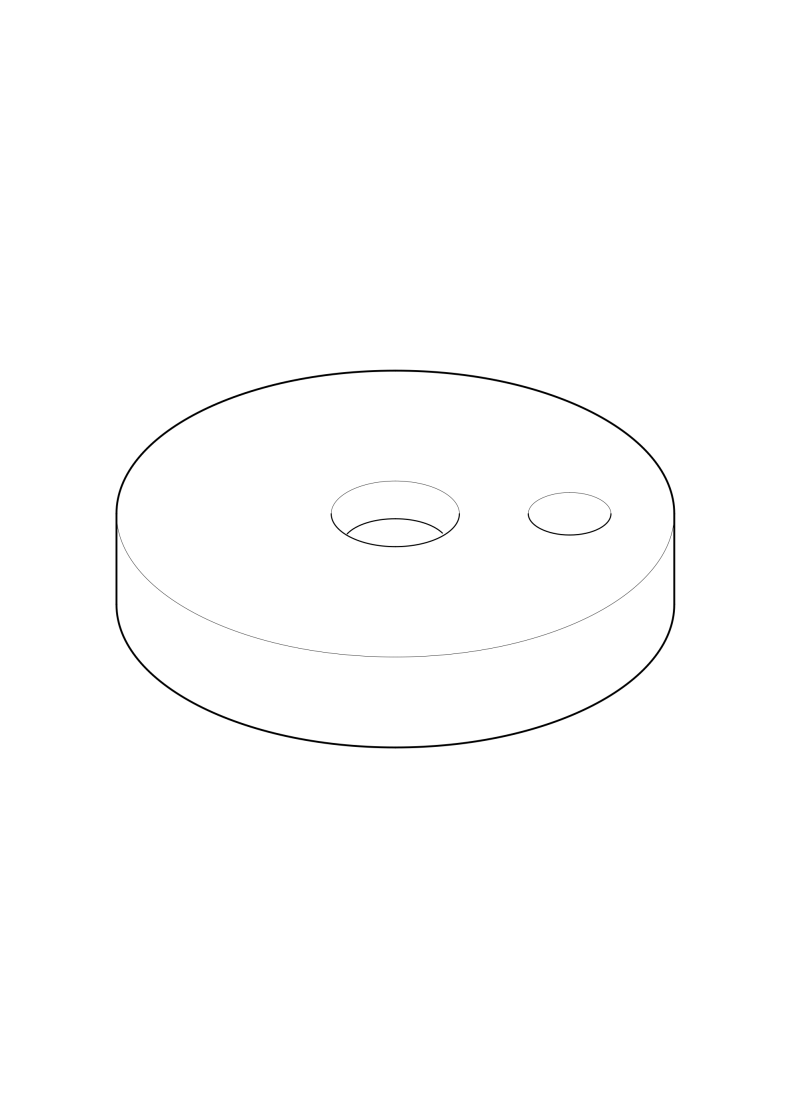

GHH576303Courtesy of HONDA, U.S.A., INC.
 Oil Seal Driver Attachment 07AAD-RCAA300
GHH168353Courtesy of HONDA, U.S.A., INC.
 Oil Seal Driver, 64 mm 070AD-RCAA100
