DTC Advanced Diagnostics: U0146 (AT): General Description

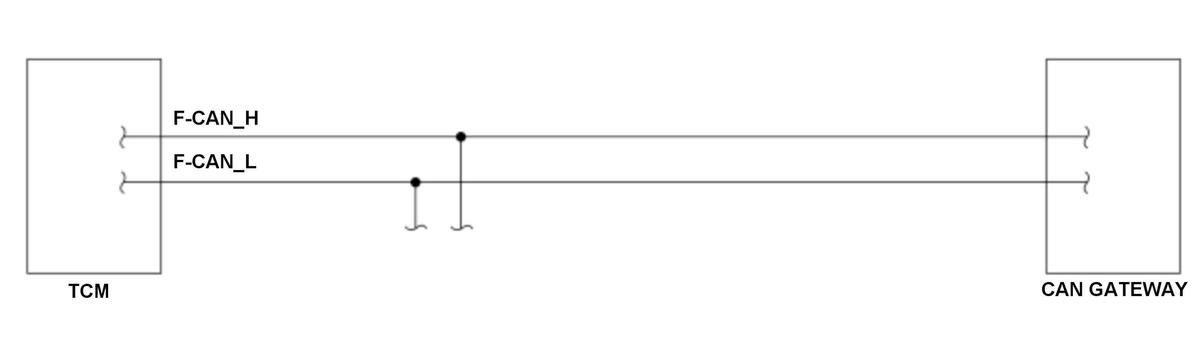

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN_H and F-CAN_L). When the information is not sent from the CAN gateway via the F-CAN lines and this condition continues for a specified time or when the information sent from the CAN gateway is abnormal and this condition continues for a specified cycle, the transmission control module (TCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL on, shift position indicator blinks |
