Relay Box Locations And Control Unit Locations (2016 2017 2018)
>>
Dashboard - 2/3
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

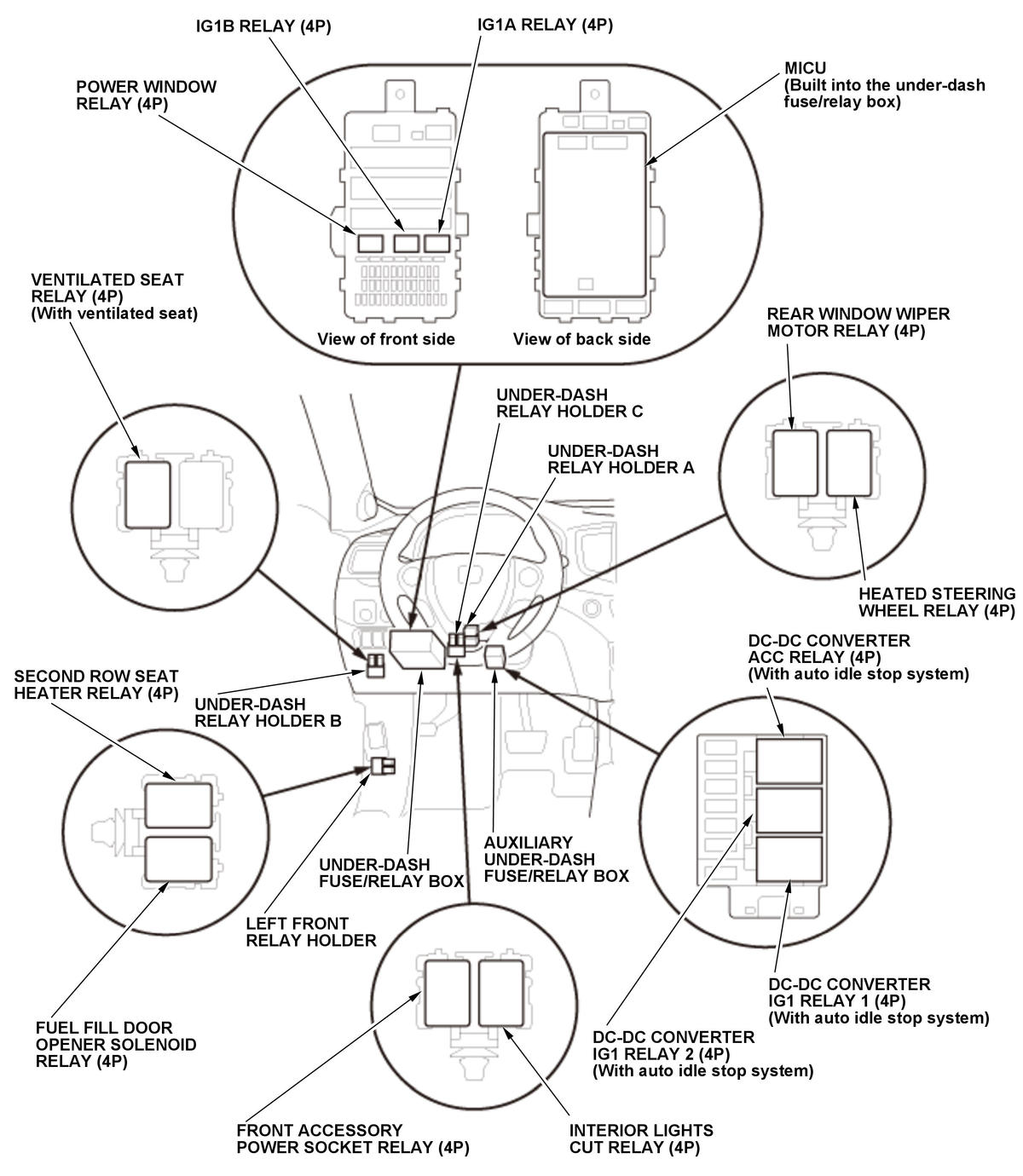

Dashboard - 2/3
Dashboard - 2/3 Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
