Removal and Installation

  1. Engine Cover - Remove
  2. EVAP Canister Purge Valve - Remove

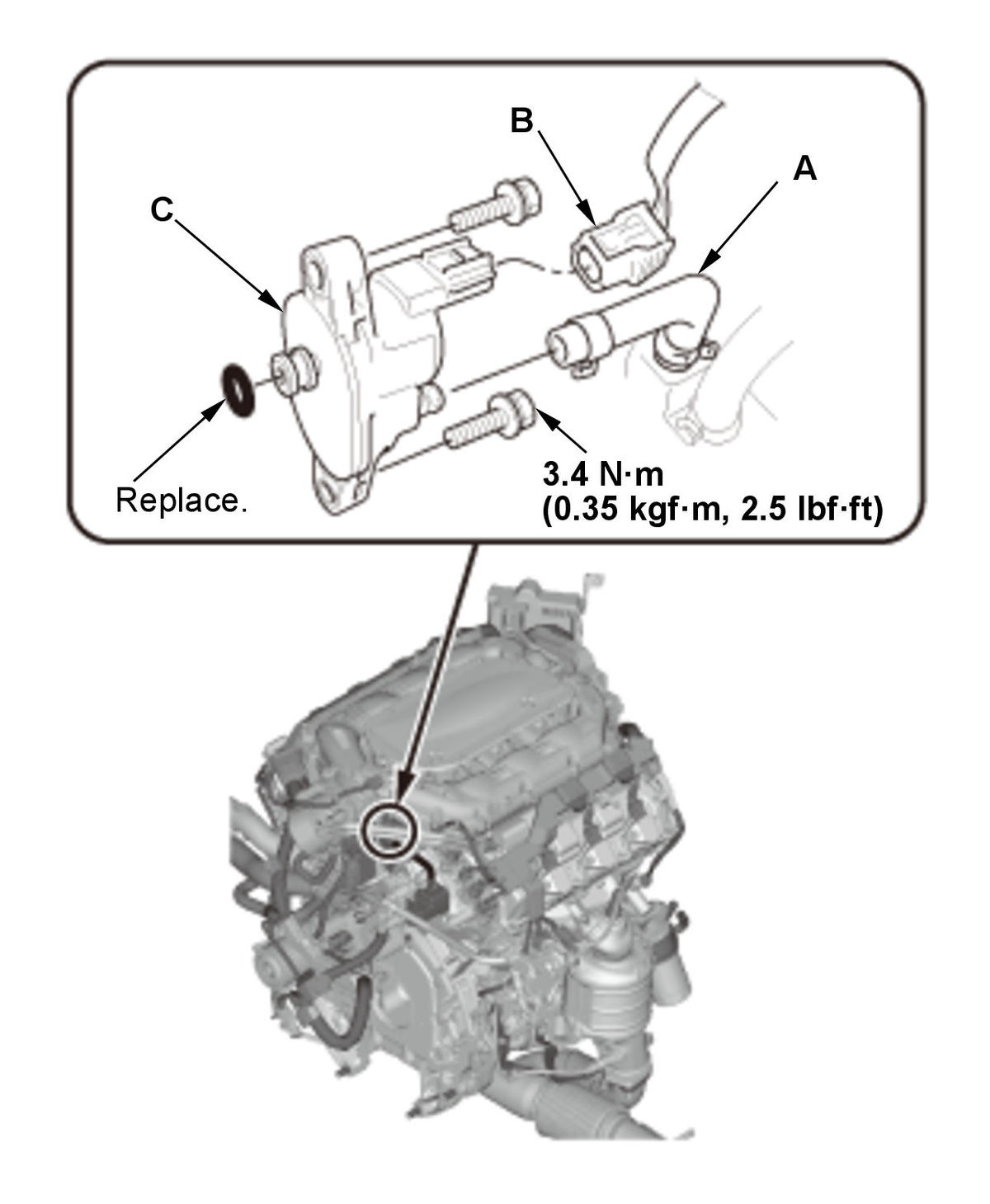

    GHH308477Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the hose (A) and the connector (B).

    2. Remove the EVAP canister purge valve (C).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new O-ring.
